Method

Fast PatchMatch Stereo Matching using Cross-Scale Cost Fusion for Autonomous Driving [CSPMS]


Submitted on 30 Jan. 2015 13:10 by
Ji Ho Cho (TU Wien)

Running time:6 s
Environment:4 cores @ 2.5 Ghz (C/C++)

Method Description:
To effectively handle slanted objects in the scene,
we improve PatchMatch Stereo (PMS) algorithm.
We
introduce census measure with Semi-Global
Matching –
which produces great result on real-world scene
from
the automobile – into the PMS algorithm in the
manner of a multi-scale fusion.
Parameters:
alpha = 0.3
P1=400
P2=1600
Latex Bibtex:
@inproceedings{jiho2015,
author = {Cho, Ji-Ho and Humenberger,
Martin},
booktitle = {IV},
title = {Fast PatchMatch Stereo
Matching Using Multi-Scale Cost Fusion for
Automotive Applications},
year = {2015},
}

Detailed Results

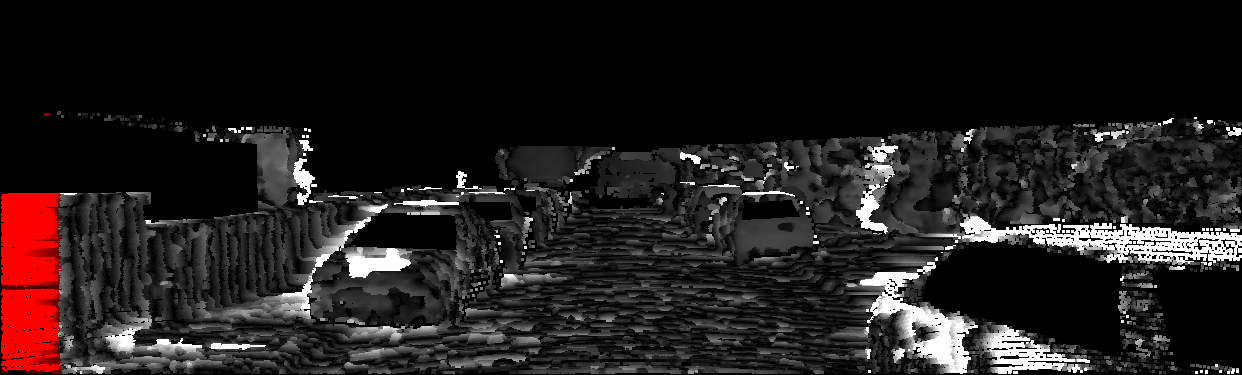

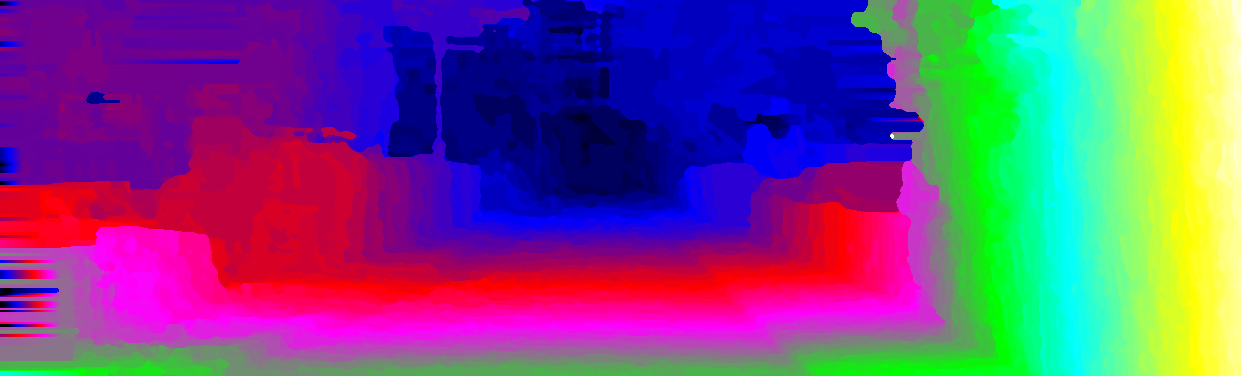

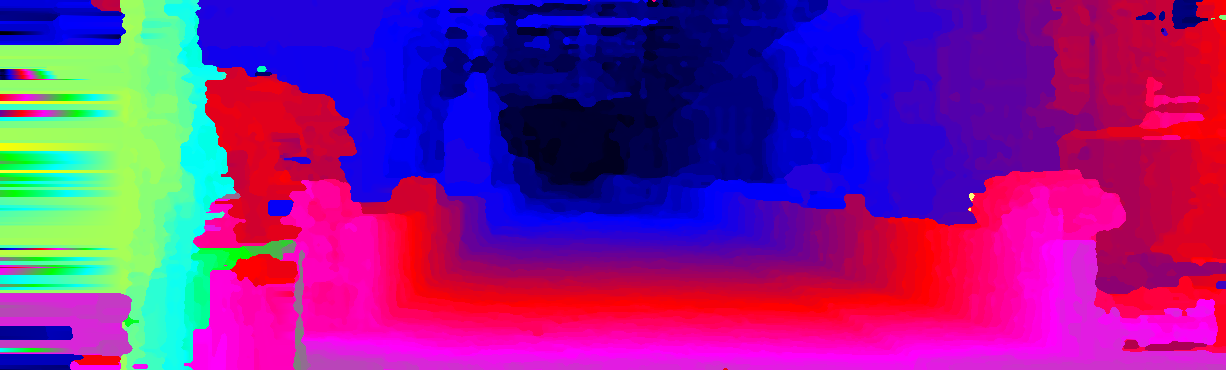

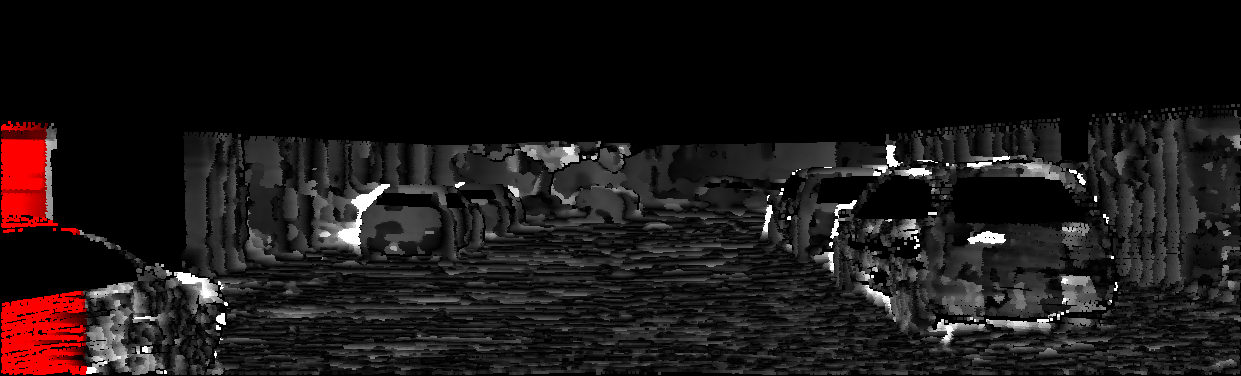

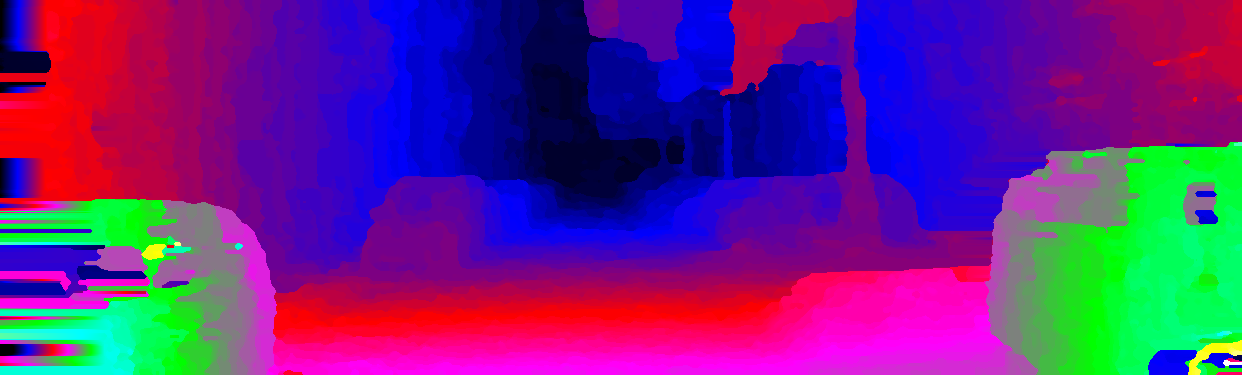

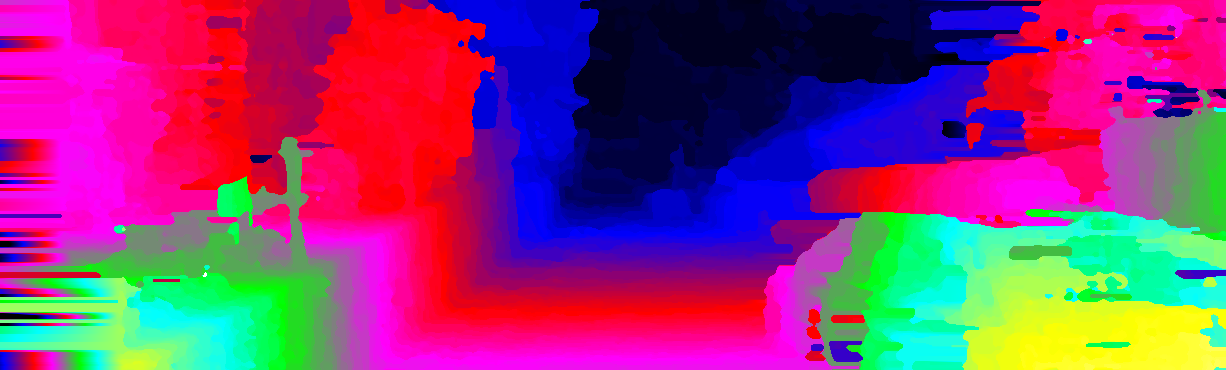

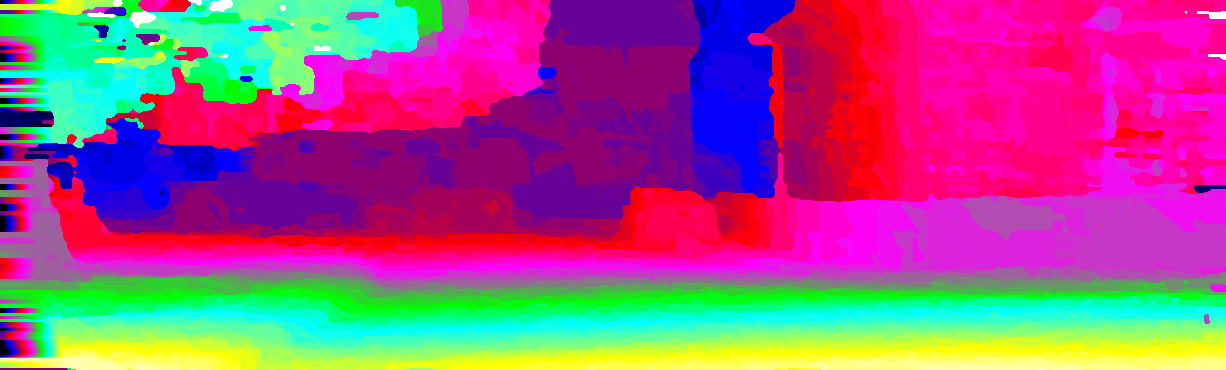

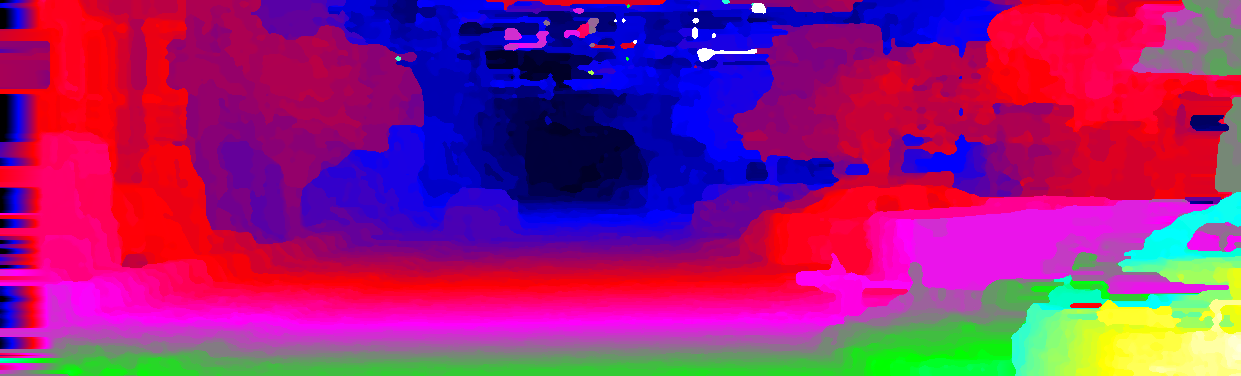

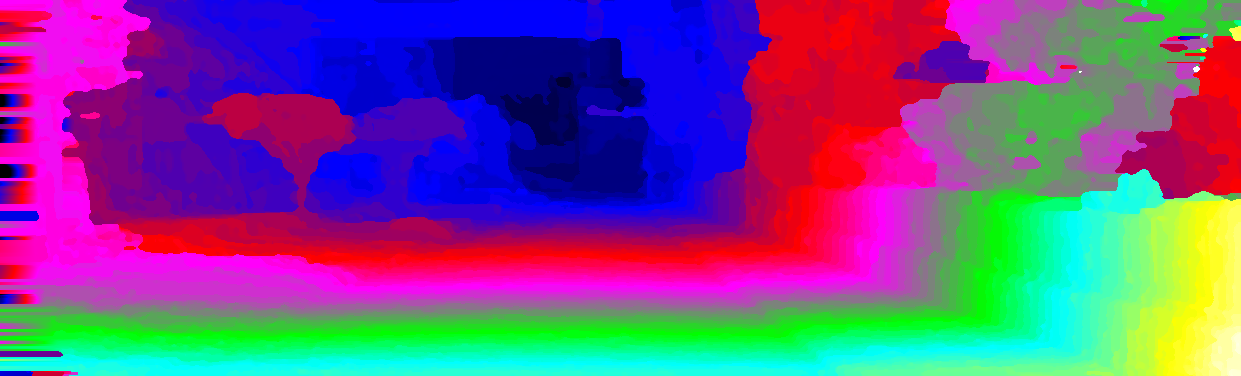

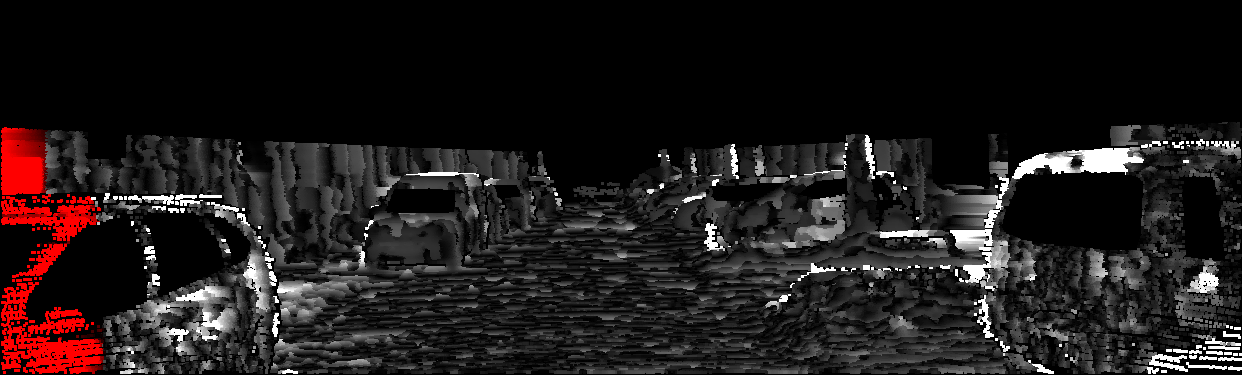

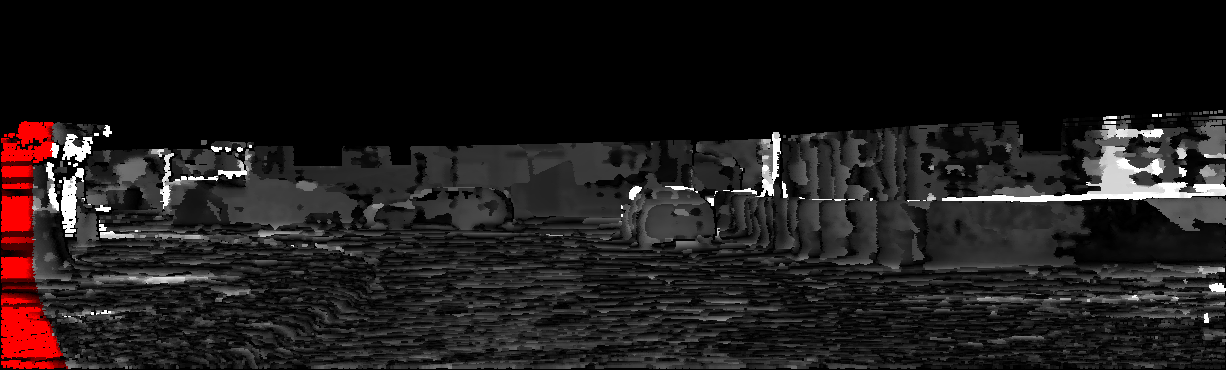

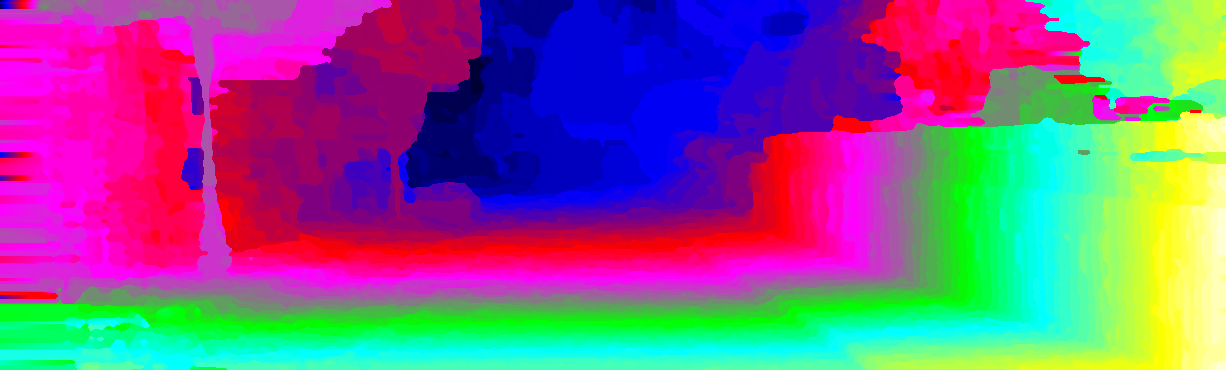

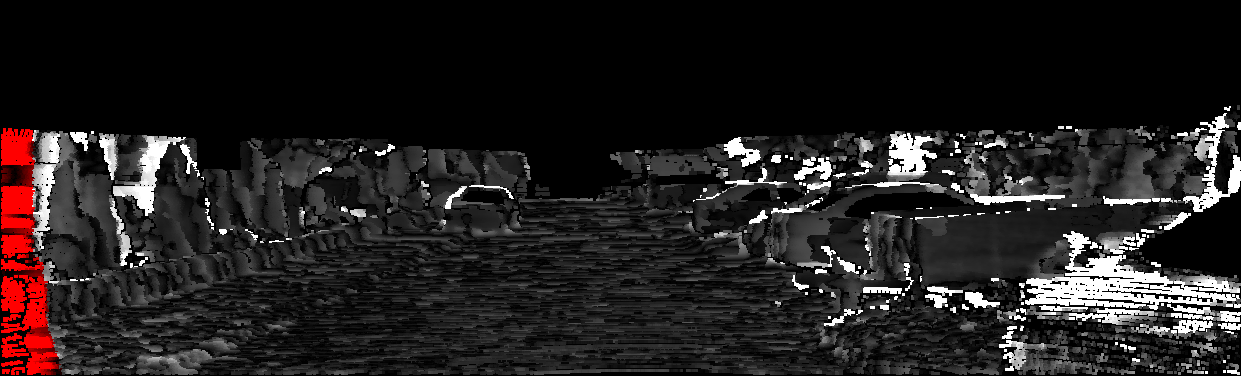

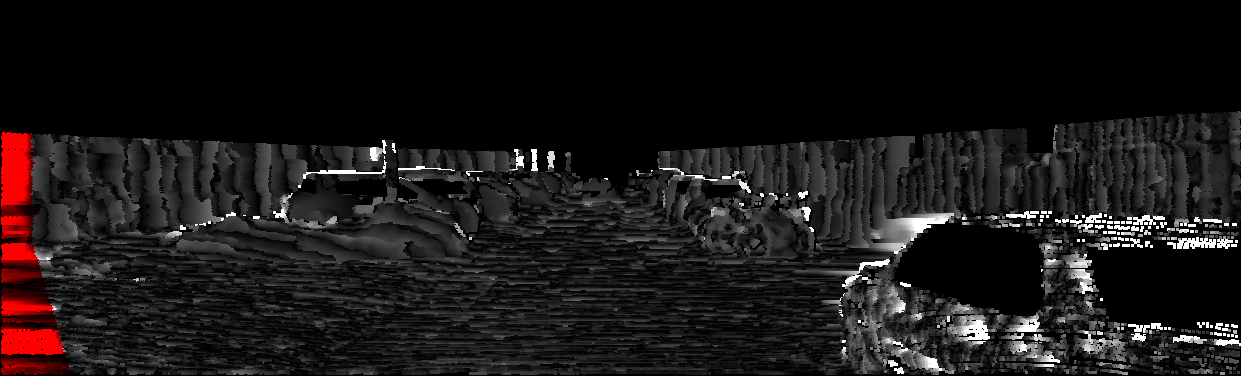

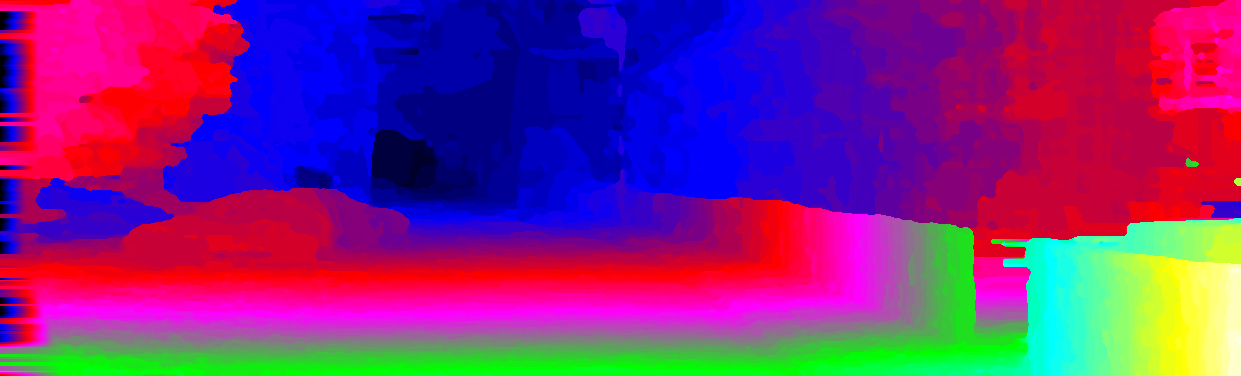

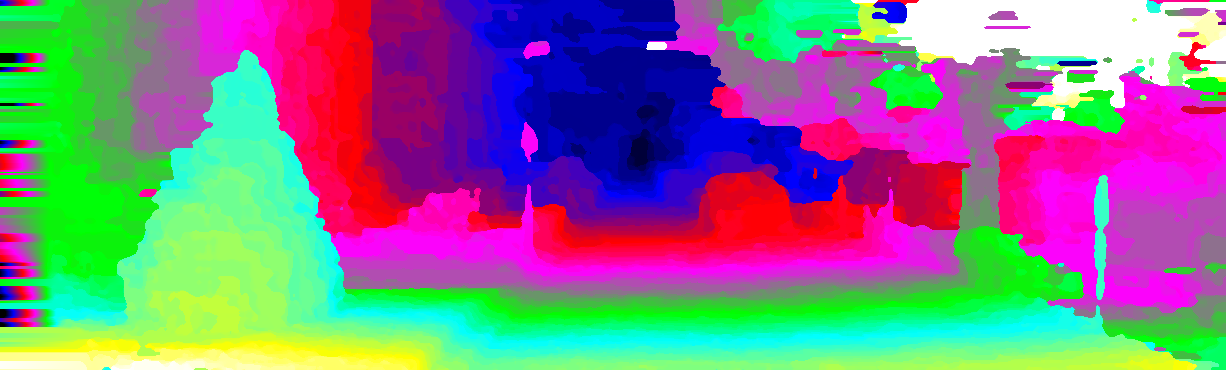

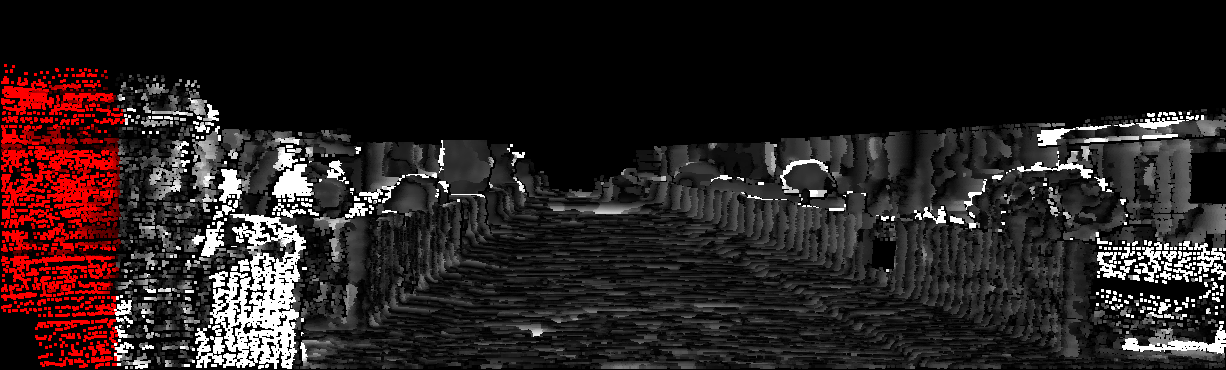

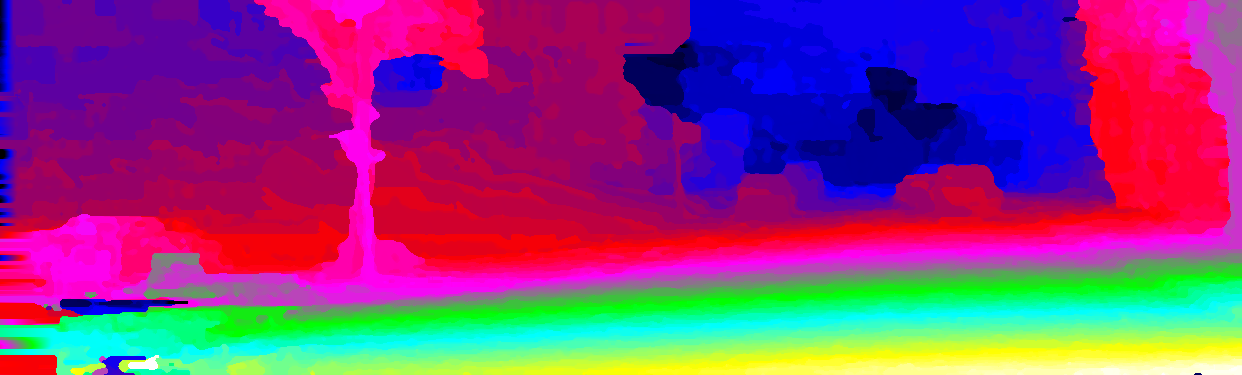

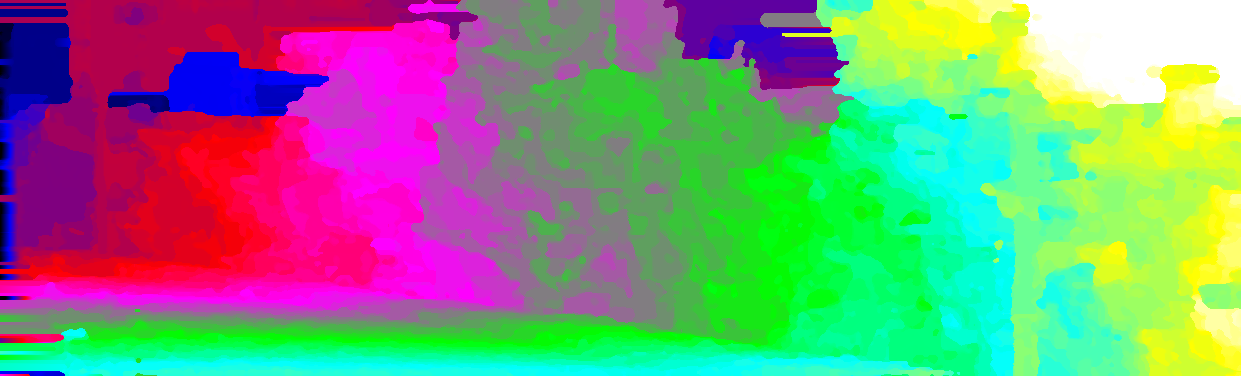

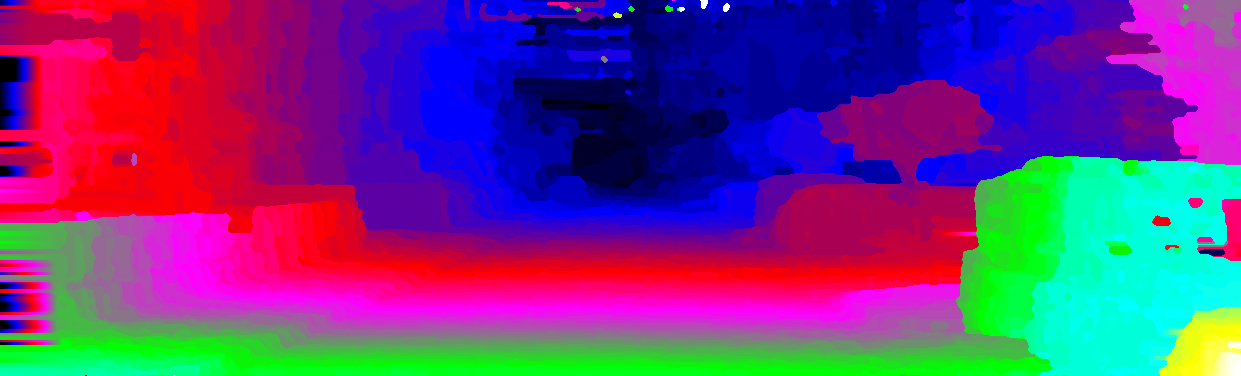

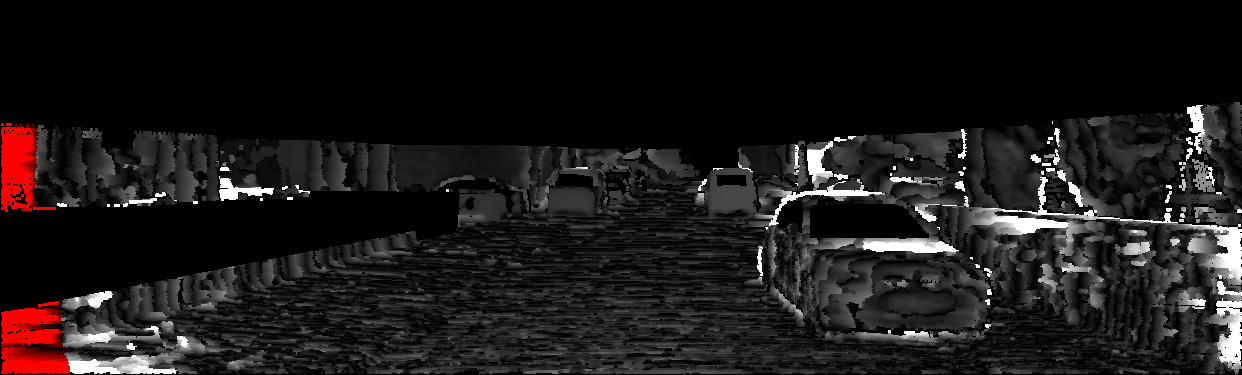

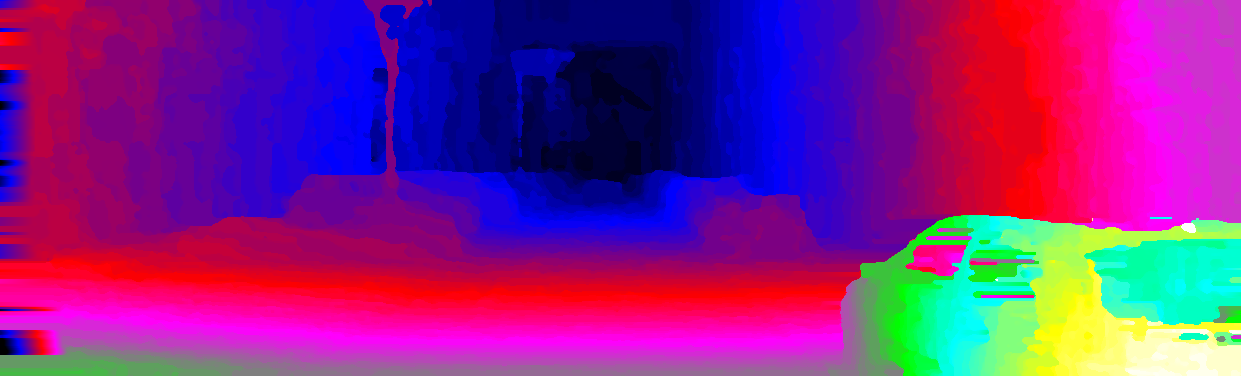

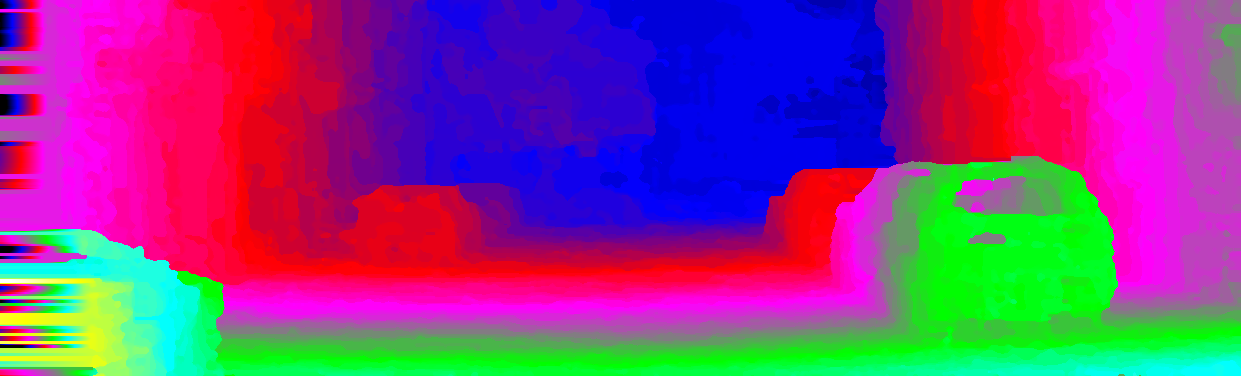

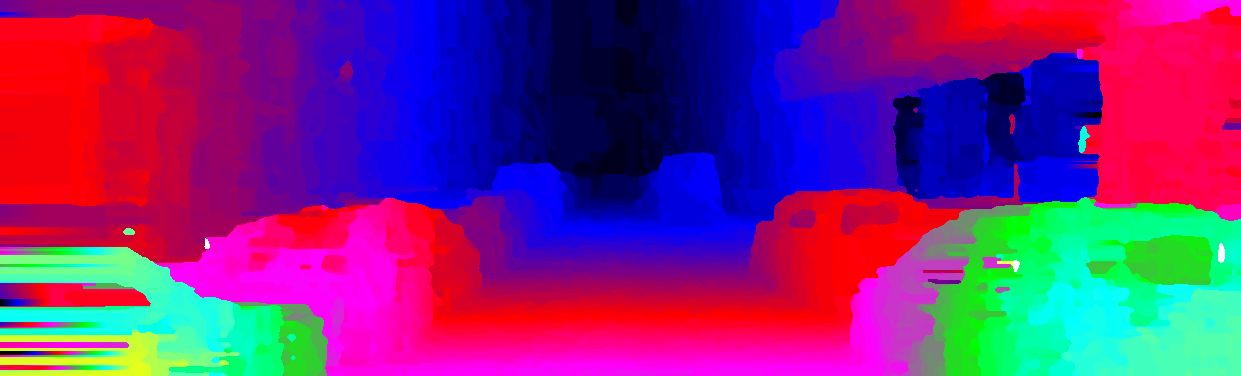

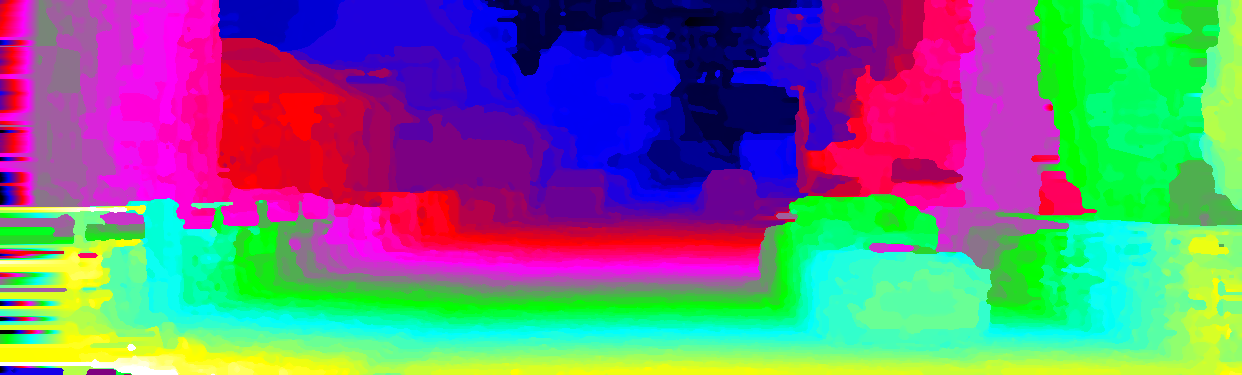

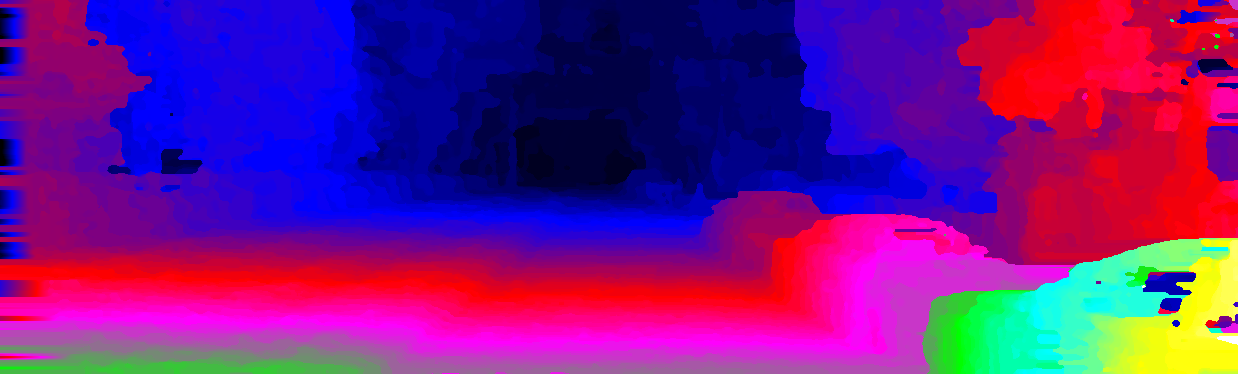

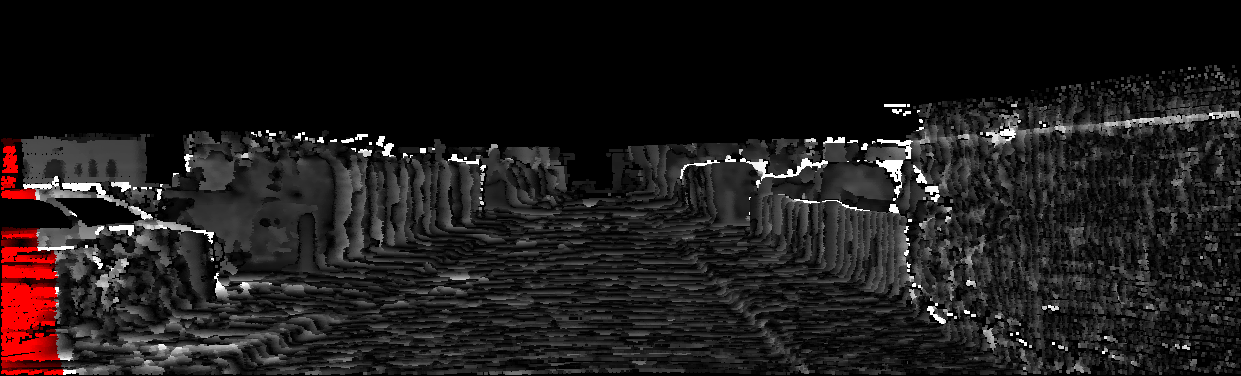

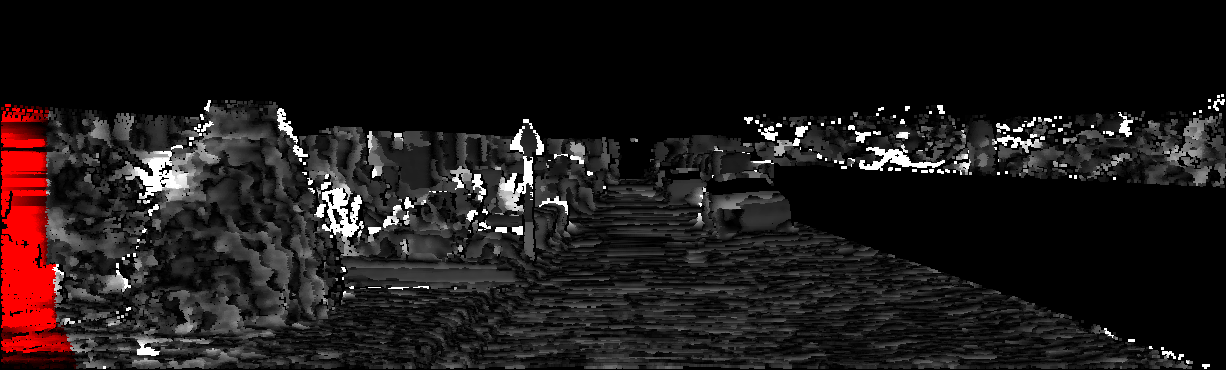

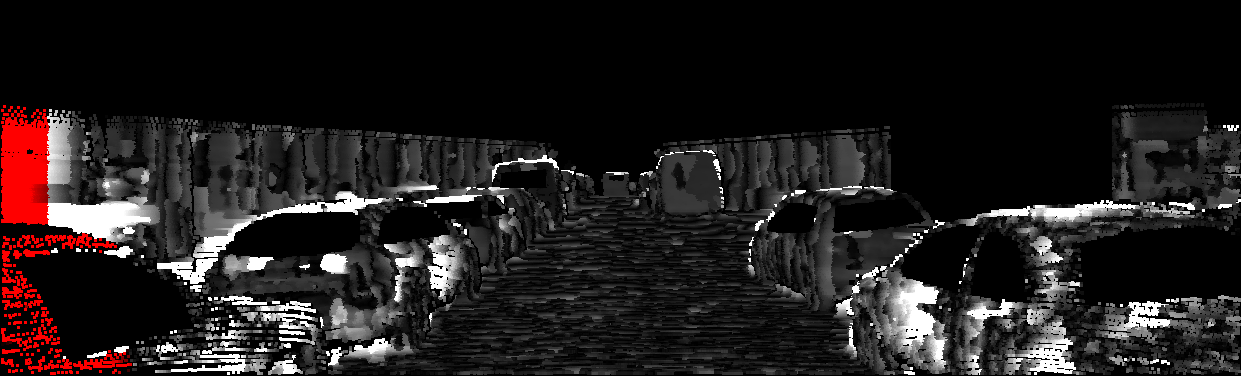

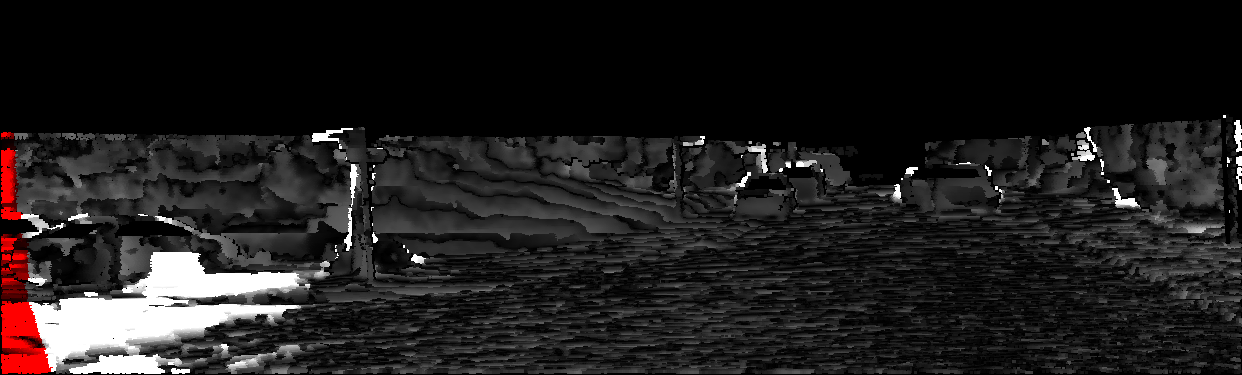

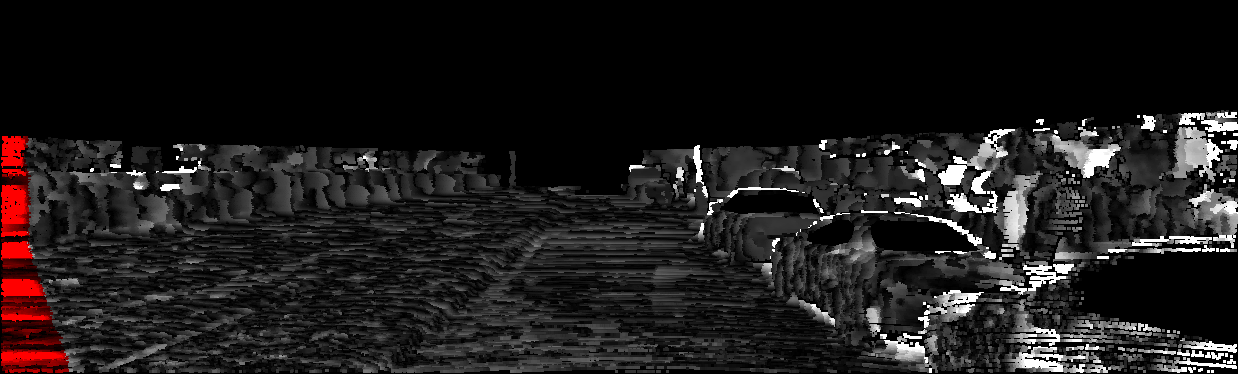

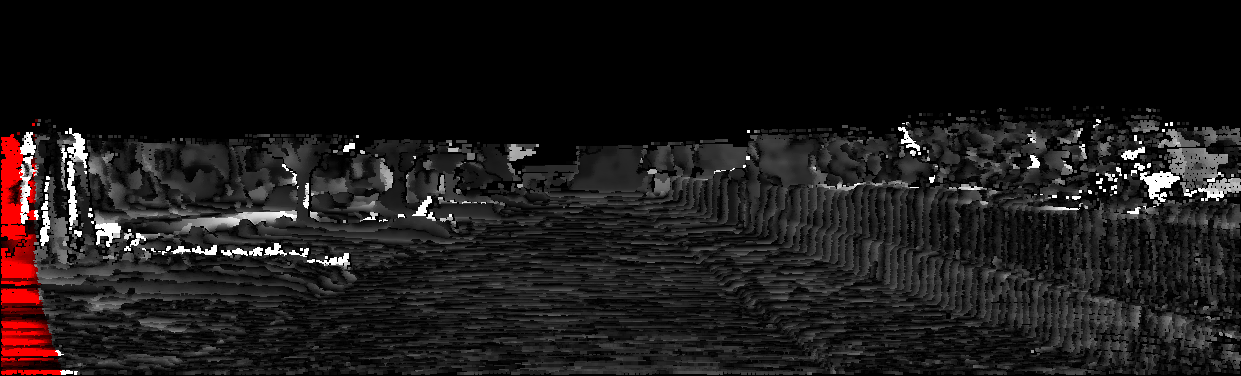

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.55 % 8.45 % 1.2 px 1.6 px
3 pixels 4.13 % 5.92 % 1.2 px 1.6 px
4 pixels 3.27 % 4.92 % 1.2 px 1.6 px
5 pixels 2.73 % 4.27 % 1.2 px 1.6 px
This table as LaTeX

Reflective Regions

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 29.72 % 33.37 % 4.5 px 6.0 px
3 pixels 22.41 % 26.24 % 4.5 px 6.0 px
4 pixels 18.59 % 22.41 % 4.5 px 6.0 px
5 pixels 16.12 % 19.85 % 4.5 px 6.0 px
This table as LaTeX

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.84 % 7.85 % 1.0 px 1.3 px
3 pixels 3.94 % 5.77 % 1.0 px 1.3 px
4 pixels 3.13 % 4.82 % 1.0 px 1.3 px
5 pixels 2.41 % 3.99 % 1.0 px 1.3 px
This table as LaTeX





Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.81 % 8.90 % 1.0 px 1.5 px
3 pixels 3.16 % 6.01 % 1.0 px 1.5 px
4 pixels 2.42 % 4.95 % 1.0 px 1.5 px
5 pixels 2.06 % 4.30 % 1.0 px 1.5 px
This table as LaTeX





Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.72 % 8.23 % 1.0 px 1.3 px
3 pixels 4.38 % 5.77 % 1.0 px 1.3 px
4 pixels 3.27 % 4.52 % 1.0 px 1.3 px
5 pixels 2.63 % 3.76 % 1.0 px 1.3 px
This table as LaTeX





Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.81 % 7.18 % 0.8 px 1.3 px
3 pixels 2.05 % 4.41 % 0.8 px 1.3 px
4 pixels 1.23 % 3.31 % 0.8 px 1.3 px
5 pixels 0.93 % 2.77 % 0.8 px 1.3 px
This table as LaTeX





Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.31 % 5.96 % 0.9 px 1.2 px
3 pixels 2.53 % 4.08 % 0.9 px 1.2 px
4 pixels 2.09 % 3.52 % 0.9 px 1.2 px
5 pixels 1.26 % 2.62 % 0.9 px 1.2 px
This table as LaTeX





Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.02 % 3.42 % 0.8 px 1.0 px
3 pixels 1.15 % 2.42 % 0.8 px 1.0 px
4 pixels 0.90 % 2.07 % 0.8 px 1.0 px
5 pixels 0.82 % 1.91 % 0.8 px 1.0 px
This table as LaTeX





Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.24 % 10.55 % 1.5 px 1.9 px
3 pixels 5.33 % 7.56 % 1.5 px 1.9 px
4 pixels 4.28 % 6.24 % 1.5 px 1.9 px
5 pixels 3.73 % 5.53 % 1.5 px 1.9 px
This table as LaTeX





Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.75 % 10.91 % 1.4 px 2.0 px
3 pixels 4.45 % 6.52 % 1.4 px 2.0 px
4 pixels 3.13 % 5.02 % 1.4 px 2.0 px
5 pixels 2.62 % 4.35 % 1.4 px 2.0 px
This table as LaTeX





Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.07 % 4.49 % 0.8 px 1.0 px
3 pixels 1.73 % 2.91 % 0.8 px 1.0 px
4 pixels 1.19 % 2.22 % 0.8 px 1.0 px
5 pixels 0.94 % 1.88 % 0.8 px 1.0 px
This table as LaTeX





Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 12.58 % 14.74 % 1.5 px 1.9 px
3 pixels 8.51 % 10.74 % 1.5 px 1.9 px
4 pixels 6.24 % 8.44 % 1.5 px 1.9 px
5 pixels 4.87 % 6.96 % 1.5 px 1.9 px
This table as LaTeX





Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.12 % 5.51 % 0.9 px 1.1 px
3 pixels 1.77 % 3.01 % 0.9 px 1.1 px
4 pixels 1.20 % 2.31 % 0.9 px 1.1 px
5 pixels 0.93 % 1.88 % 0.9 px 1.1 px
This table as LaTeX





Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.41 % 13.60 % 1.7 px 2.4 px
3 pixels 6.33 % 9.46 % 1.7 px 2.4 px
4 pixels 5.08 % 8.04 % 1.7 px 2.4 px
5 pixels 4.31 % 7.09 % 1.7 px 2.4 px
This table as LaTeX





Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.34 % 9.55 % 1.7 px 2.2 px
3 pixels 5.12 % 7.17 % 1.7 px 2.2 px
4 pixels 4.40 % 6.29 % 1.7 px 2.2 px
5 pixels 4.08 % 5.83 % 1.7 px 2.2 px
This table as LaTeX





Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.62 % 8.95 % 1.5 px 1.7 px
3 pixels 5.48 % 6.79 % 1.5 px 1.7 px
4 pixels 4.62 % 5.90 % 1.5 px 1.7 px
5 pixels 4.17 % 5.39 % 1.5 px 1.7 px
This table as LaTeX





Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.84 % 4.82 % 0.9 px 0.9 px
3 pixels 1.82 % 2.53 % 0.9 px 0.9 px
4 pixels 1.36 % 1.90 % 0.9 px 0.9 px
5 pixels 1.22 % 1.62 % 0.9 px 0.9 px
This table as LaTeX





Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.13 % 7.52 % 1.0 px 1.1 px
3 pixels 3.95 % 5.05 % 1.0 px 1.1 px
4 pixels 2.60 % 3.55 % 1.0 px 1.1 px
5 pixels 1.93 % 2.80 % 1.0 px 1.1 px
This table as LaTeX





Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.11 % 5.11 % 0.9 px 1.0 px
3 pixels 1.88 % 2.77 % 0.9 px 1.0 px
4 pixels 1.21 % 1.95 % 0.9 px 1.0 px
5 pixels 0.89 % 1.54 % 0.9 px 1.0 px
This table as LaTeX





Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.90 % 8.39 % 1.3 px 1.6 px
3 pixels 5.29 % 6.65 % 1.3 px 1.6 px
4 pixels 4.57 % 5.86 % 1.3 px 1.6 px
5 pixels 3.81 % 5.03 % 1.3 px 1.6 px
This table as LaTeX





Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.86 % 7.83 % 1.2 px 1.3 px
3 pixels 5.63 % 6.46 % 1.2 px 1.3 px
4 pixels 5.05 % 5.81 % 1.2 px 1.3 px
5 pixels 4.56 % 5.24 % 1.2 px 1.3 px
This table as LaTeX





Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.52 % 5.32 % 0.9 px 1.1 px
3 pixels 1.88 % 3.31 % 0.9 px 1.1 px
4 pixels 1.29 % 2.60 % 0.9 px 1.1 px
5 pixels 0.96 % 2.15 % 0.9 px 1.1 px
This table as LaTeX
