Method

Fast Cost-Volume Filtering [CostFilter]
http://www.ims.tuwien.ac.at/research/costFilter/

Submitted on 16 Feb. 2012 18:18 by
Andreas Geiger (MPI Tübingen)

Running time:4 min
Environment:1 core @ 2.5 Ghz (Matlab)

Method Description:
Implements a local method, i.e. winner-takes-all
solution, but prior to disparity selection smoothes
the cost volume using a very efficient edge
preserving filter (approximation to bilateral
filter).
Parameters:
r = 9;
eps = 0.0001;
thresColor = 7/255;
thresGrad = 2/255;
gamma = 0.11;
threshBorder = 3/255;
gamma_c = 0.1;
gamma_d = 9;
r_median = 19;
numDisp = 128;
Latex Bibtex:
@inproceedings{Rhemann11,
author = {Christoph Rhemann and Asmaa Hosni and
Michael Bleyer and Carsten Rother and Margrit
Gelautz},
title = {Fast Cost-Volume Filtering for Visual
Correspondence and Beyond},
booktitle = {CVPR},
year = {2011}
}

Detailed Results

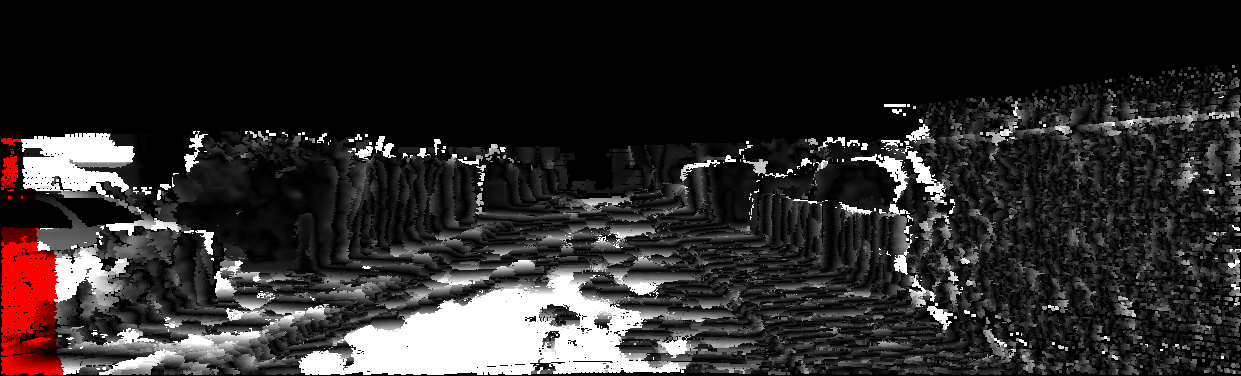

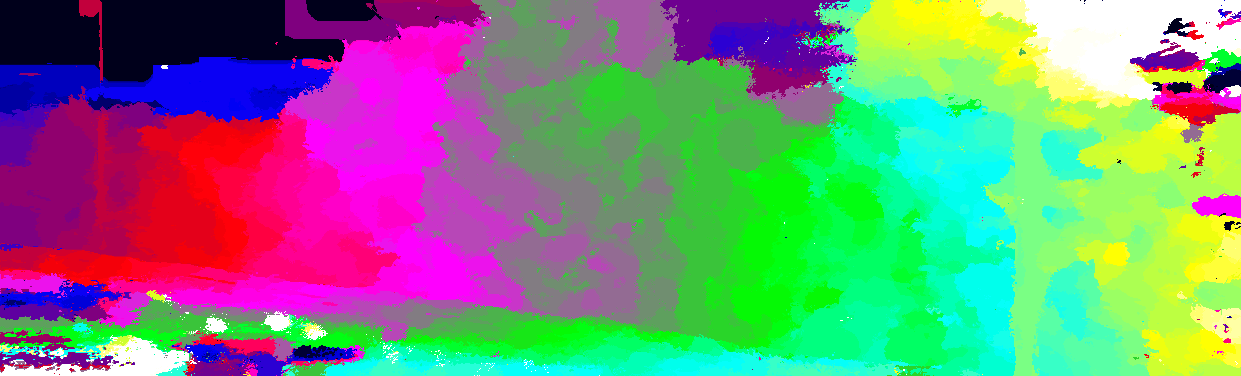

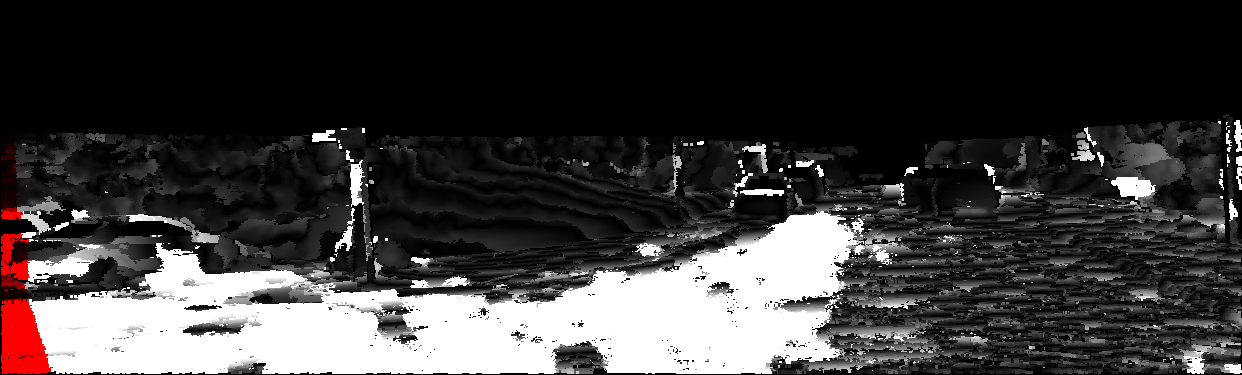

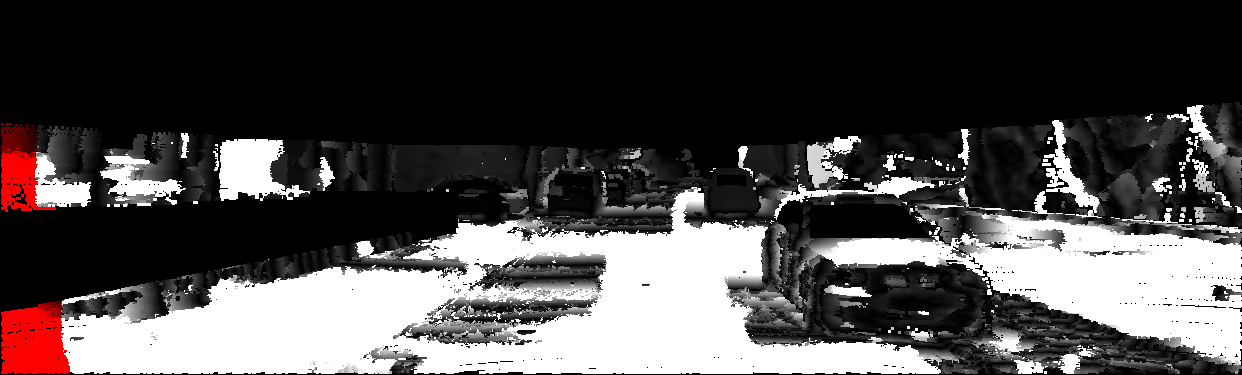

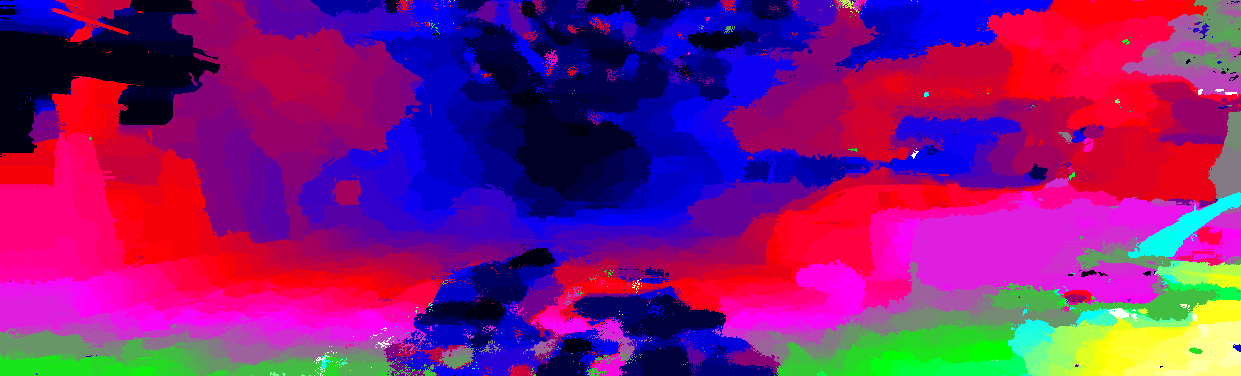

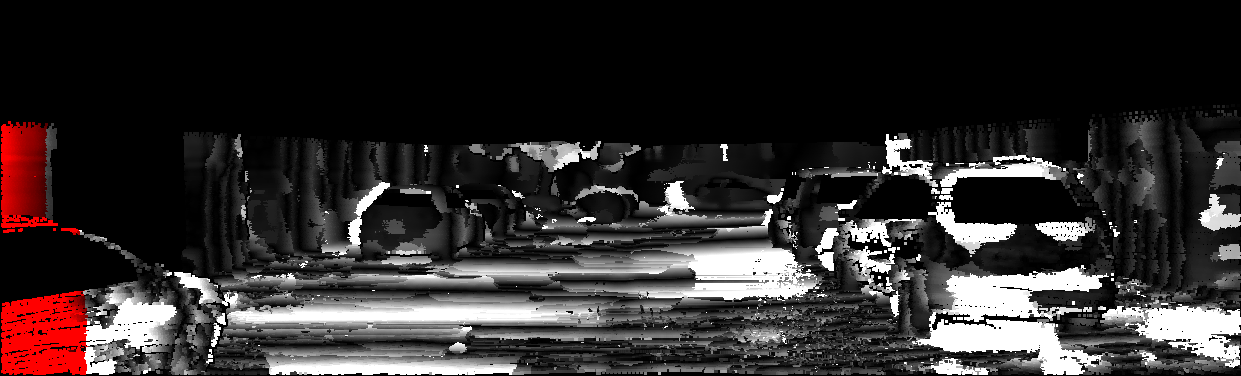

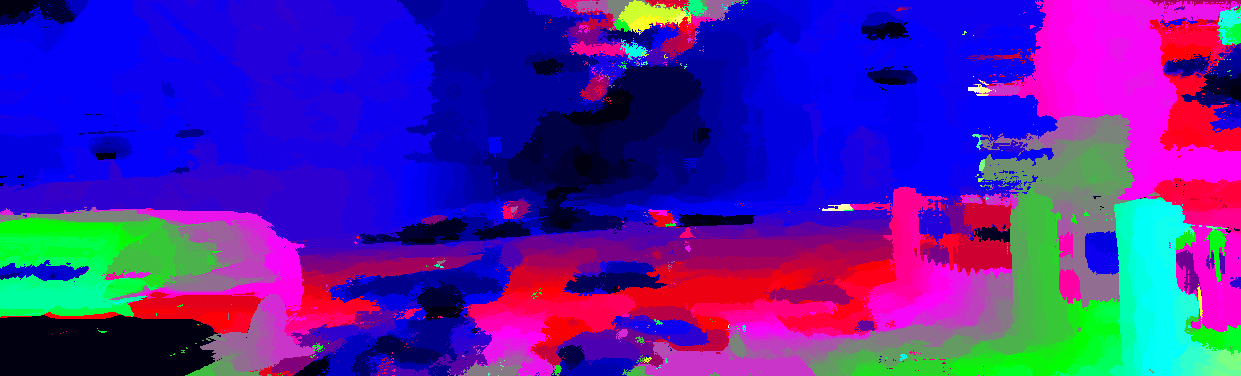

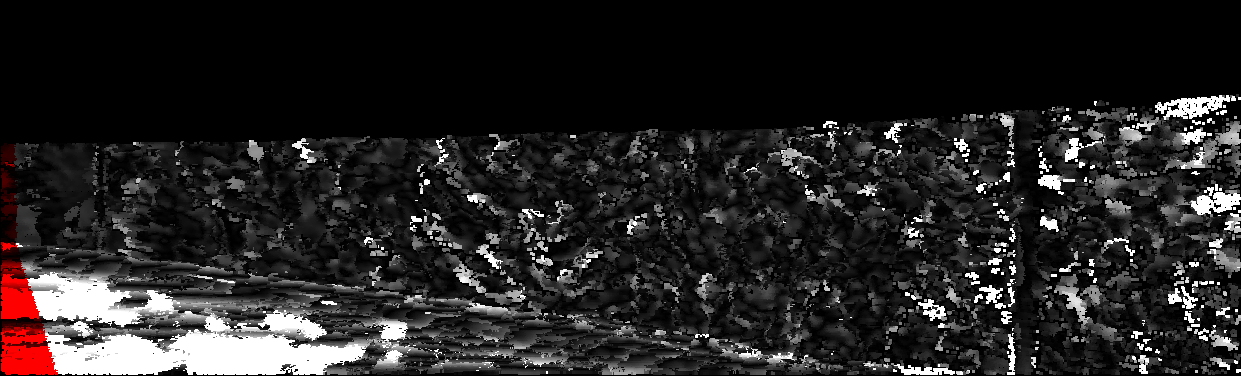

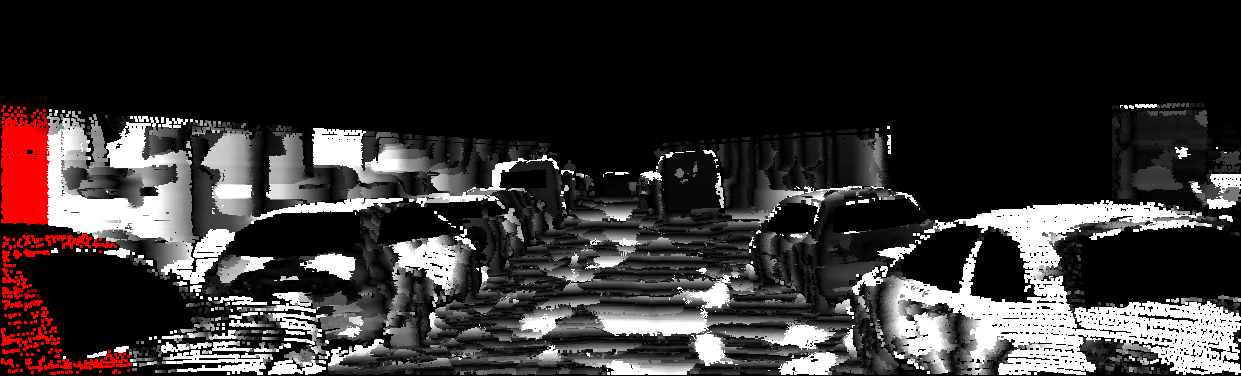

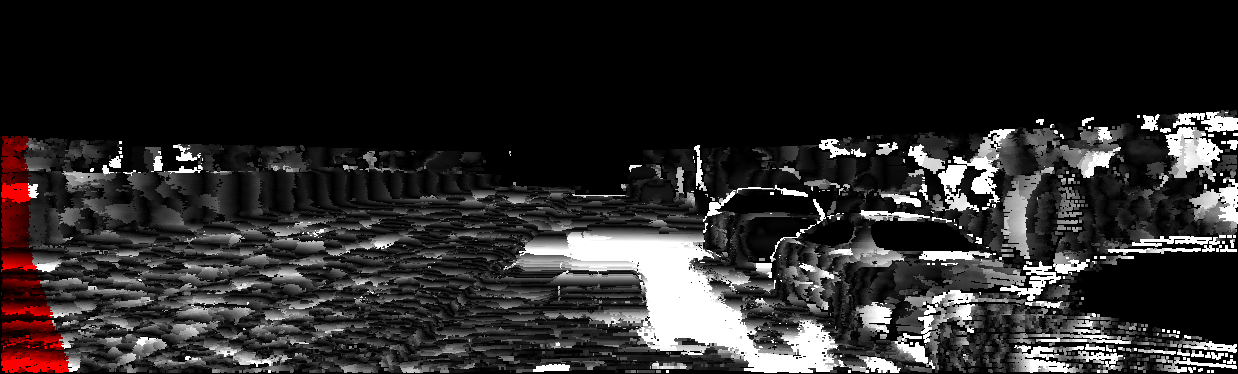

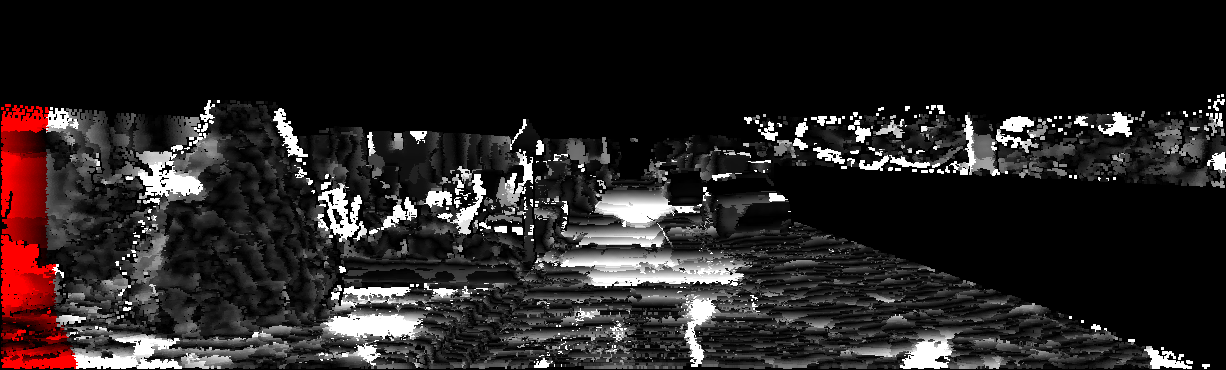

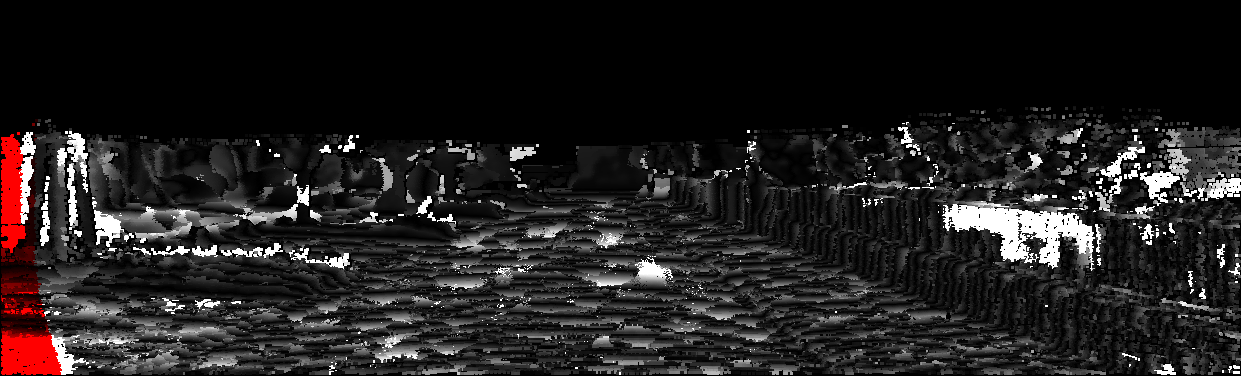

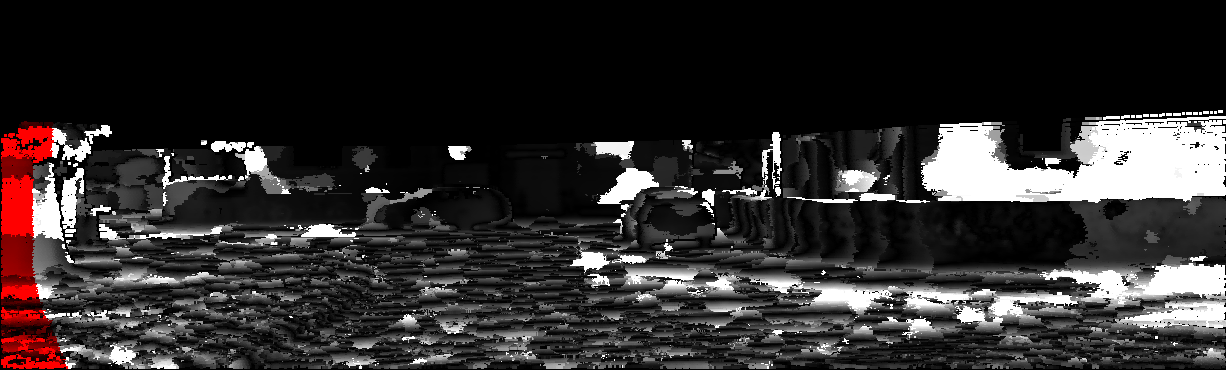

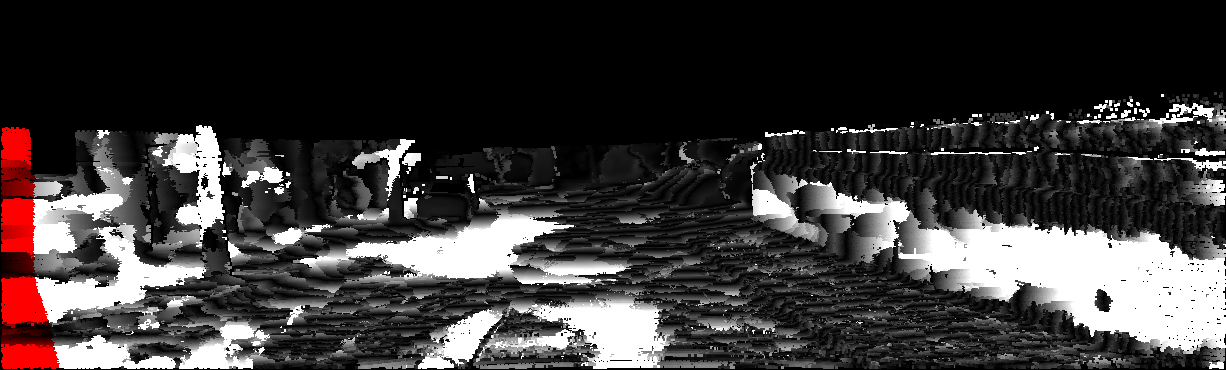

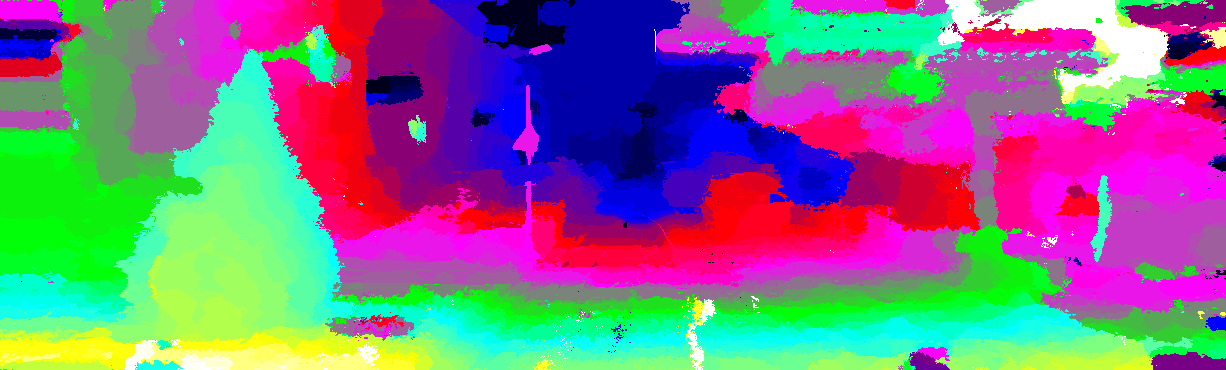

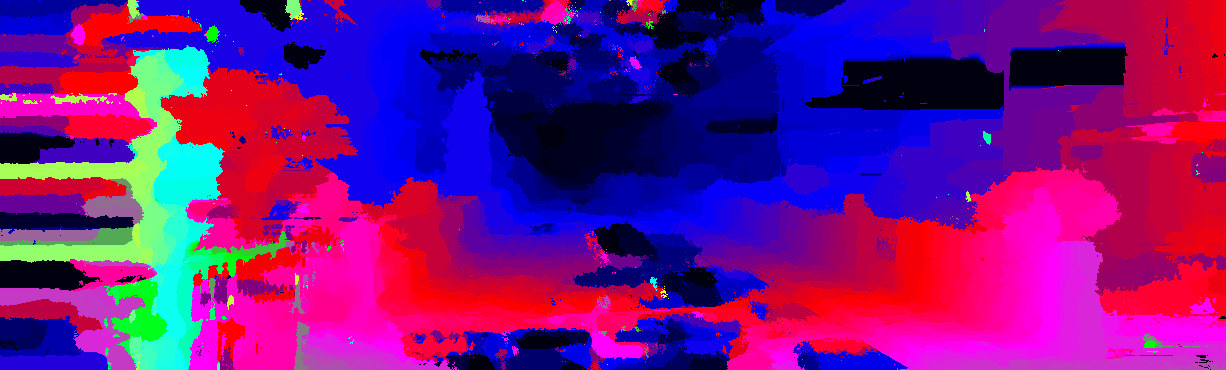

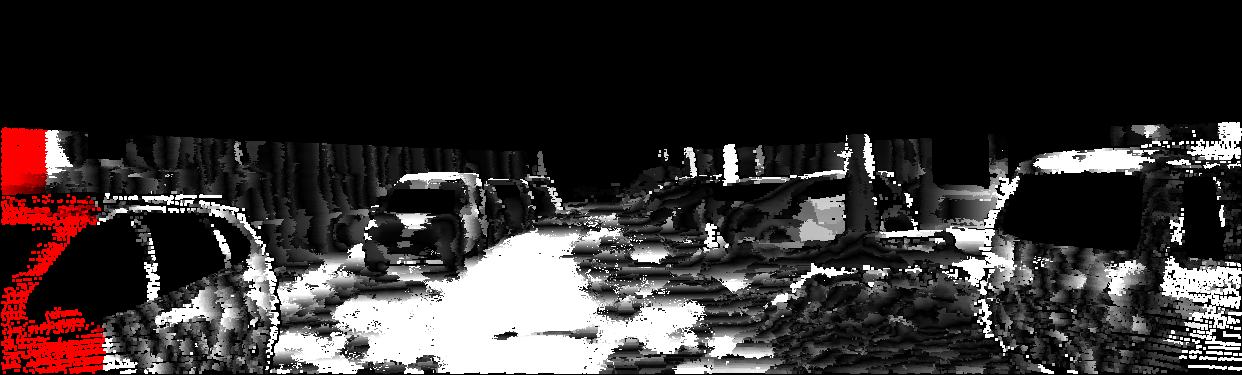

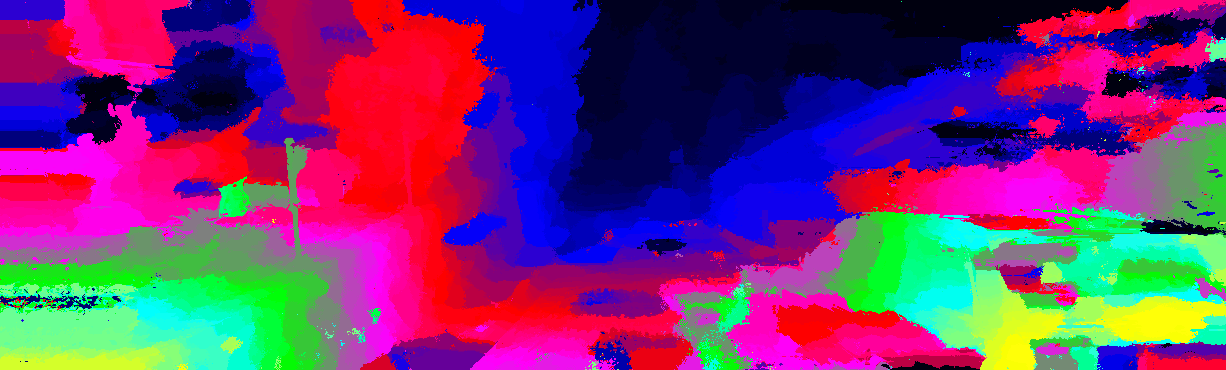

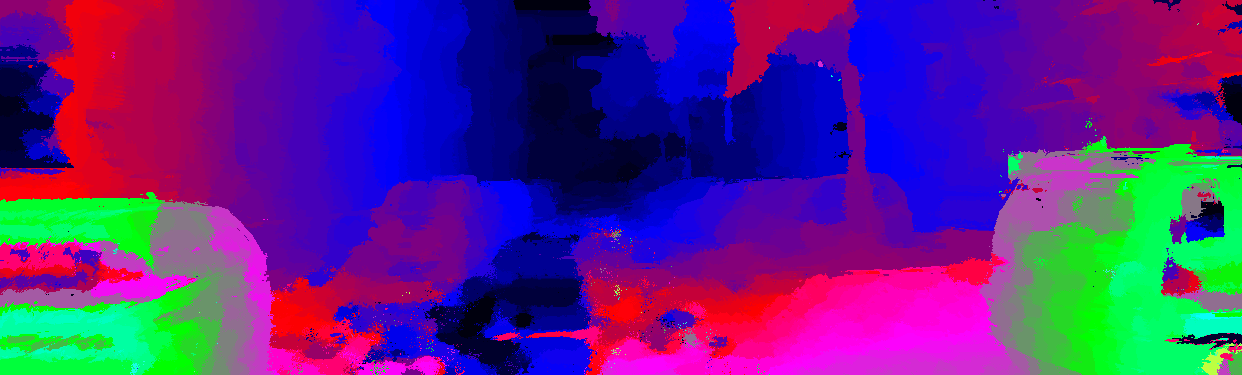

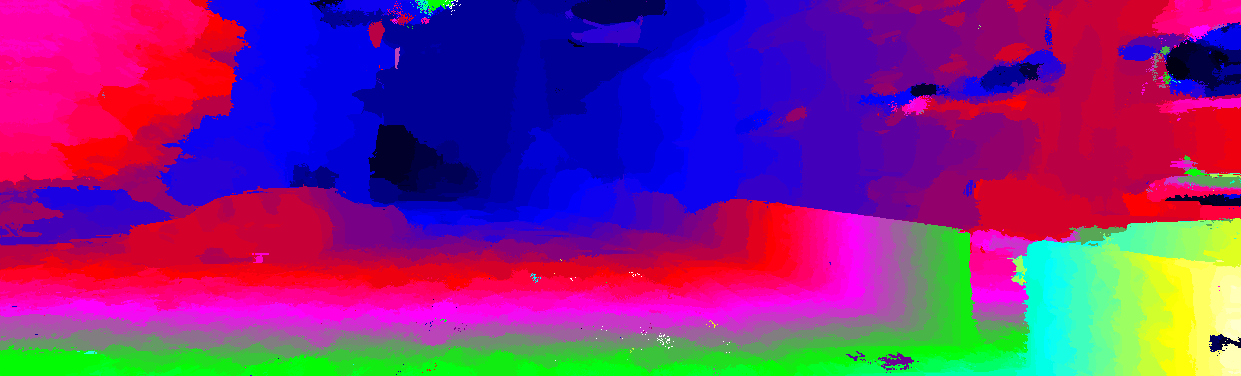

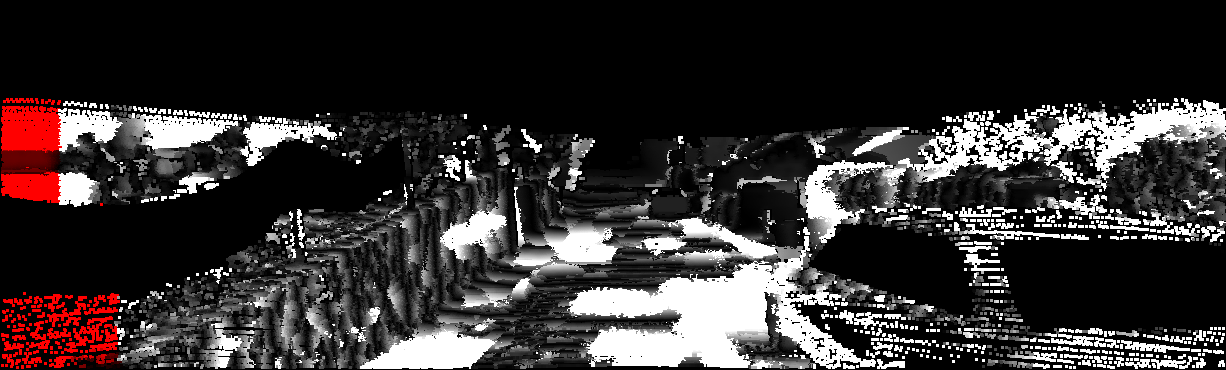

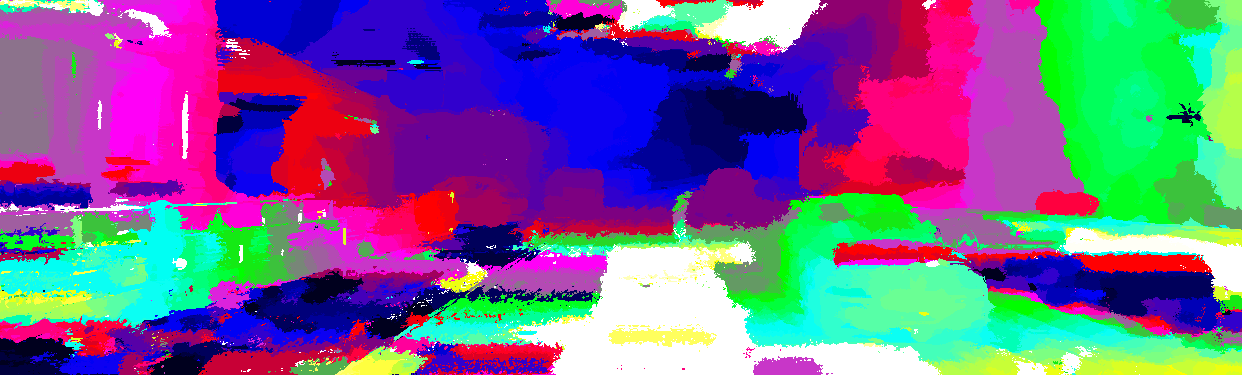

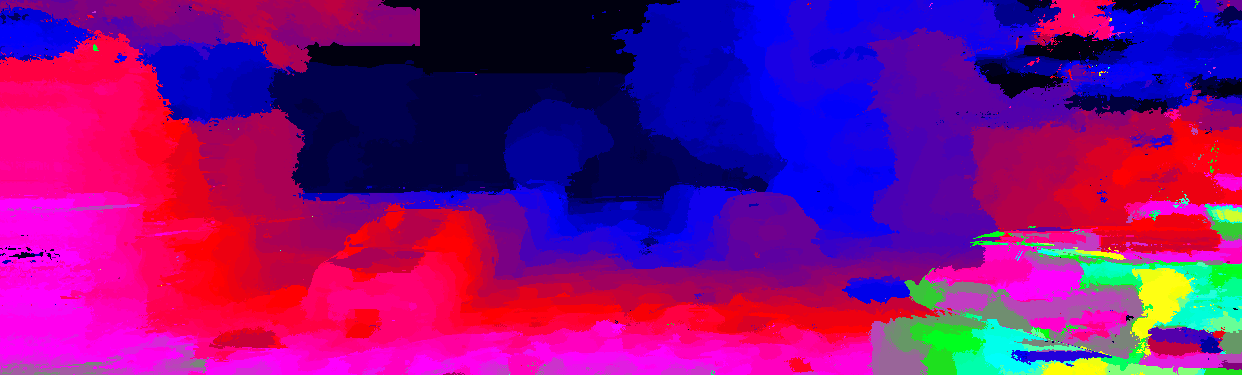

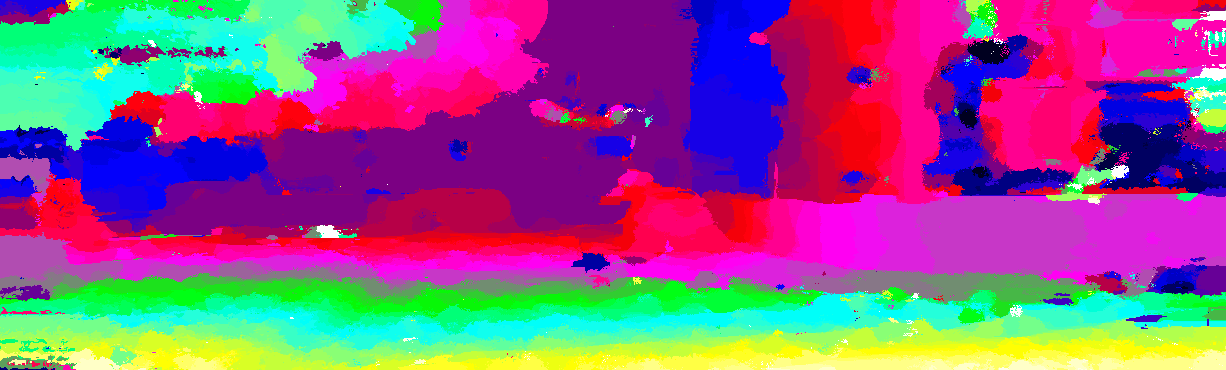

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 25.90 % 27.09 % 5.0 px 5.4 px
3 pixels 19.99 % 21.08 % 5.0 px 5.4 px
4 pixels 17.13 % 18.11 % 5.0 px 5.4 px
5 pixels 15.52 % 16.41 % 5.0 px 5.4 px
This table as LaTeX

Reflective Regions

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 45.63 % 48.08 % 11.8 px 13.5 px
3 pixels 39.41 % 41.95 % 11.8 px 13.5 px
4 pixels 35.43 % 37.95 % 11.8 px 13.5 px
5 pixels 32.49 % 34.99 % 11.8 px 13.5 px
This table as LaTeX

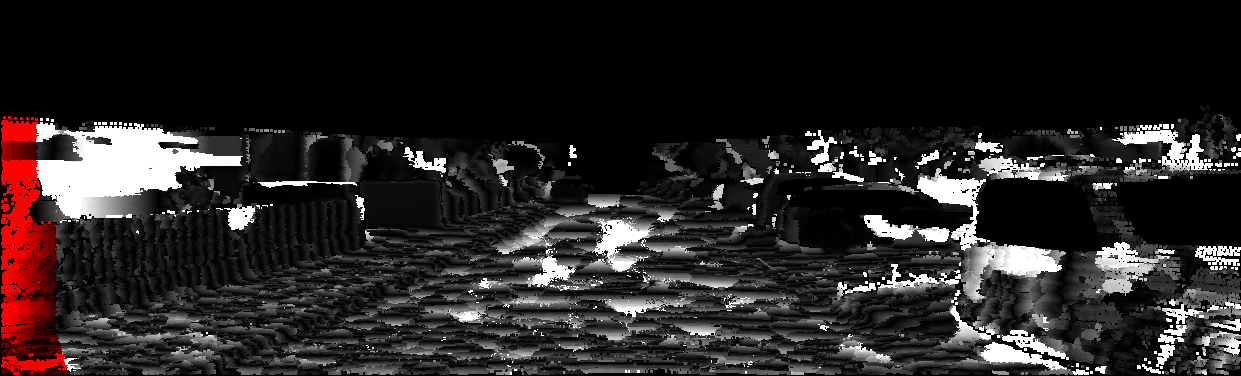

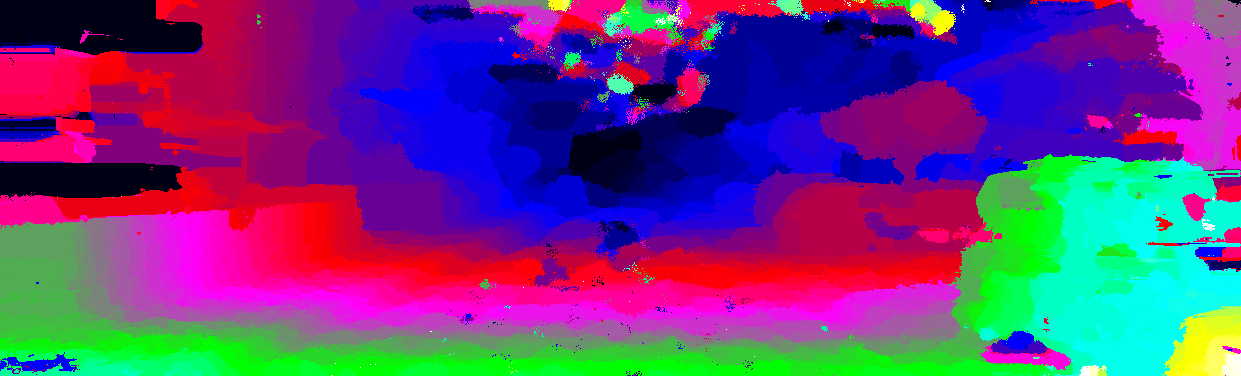

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 18.89 % 20.48 % 2.3 px 2.5 px
3 pixels 12.88 % 14.21 % 2.3 px 2.5 px
4 pixels 10.21 % 11.29 % 2.3 px 2.5 px
5 pixels 8.45 % 9.31 % 2.3 px 2.5 px
This table as LaTeX





Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 20.69 % 22.91 % 2.2 px 2.3 px
3 pixels 13.31 % 15.06 % 2.2 px 2.3 px
4 pixels 9.95 % 11.16 % 2.2 px 2.3 px
5 pixels 7.75 % 8.64 % 2.2 px 2.3 px
This table as LaTeX





Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 53.52 % 54.22 % 16.7 px 17.0 px
3 pixels 49.16 % 49.83 % 16.7 px 17.0 px
4 pixels 46.97 % 47.62 % 16.7 px 17.0 px
5 pixels 45.56 % 46.18 % 16.7 px 17.0 px
This table as LaTeX

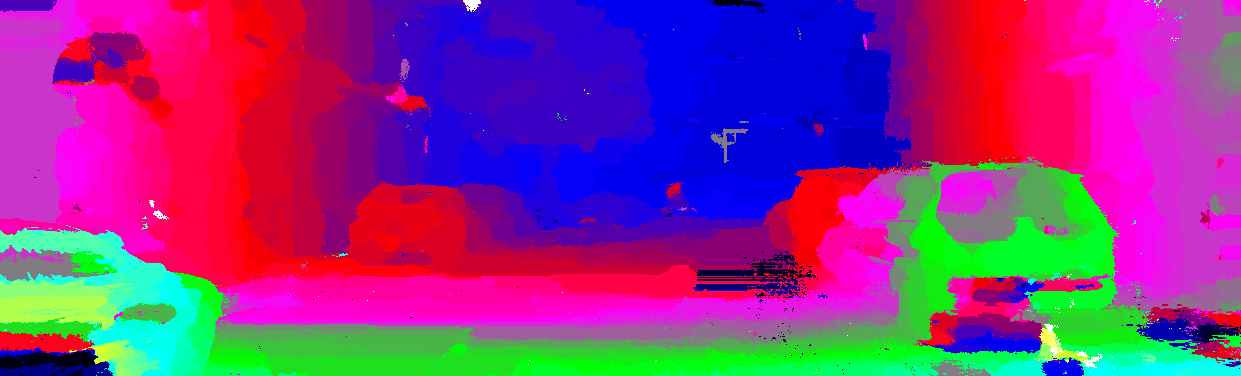

Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 30.07 % 31.76 % 3.6 px 4.3 px
3 pixels 20.77 % 22.26 % 3.6 px 4.3 px
4 pixels 15.35 % 16.60 % 3.6 px 4.3 px
5 pixels 12.00 % 13.03 % 3.6 px 4.3 px
This table as LaTeX





Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 22.15 % 23.53 % 2.7 px 2.9 px
3 pixels 15.79 % 16.66 % 2.7 px 2.9 px
4 pixels 13.14 % 13.95 % 2.7 px 2.9 px
5 pixels 11.36 % 12.17 % 2.7 px 2.9 px
This table as LaTeX

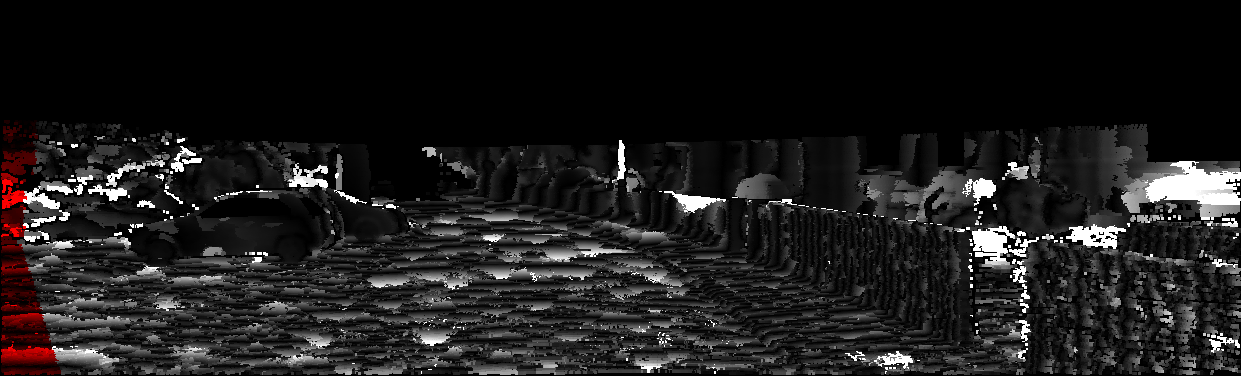

Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.22 % 10.51 % 1.2 px 1.2 px
3 pixels 4.95 % 5.11 % 1.2 px 1.2 px
4 pixels 3.21 % 3.28 % 1.2 px 1.2 px
5 pixels 2.65 % 2.67 % 1.2 px 1.2 px
This table as LaTeX





Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 38.05 % 39.33 % 6.7 px 7.2 px
3 pixels 30.85 % 32.13 % 6.7 px 7.2 px
4 pixels 27.06 % 28.42 % 6.7 px 7.2 px
5 pixels 25.29 % 26.69 % 6.7 px 7.2 px
This table as LaTeX





Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 36.19 % 37.73 % 6.6 px 7.0 px
3 pixels 29.21 % 30.85 % 6.6 px 7.0 px
4 pixels 25.51 % 27.09 % 6.6 px 7.0 px
5 pixels 22.98 % 24.50 % 6.6 px 7.0 px
This table as LaTeX

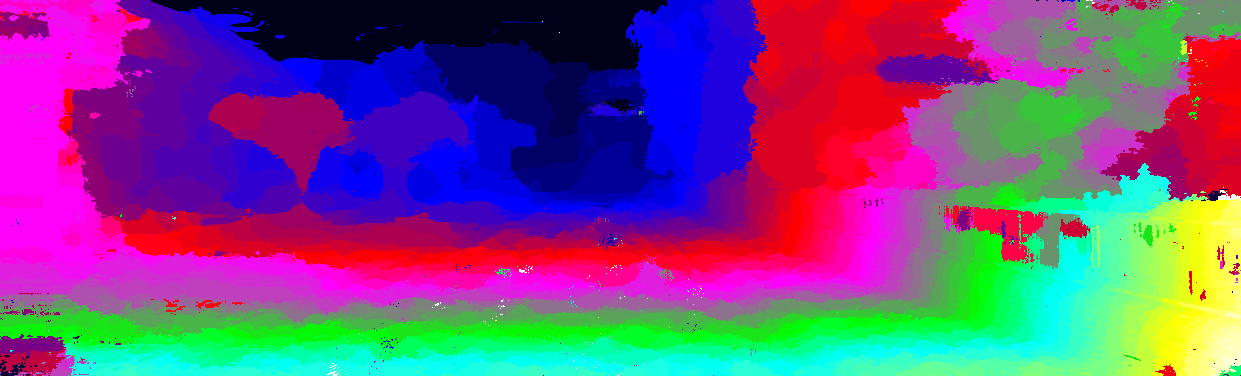

Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.40 % 12.37 % 1.4 px 1.7 px
3 pixels 6.10 % 7.06 % 1.4 px 1.7 px
4 pixels 4.24 % 5.20 % 1.4 px 1.7 px
5 pixels 3.52 % 4.49 % 1.4 px 1.7 px
This table as LaTeX

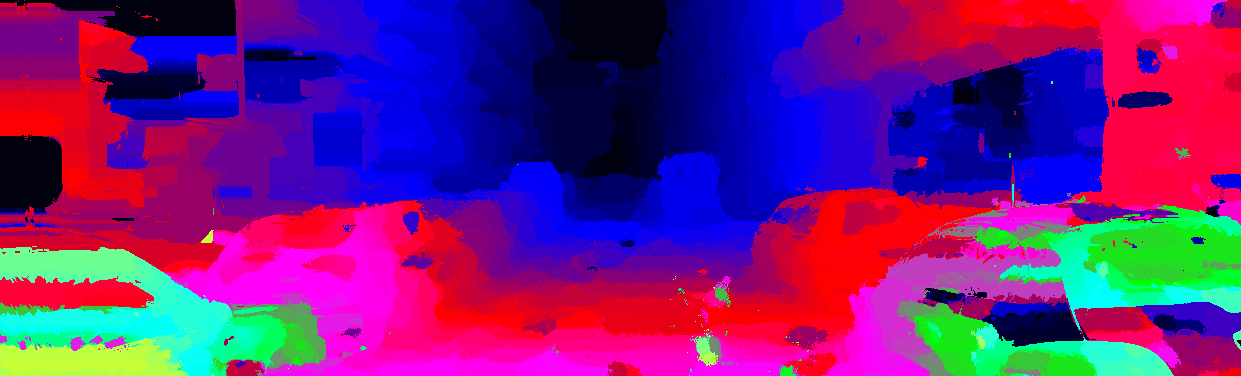

Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 35.51 % 37.11 % 5.7 px 6.6 px
3 pixels 26.27 % 28.09 % 5.7 px 6.6 px
4 pixels 20.43 % 22.38 % 5.7 px 6.6 px
5 pixels 17.46 % 19.41 % 5.7 px 6.6 px
This table as LaTeX

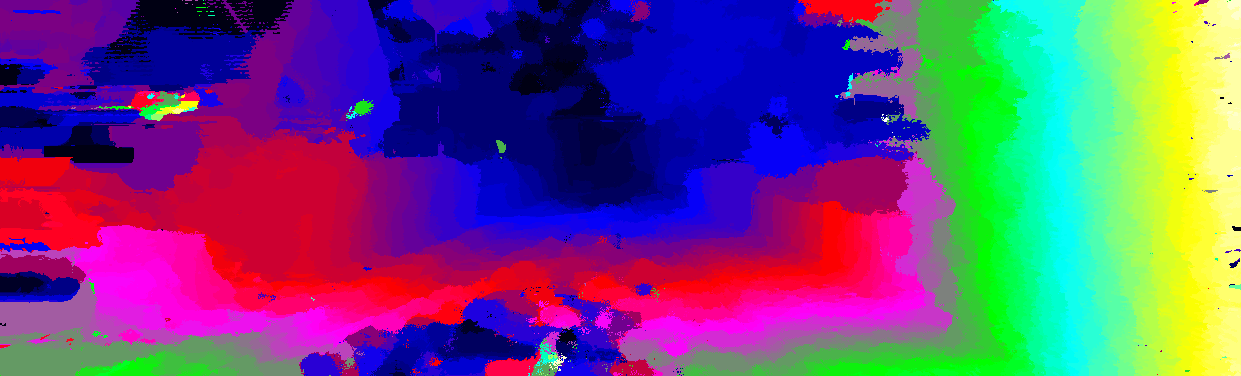

Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 20.67 % 21.77 % 3.6 px 3.9 px
3 pixels 14.80 % 15.82 % 3.6 px 3.9 px
4 pixels 12.20 % 13.10 % 3.6 px 3.9 px
5 pixels 10.92 % 11.71 % 3.6 px 3.9 px
This table as LaTeX

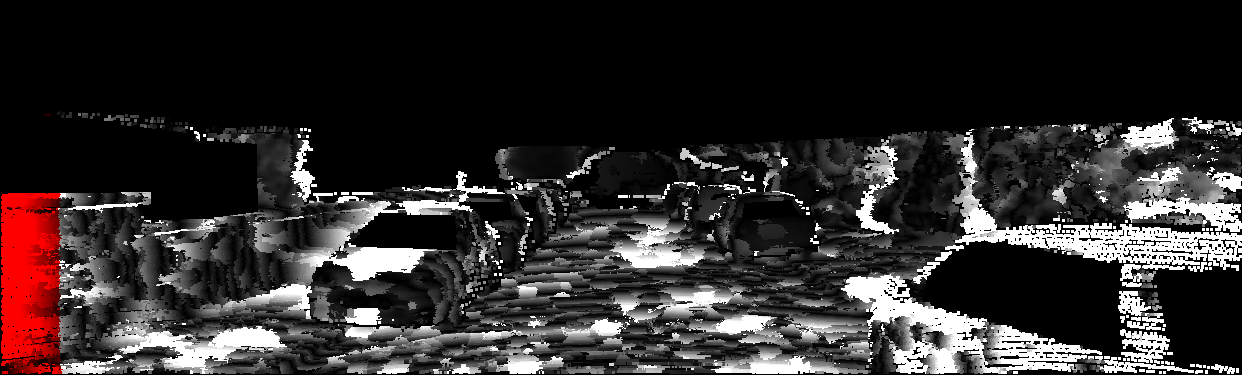

Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 29.20 % 31.53 % 3.3 px 3.4 px
3 pixels 19.95 % 22.19 % 3.3 px 3.4 px
4 pixels 14.60 % 16.47 % 3.3 px 3.4 px
5 pixels 11.77 % 13.20 % 3.3 px 3.4 px
This table as LaTeX

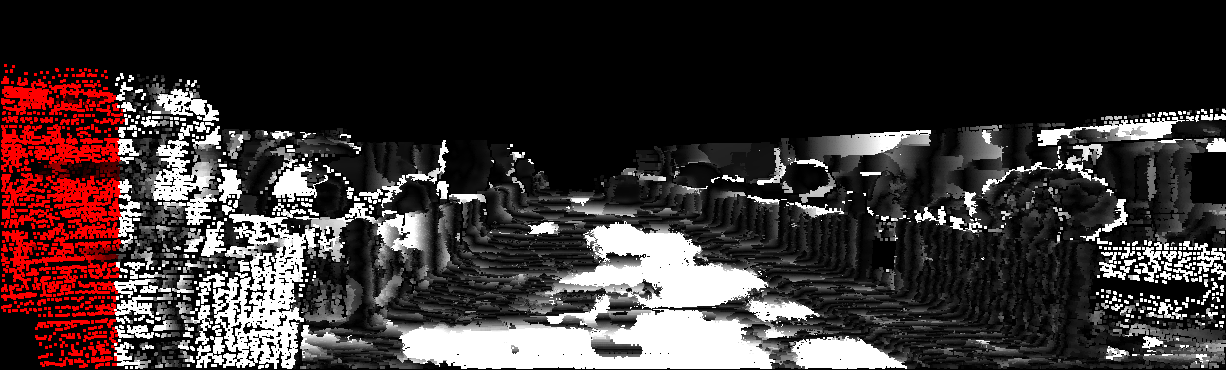

Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 29.38 % 31.06 % 6.3 px 8.0 px
3 pixels 24.50 % 26.27 % 6.3 px 8.0 px
4 pixels 21.72 % 23.52 % 6.3 px 8.0 px
5 pixels 20.35 % 22.14 % 6.3 px 8.0 px
This table as LaTeX

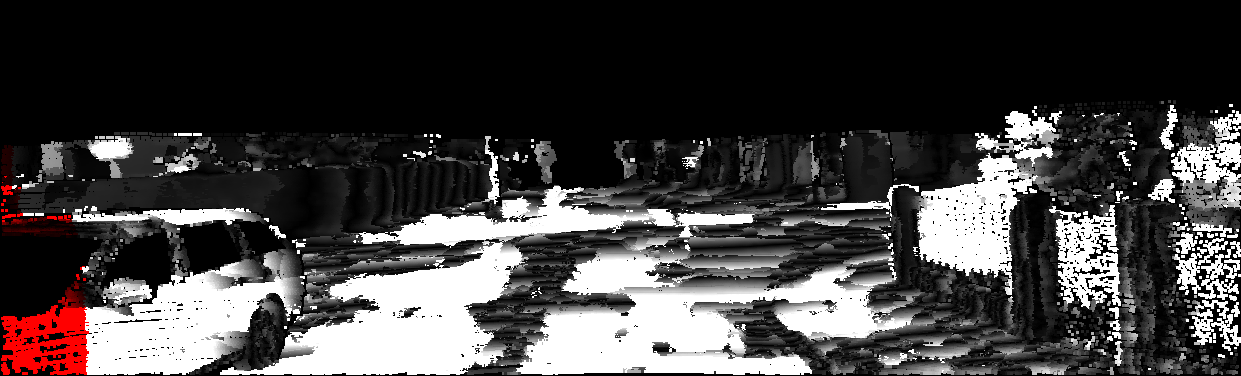

Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 42.28 % 42.66 % 9.6 px 10.3 px
3 pixels 36.56 % 36.99 % 9.6 px 10.3 px
4 pixels 33.20 % 33.67 % 9.6 px 10.3 px
5 pixels 31.08 % 31.58 % 9.6 px 10.3 px
This table as LaTeX

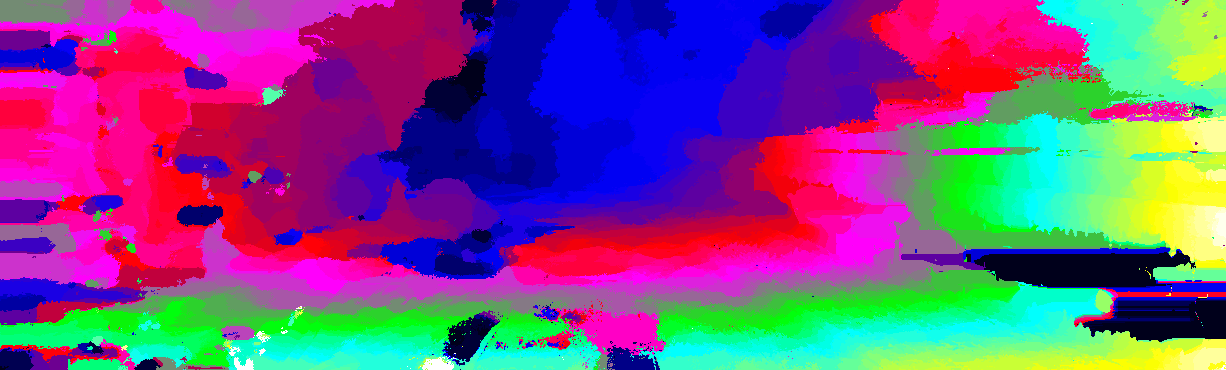

Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 31.03 % 32.11 % 5.9 px 6.2 px
3 pixels 24.42 % 25.42 % 5.9 px 6.2 px
4 pixels 20.96 % 21.91 % 5.9 px 6.2 px
5 pixels 18.77 % 19.63 % 5.9 px 6.2 px
This table as LaTeX

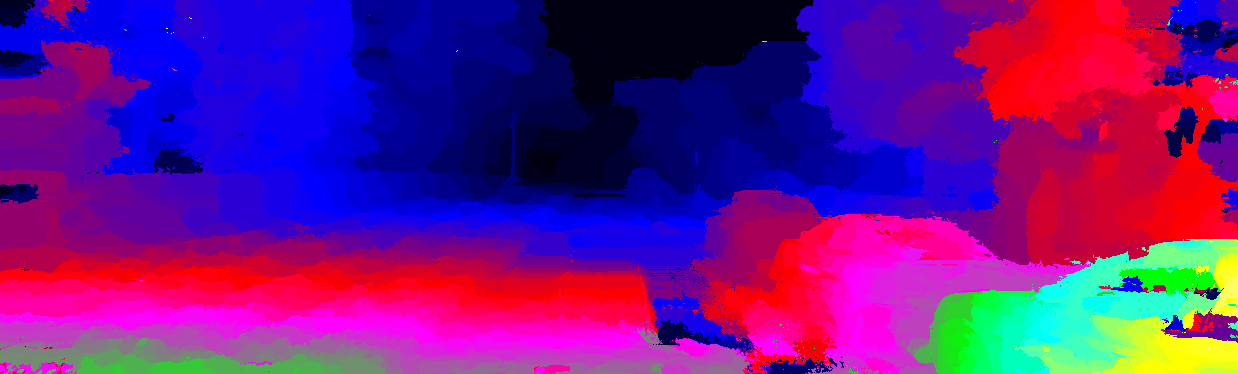

Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 24.55 % 25.11 % 2.4 px 2.5 px
3 pixels 16.51 % 16.75 % 2.4 px 2.5 px
4 pixels 12.12 % 12.24 % 2.4 px 2.5 px
5 pixels 9.60 % 9.67 % 2.4 px 2.5 px
This table as LaTeX





Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 15.85 % 16.67 % 2.9 px 3.1 px
3 pixels 10.79 % 11.62 % 2.9 px 3.1 px
4 pixels 8.58 % 9.36 % 2.9 px 3.1 px
5 pixels 7.61 % 8.36 % 2.9 px 3.1 px
This table as LaTeX

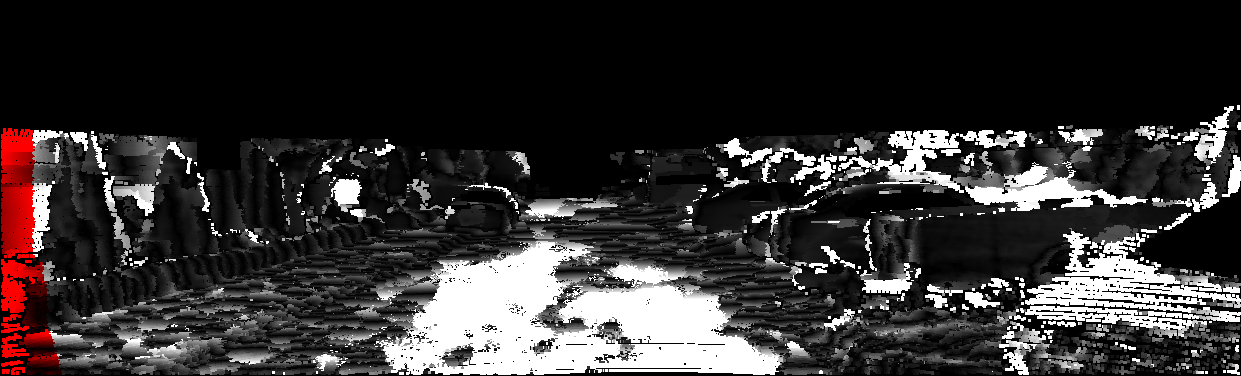

Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 28.98 % 29.95 % 6.3 px 6.3 px
3 pixels 23.95 % 24.84 % 6.3 px 6.3 px
4 pixels 21.29 % 21.73 % 6.3 px 6.3 px
5 pixels 19.72 % 19.81 % 6.3 px 6.3 px
This table as LaTeX

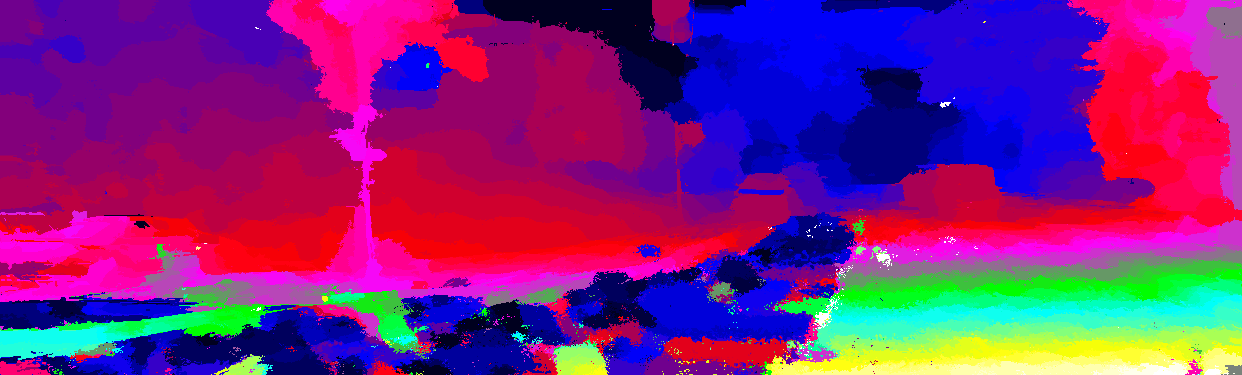

Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 34.72 % 35.15 % 9.6 px 9.6 px
3 pixels 30.98 % 31.43 % 9.6 px 9.6 px
4 pixels 29.06 % 29.50 % 9.6 px 9.6 px
5 pixels 28.06 % 28.41 % 9.6 px 9.6 px
This table as LaTeX

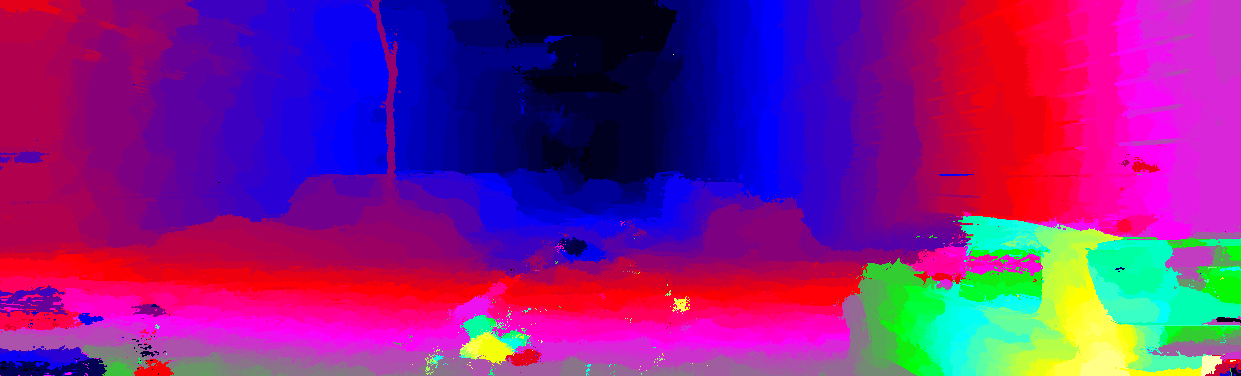

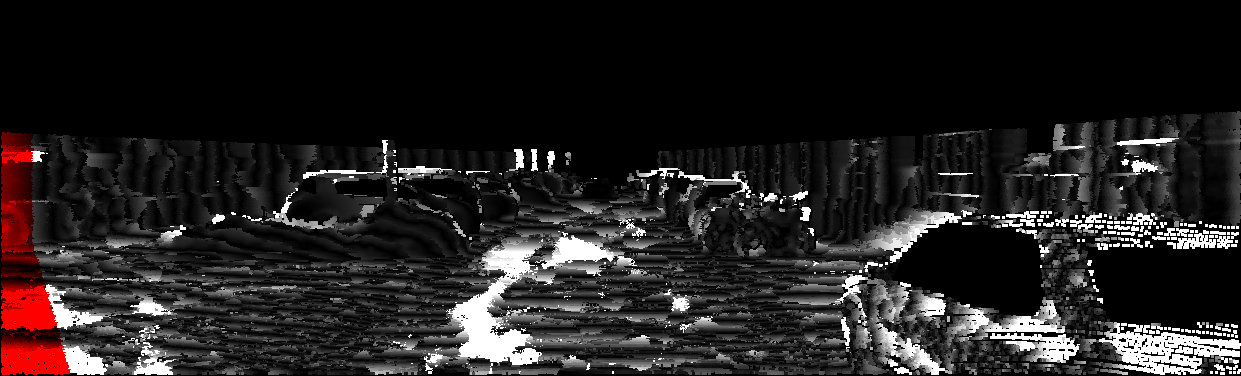

Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 14.96 % 16.35 % 2.4 px 2.7 px
3 pixels 9.37 % 10.34 % 2.4 px 2.7 px
4 pixels 7.23 % 8.07 % 2.4 px 2.7 px
5 pixels 6.17 % 7.00 % 2.4 px 2.7 px
This table as LaTeX
