Method

Total Generalized Variation without Warping [ALTGV]


Submitted on 4 Sep. 2013 14:14 by
Georg Kuschk (German Aerospace Center)

Running time:20 s
Environment:GPU @ 2.5 Ghz (C/C++)

Method Description:
Uses quadratic relaxation to decouble convex and non-convex part.
Optimization iteratively done by
-Primal-dual algorithm
-Exhaustive search + subdisparity refinement
-Augmented Lagrangians
Parameters:
cost=ADC
lambda_d = 0.2
lambda_s = 1.0
lambda_s = 8.0
Latex Bibtex:
@inproceedings{kuschk-et-al-iccv2013,
author = {G. Kuschk and D. Cremers},
title = {Fast and Accurate Large-scale Stereo Reconstruction using Variational Methods},
year = {2013},
address = {Sydney, Australia},
month = {December},
booktitle = {ICCV Workshop on Big Data in 3D Computer Vision},
keywords = {large scale, 3D stereo reconstruction, total variation}
}

Detailed Results

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.88 % 9.30 % 1.1 px 1.2 px
3 pixels 5.36 % 6.49 % 1.1 px 1.2 px
4 pixels 4.17 % 5.07 % 1.1 px 1.2 px
5 pixels 3.42 % 4.17 % 1.1 px 1.2 px
This table as LaTeX

Reflective Regions

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 31.51 % 34.77 % 3.4 px 4.2 px
3 pixels 23.47 % 26.85 % 3.4 px 4.2 px
4 pixels 18.86 % 22.19 % 3.4 px 4.2 px
5 pixels 15.74 % 18.97 % 3.4 px 4.2 px
This table as LaTeX

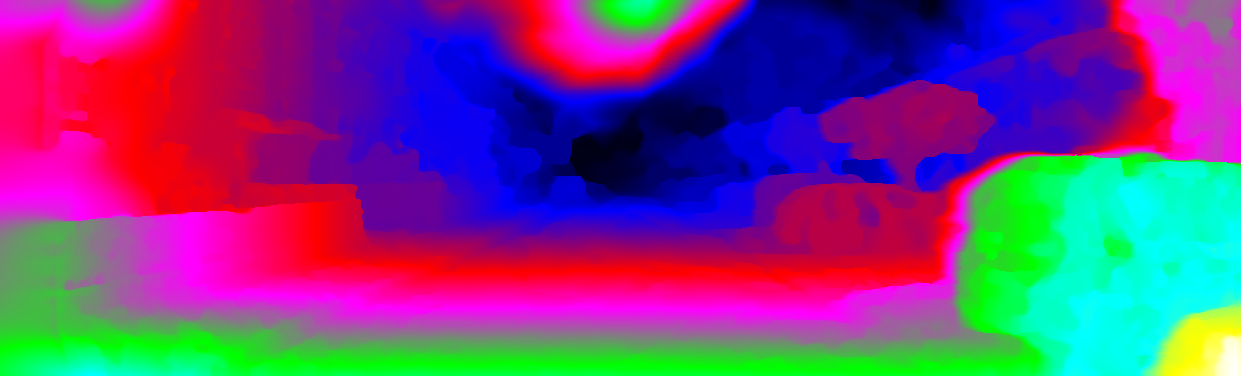

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 9.07 % 10.49 % 1.0 px 1.1 px
3 pixels 6.69 % 7.56 % 1.0 px 1.1 px
4 pixels 5.22 % 5.77 % 1.0 px 1.1 px
5 pixels 4.07 % 4.40 % 1.0 px 1.1 px
This table as LaTeX

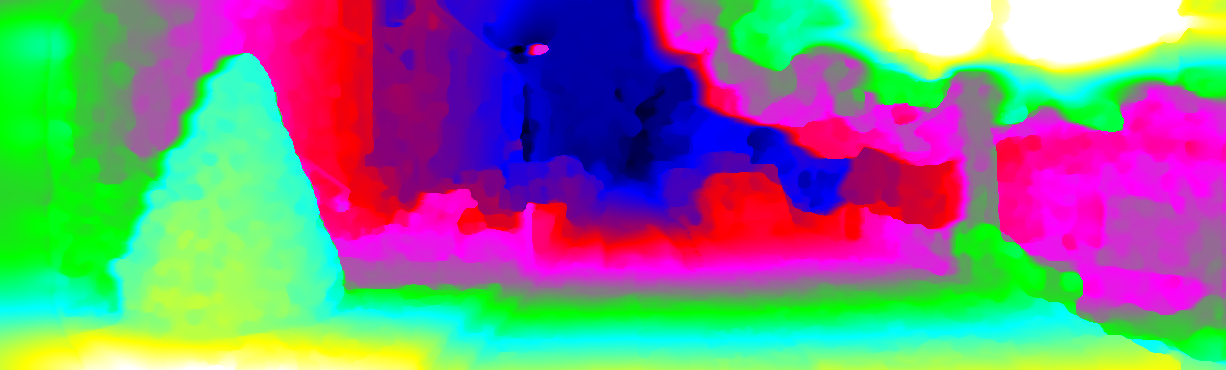

Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.36 % 9.47 % 0.9 px 1.0 px
3 pixels 3.68 % 6.36 % 0.9 px 1.0 px
4 pixels 2.88 % 4.83 % 0.9 px 1.0 px
5 pixels 2.45 % 3.74 % 0.9 px 1.0 px
This table as LaTeX

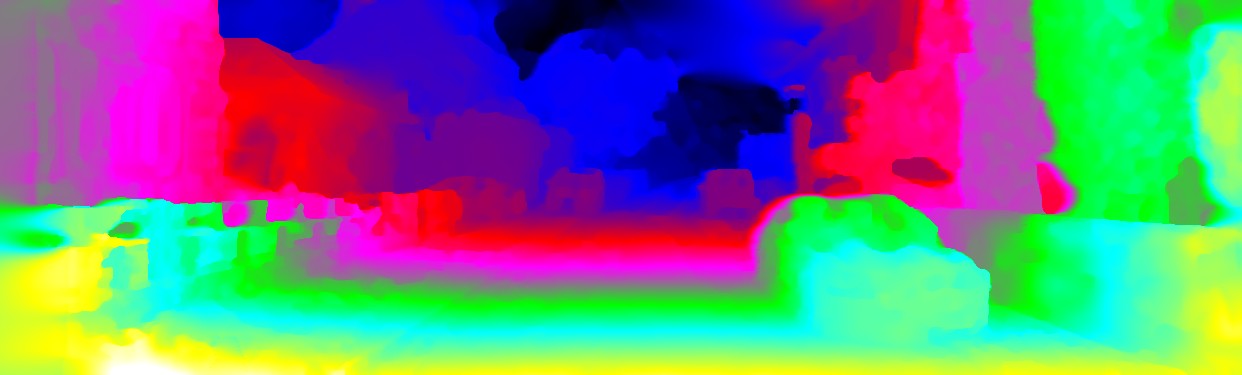

Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.95 % 9.24 % 0.8 px 0.9 px
3 pixels 4.95 % 5.92 % 0.8 px 0.9 px
4 pixels 3.51 % 4.02 % 0.8 px 0.9 px
5 pixels 2.38 % 2.79 % 0.8 px 0.9 px
This table as LaTeX

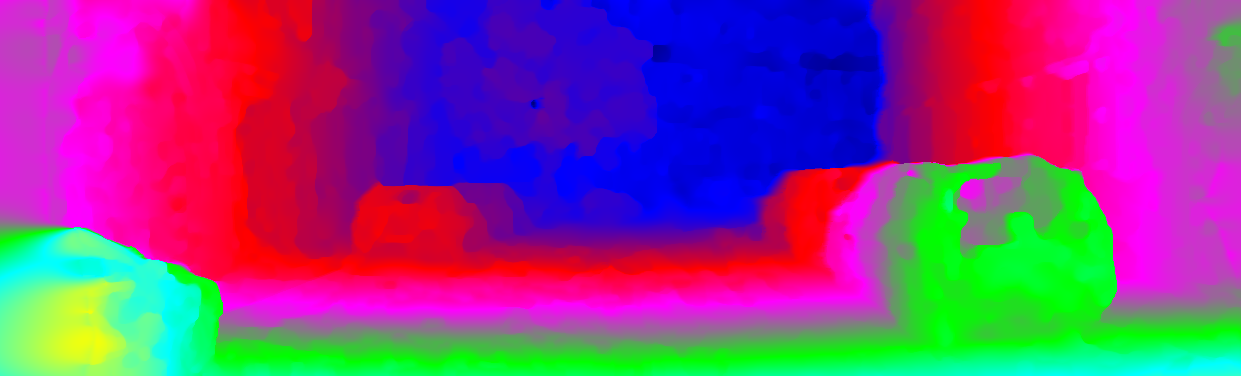

Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.44 % 8.80 % 0.8 px 1.0 px
3 pixels 3.54 % 5.70 % 0.8 px 1.0 px
4 pixels 2.34 % 3.86 % 0.8 px 1.0 px
5 pixels 1.65 % 2.86 % 0.8 px 1.0 px
This table as LaTeX

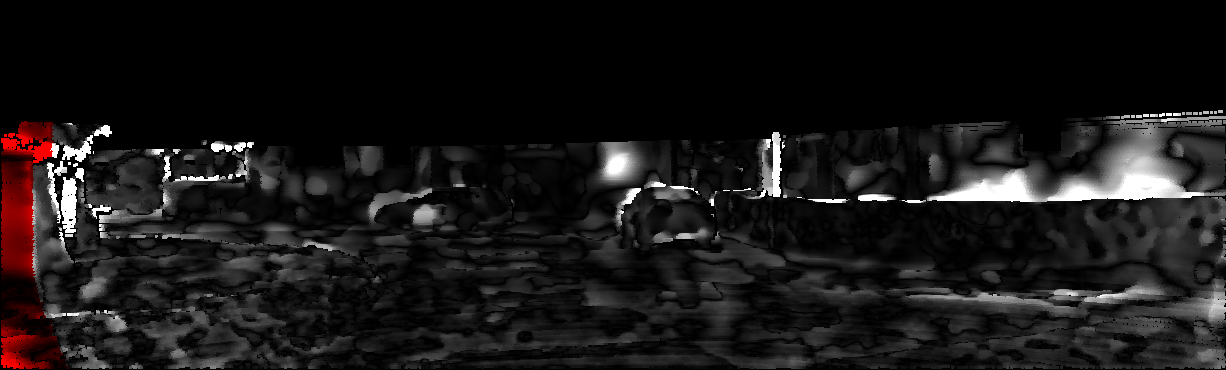

Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.00 % 7.03 % 0.7 px 0.8 px
3 pixels 3.45 % 3.74 % 0.7 px 0.8 px
4 pixels 2.26 % 2.37 % 0.7 px 0.8 px
5 pixels 1.52 % 1.59 % 0.7 px 0.8 px
This table as LaTeX

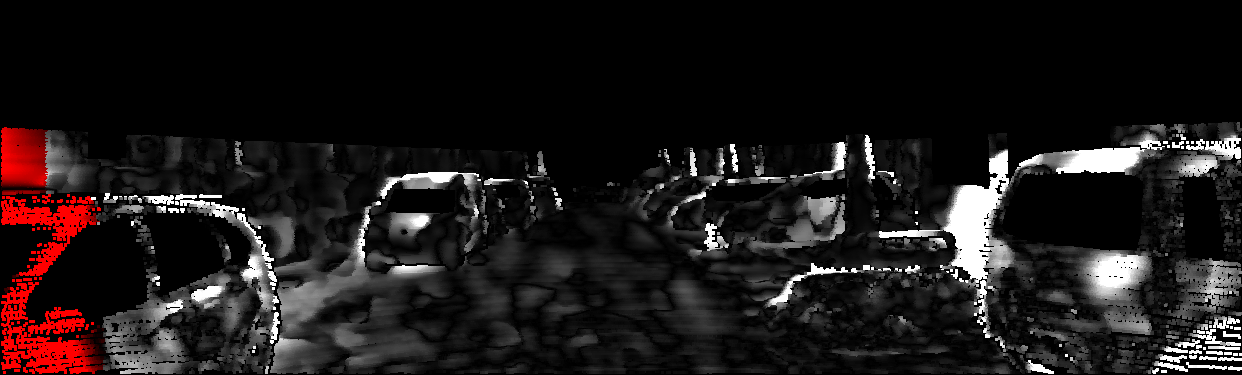

Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.44 % 3.77 % 0.6 px 0.6 px
3 pixels 1.96 % 2.10 % 0.6 px 0.6 px
4 pixels 1.57 % 1.63 % 0.6 px 0.6 px
5 pixels 1.34 % 1.36 % 0.6 px 0.6 px
This table as LaTeX





Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.58 % 10.72 % 1.1 px 1.3 px
3 pixels 5.83 % 7.40 % 1.1 px 1.3 px
4 pixels 4.51 % 5.47 % 1.1 px 1.3 px
5 pixels 3.88 % 4.57 % 1.1 px 1.3 px
This table as LaTeX





Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.53 % 13.49 % 1.2 px 1.4 px
3 pixels 6.90 % 8.71 % 1.2 px 1.4 px
4 pixels 5.13 % 6.52 % 1.2 px 1.4 px
5 pixels 4.18 % 5.20 % 1.2 px 1.4 px
This table as LaTeX

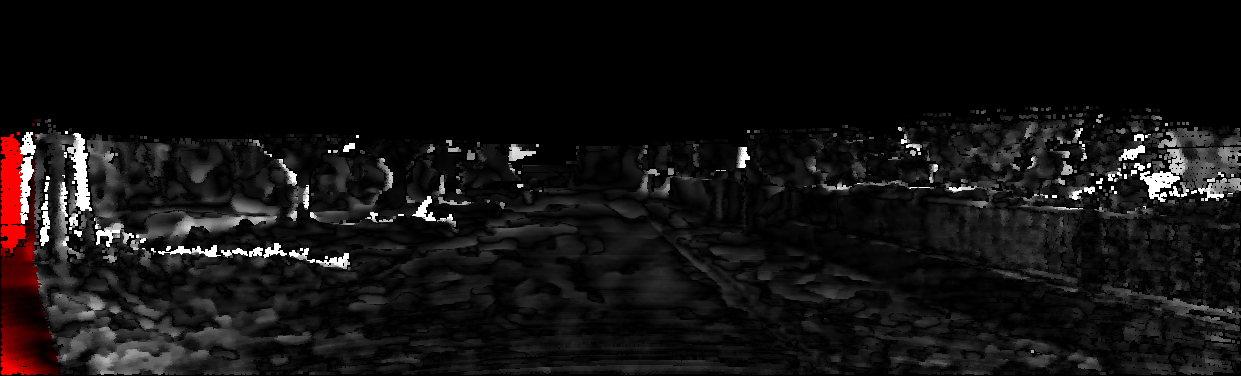

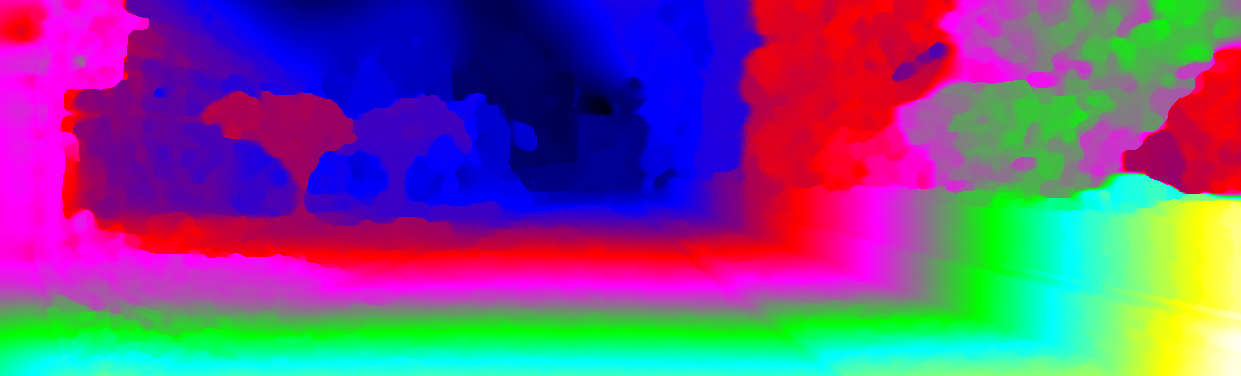

Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.01 % 3.74 % 0.6 px 0.6 px
3 pixels 1.71 % 2.28 % 0.6 px 0.6 px
4 pixels 1.17 % 1.68 % 0.6 px 0.6 px
5 pixels 0.96 % 1.43 % 0.6 px 0.6 px
This table as LaTeX

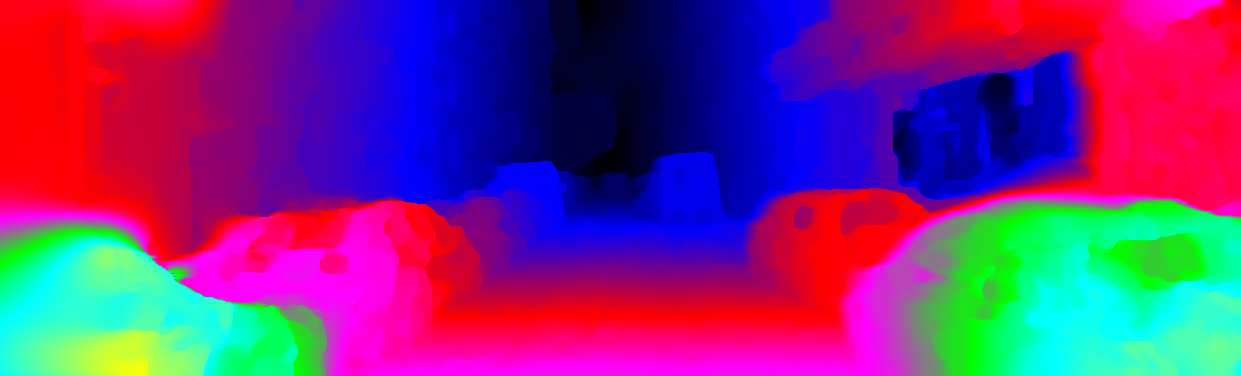

Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 13.06 % 15.01 % 1.5 px 1.8 px
3 pixels 9.31 % 11.18 % 1.5 px 1.8 px
4 pixels 7.14 % 8.73 % 1.5 px 1.8 px
5 pixels 5.96 % 7.31 % 1.5 px 1.8 px
This table as LaTeX

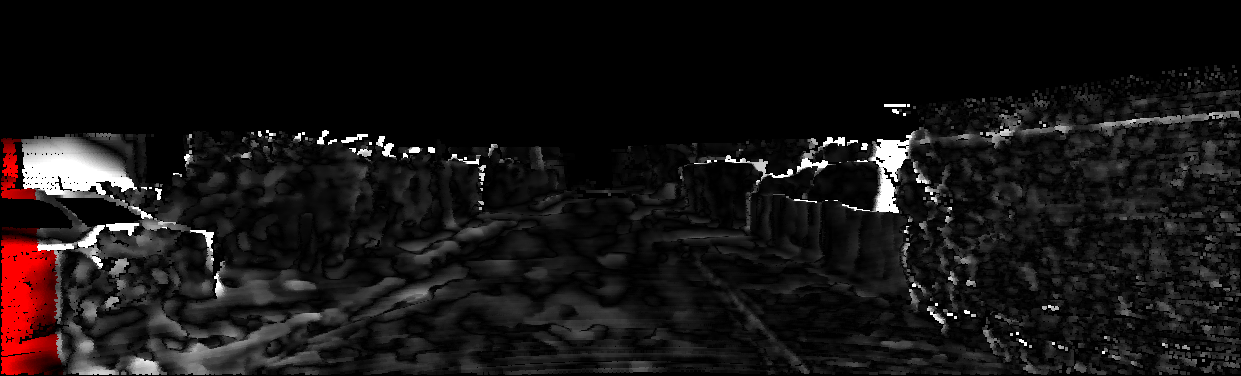

Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.28 % 5.63 % 0.6 px 0.7 px
3 pixels 2.60 % 3.71 % 0.6 px 0.7 px
4 pixels 1.88 % 2.72 % 0.6 px 0.7 px
5 pixels 1.45 % 2.05 % 0.6 px 0.7 px
This table as LaTeX

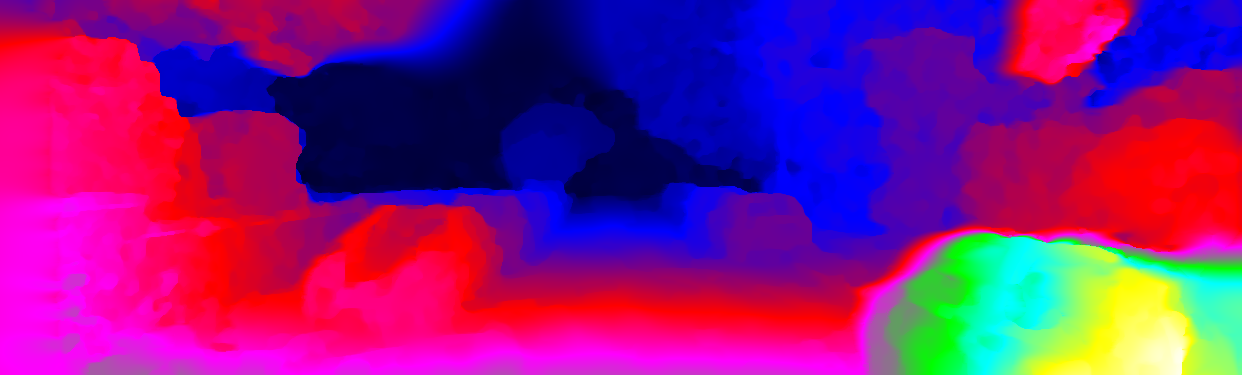

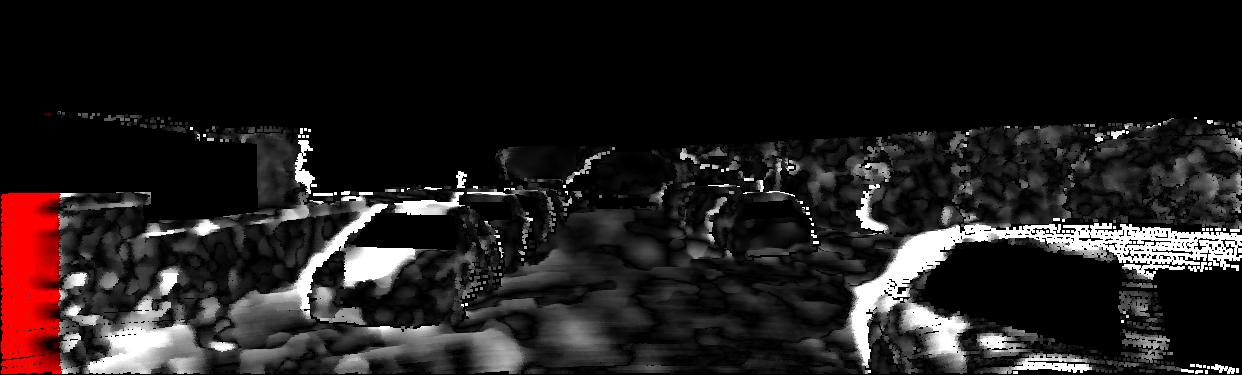

Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 15.66 % 18.60 % 1.8 px 1.9 px
3 pixels 9.97 % 12.89 % 1.8 px 1.9 px
4 pixels 7.26 % 9.77 % 1.8 px 1.9 px
5 pixels 5.55 % 7.48 % 1.8 px 1.9 px
This table as LaTeX





Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.36 % 8.94 % 1.3 px 1.5 px
3 pixels 5.72 % 7.06 % 1.3 px 1.5 px
4 pixels 4.85 % 6.08 % 1.3 px 1.5 px
5 pixels 4.37 % 5.52 % 1.3 px 1.5 px
This table as LaTeX





Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.00 % 8.31 % 1.2 px 1.4 px
3 pixels 5.36 % 6.65 % 1.2 px 1.4 px
4 pixels 4.69 % 5.94 % 1.2 px 1.4 px
5 pixels 4.17 % 5.39 % 1.2 px 1.4 px
This table as LaTeX

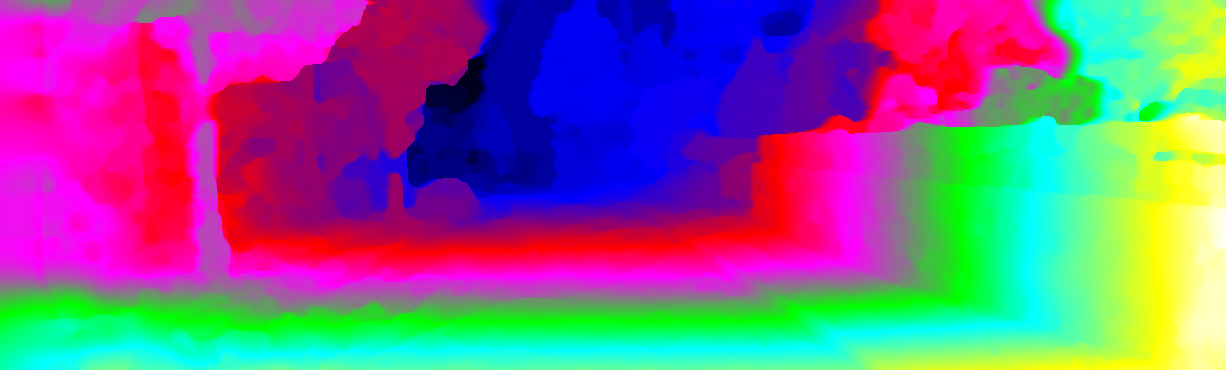

Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.96 % 4.45 % 0.6 px 0.6 px
3 pixels 1.71 % 1.86 % 0.6 px 0.6 px
4 pixels 0.93 % 0.98 % 0.6 px 0.6 px
5 pixels 0.73 % 0.75 % 0.6 px 0.6 px
This table as LaTeX





Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.42 % 6.99 % 0.9 px 0.9 px
3 pixels 3.82 % 4.07 % 0.9 px 0.9 px
4 pixels 2.50 % 2.66 % 0.9 px 0.9 px
5 pixels 1.82 % 1.92 % 0.9 px 0.9 px
This table as LaTeX

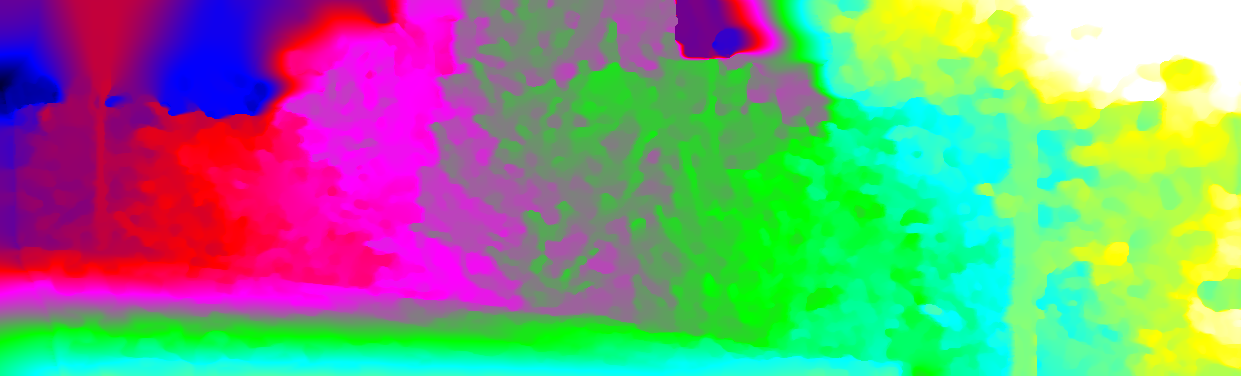

Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.45 % 3.66 % 0.5 px 0.6 px
3 pixels 1.36 % 1.36 % 0.5 px 0.6 px
4 pixels 0.71 % 0.71 % 0.5 px 0.6 px
5 pixels 0.42 % 0.42 % 0.5 px 0.6 px
This table as LaTeX

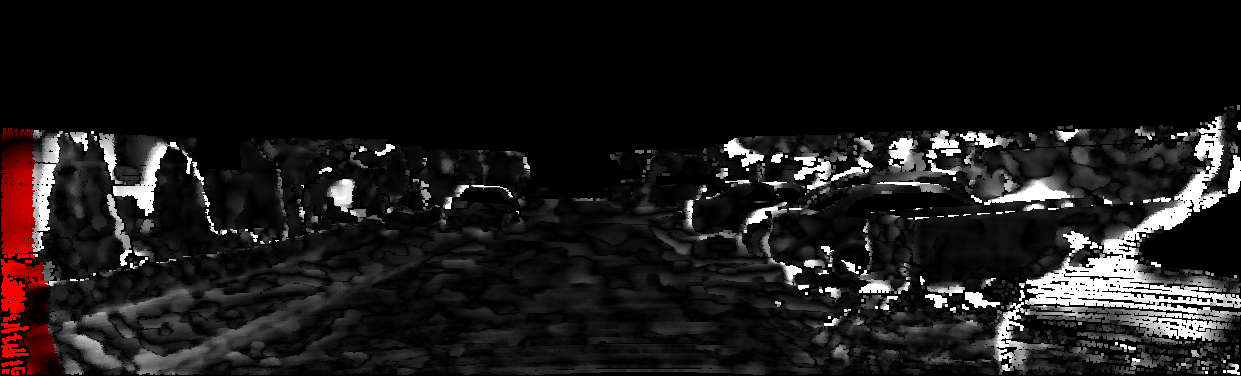

Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.86 % 8.93 % 0.9 px 1.0 px
3 pixels 5.77 % 6.63 % 0.9 px 1.0 px
4 pixels 4.66 % 4.94 % 0.9 px 1.0 px
5 pixels 3.56 % 3.76 % 0.9 px 1.0 px
This table as LaTeX

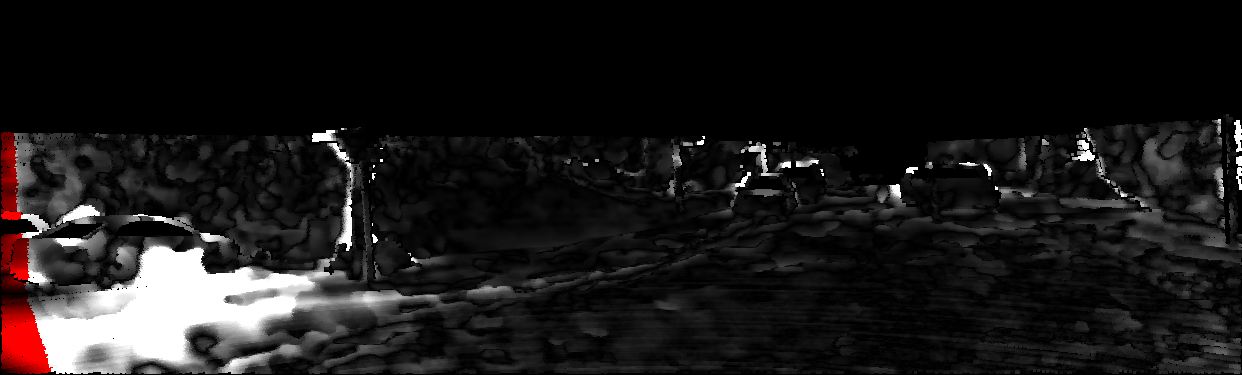

Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 9.61 % 10.57 % 0.9 px 0.9 px
3 pixels 7.36 % 7.94 % 0.9 px 0.9 px
4 pixels 5.95 % 6.34 % 0.9 px 0.9 px
5 pixels 4.82 % 5.09 % 0.9 px 0.9 px
This table as LaTeX





Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.96 % 4.73 % 0.8 px 0.9 px
3 pixels 3.03 % 3.22 % 0.8 px 0.9 px
4 pixels 2.59 % 2.63 % 0.8 px 0.9 px
5 pixels 2.28 % 2.28 % 0.8 px 0.9 px
This table as LaTeX
