Method

Joint Optical Flow and Temporally Consistent Semantic Segmentation [ms] [JFS]


Submitted on 6 Jul. 2016 14:52 by
Junhwa Hur (TU Darmstadt)

Running time:13 min
Environment:1 core @ 3.2 Ghz (C/C++)

Method Description:
We propose a method for jointly estimating optical
flow and temporally consistent semantic
segmentation, which closely connects these two
problem domains and leverages each other. Semantic
segmentation provides information on plausible
physical motion to its associated pixels, and
accurate pixel-level temporal correspondences
enhance the accuracy of semantic segmentation in
the temporal domain.
Parameters:
Latex Bibtex:
@inproceedings{Hur2016ECCVWORK,
Author = {Junhwa Hur and Stefan Roth},
Booktitle = {ECCV Workshops},
Title = {Joint Optical Flow and Temporally
Consistent Semantic Segmentation},
Year = {2016}}

Detailed Results

This page provides detailed results for the method(s) selected. For the first 20 test images, the percentage of erroneous pixels is depicted in the table. We use the error metric described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), which considers a pixel to be correctly estimated if the disparity or flow end-point error is <3px or <5% (for scene flow this criterion needs to be fulfilled for both disparity maps and the flow map). Underneath, the left input image, the estimated results and the error maps are shown (for disp_0/disp_1/flow/scene_flow, respectively). The error map uses the log-color scale described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), depicting correct estimates (<3px or <5% error) in blue and wrong estimates in red color tones. Dark regions in the error images denote the occluded pixels which fall outside the image boundaries. The false color maps of the results are scaled to the largest ground truth disparity values / flow magnitudes.

Test Set Average

Error Fl-bg Fl-fg Fl-all
All / All 15.90 19.31 16.47
All / Est 15.90 19.31 16.47
Noc / All 7.85 14.97 9.14
Noc / Est 7.85 14.97 9.14
This table as LaTeX

Test Image 0

Error Fl-bg Fl-fg Fl-all
All / All 8.74 27.97 11.38
All / Est 8.74 27.97 11.38
Noc / All 7.20 27.97 10.35
Noc / Est 7.20 27.97 10.35
This table as LaTeX

Input Image

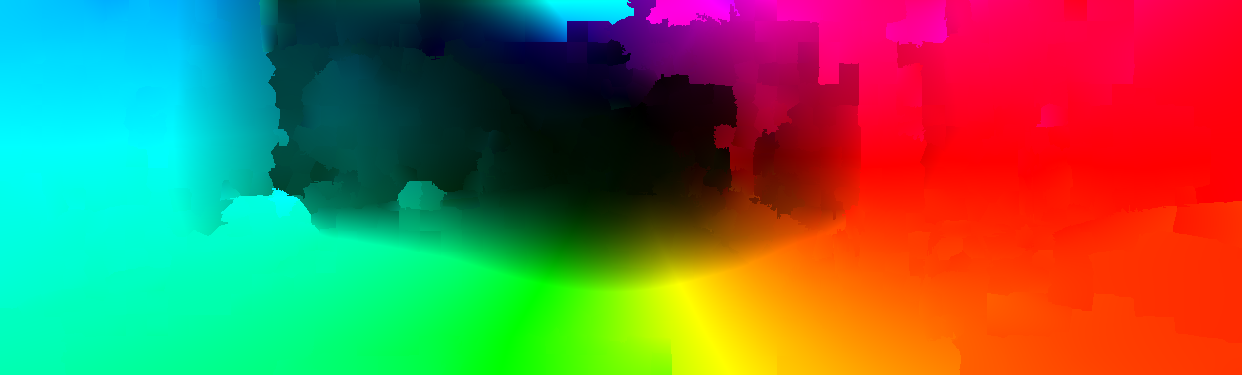

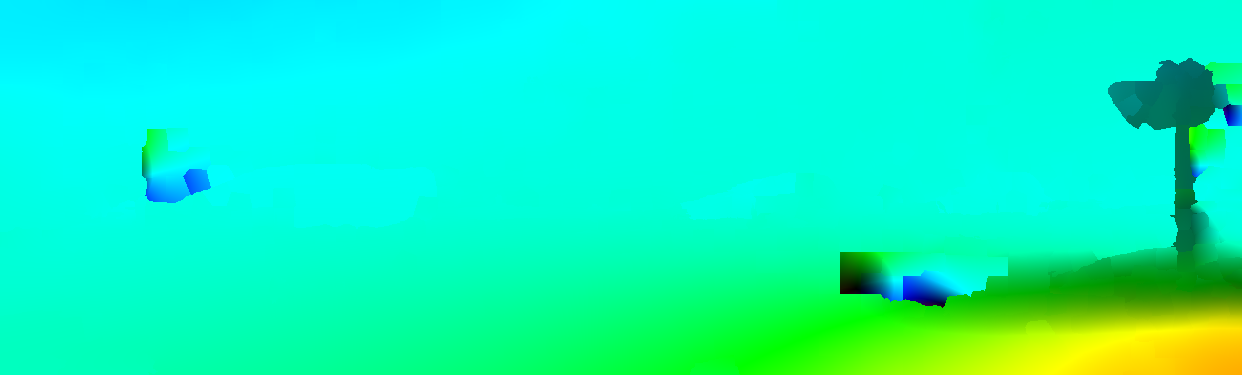

Flow Result

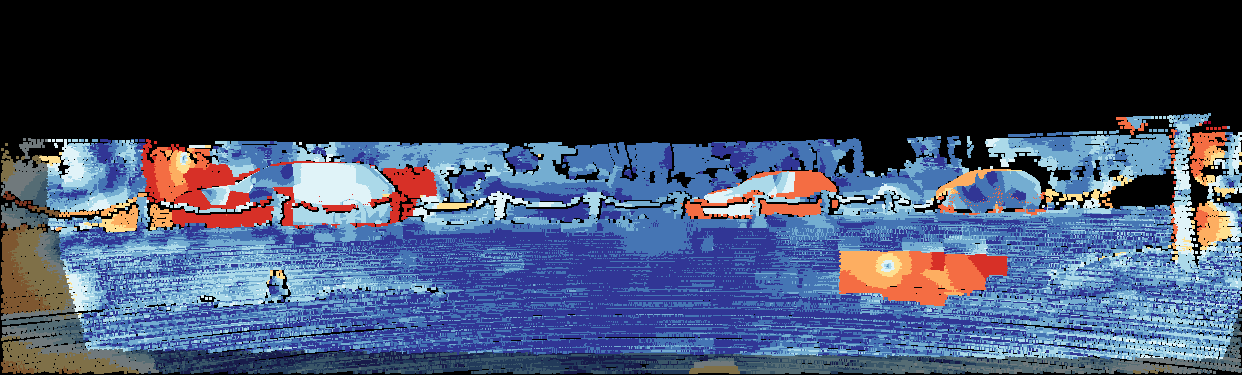

Flow Error


Test Image 1

Error Fl-bg Fl-fg Fl-all
All / All 6.07 23.30 8.00
All / Est 6.07 23.30 8.00
Noc / All 3.21 23.30 5.69
Noc / Est 3.21 23.30 5.69
This table as LaTeX

Input Image

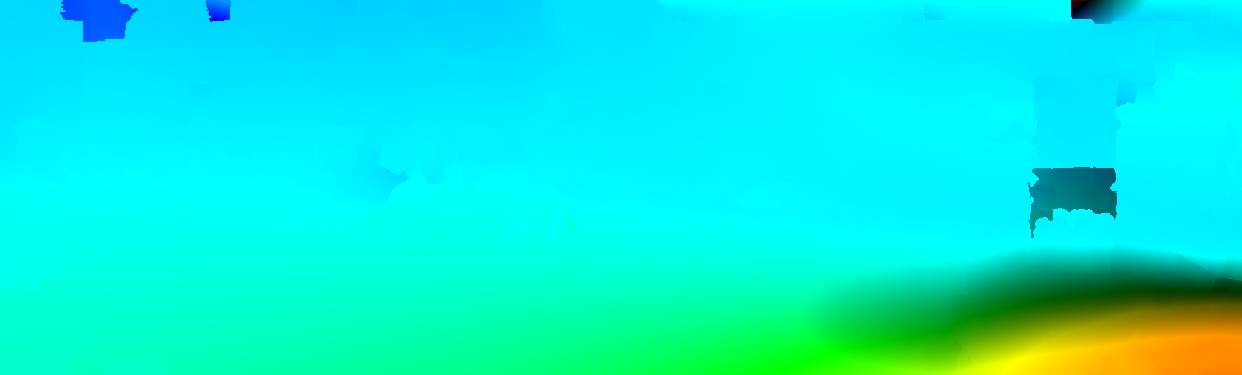

Flow Result

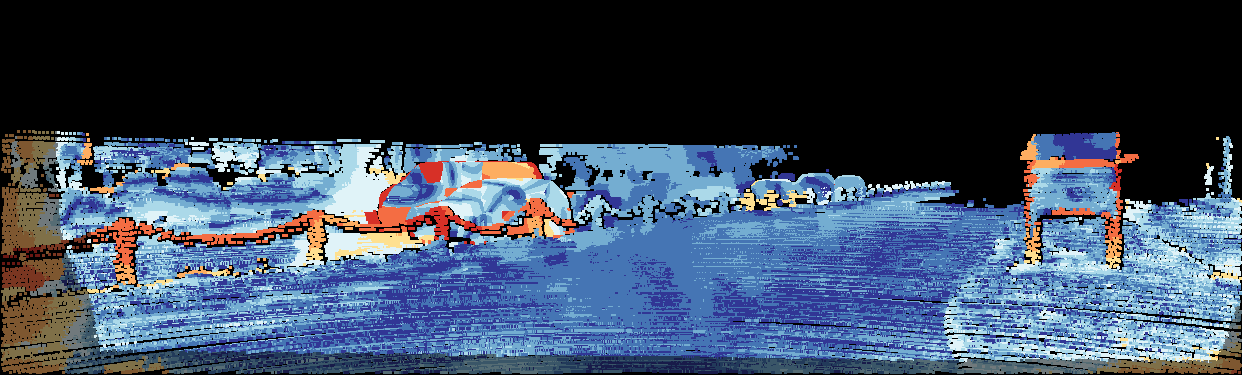

Flow Error


Test Image 2

Error Fl-bg Fl-fg Fl-all
All / All 15.41 13.97 15.34
All / Est 15.41 13.97 15.34
Noc / All 6.38 13.97 6.82
Noc / Est 6.38 13.97 6.82
This table as LaTeX

Input Image

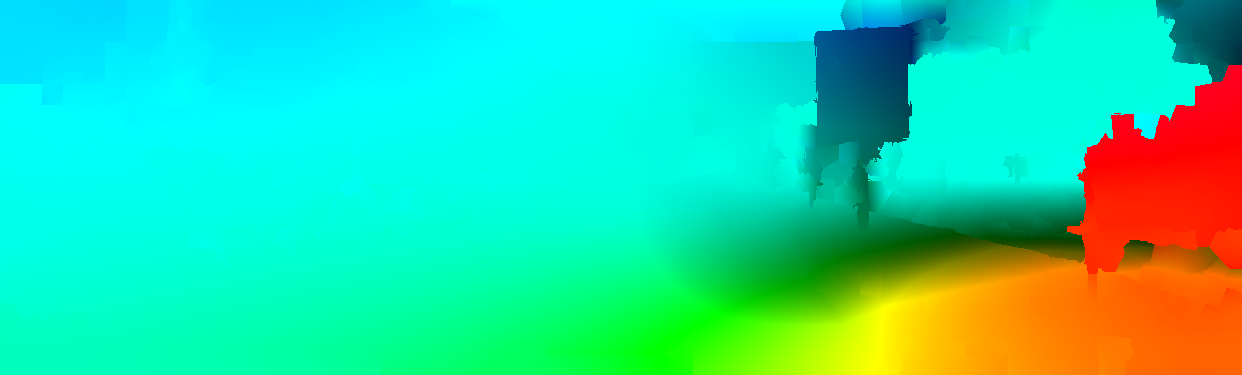

Flow Result

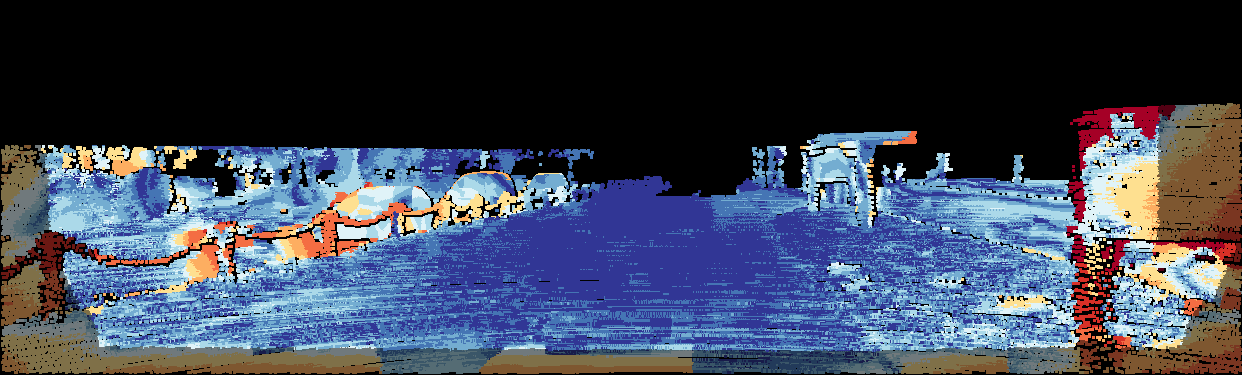

Flow Error


Test Image 3

Error Fl-bg Fl-fg Fl-all
All / All 14.14 79.48 20.18
All / Est 14.14 79.48 20.18
Noc / All 8.45 79.59 14.58
Noc / Est 8.45 79.59 14.58
This table as LaTeX

Input Image

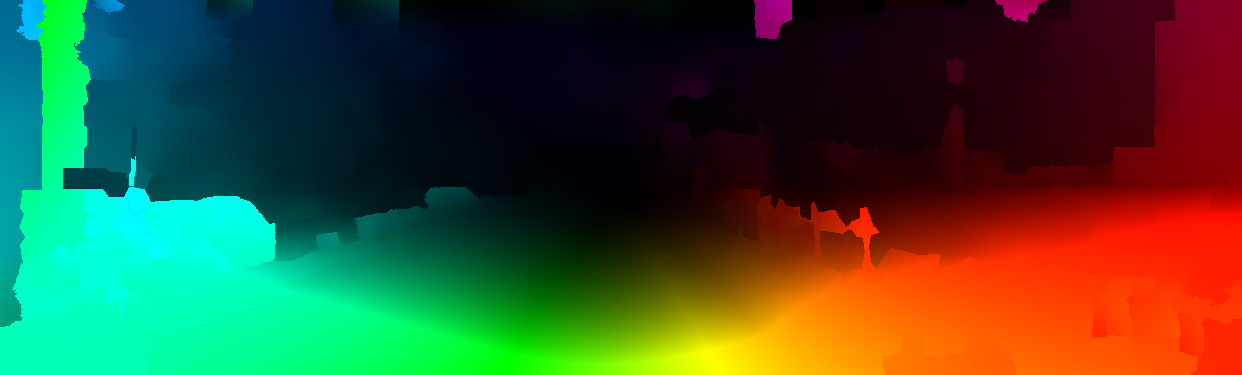

Flow Result

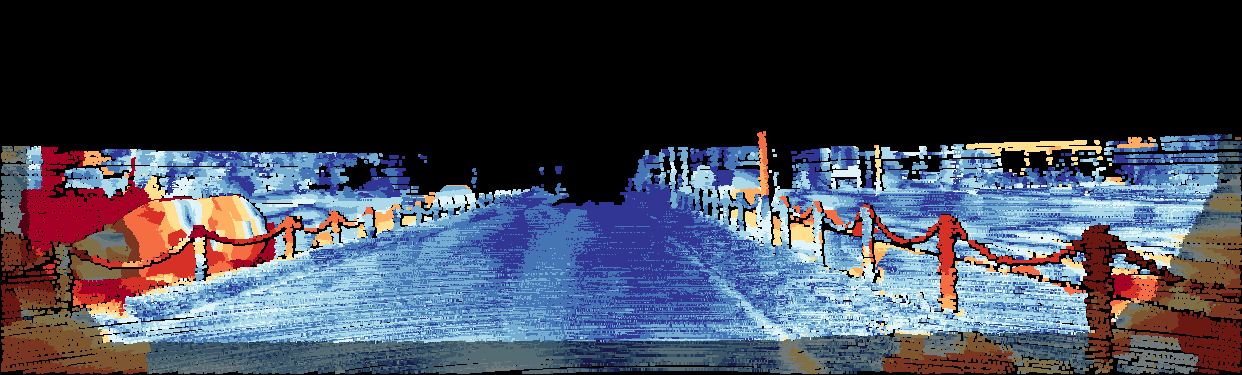

Flow Error


Test Image 4

Error Fl-bg Fl-fg Fl-all
All / All 16.70 27.80 18.54
All / Est 16.70 27.80 18.54
Noc / All 9.30 28.33 12.86
Noc / Est 9.30 28.33 12.86
This table as LaTeX

Input Image

Flow Result

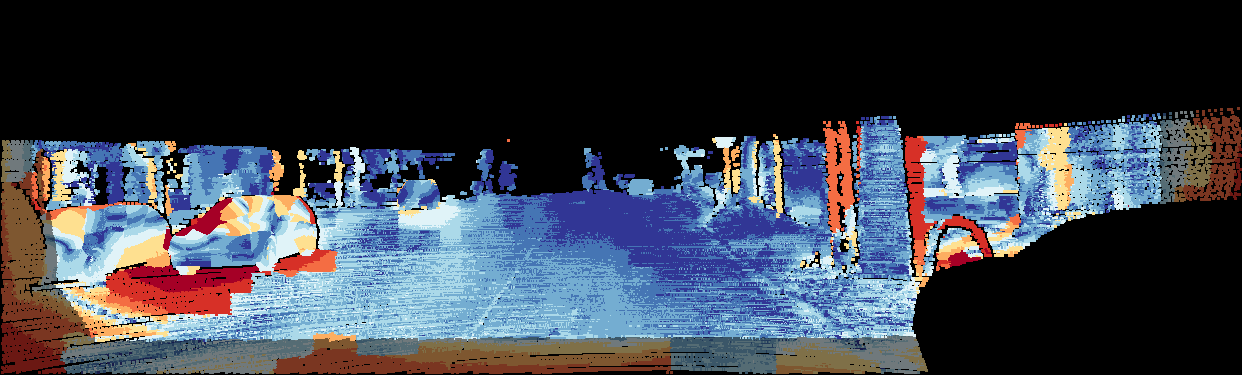

Flow Error


Test Image 5

Error Fl-bg Fl-fg Fl-all
All / All 12.16 0.14 11.08
All / Est 12.16 0.14 11.08
Noc / All 6.83 0.14 6.14
Noc / Est 6.83 0.14 6.14
This table as LaTeX

Input Image

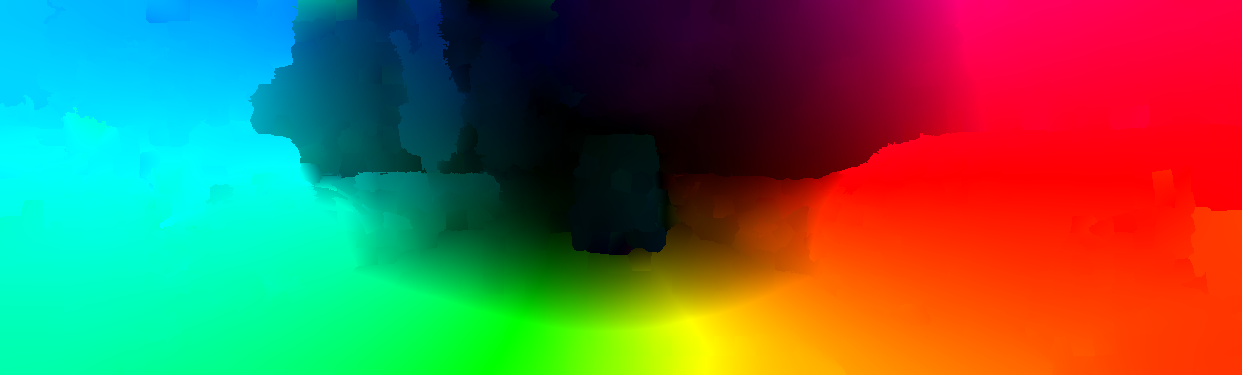

Flow Result

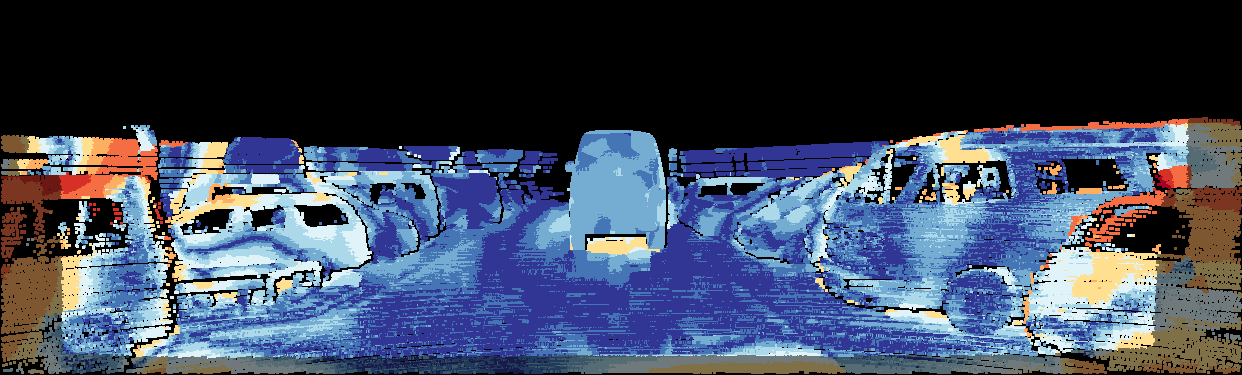

Flow Error


Test Image 6

Error Fl-bg Fl-fg Fl-all
All / All 13.57 0.68 12.21
All / Est 13.57 0.68 12.21
Noc / All 9.78 0.68 8.70
Noc / Est 9.78 0.68 8.70
This table as LaTeX

Input Image

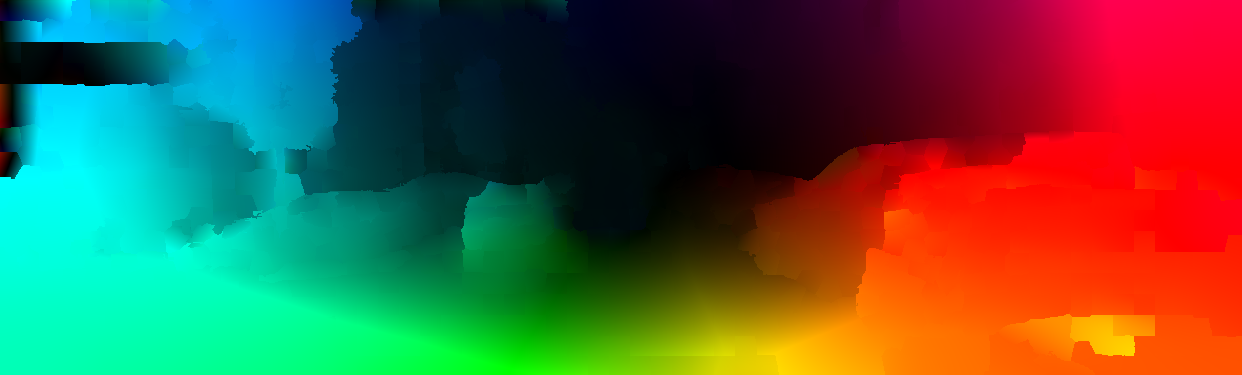

Flow Result

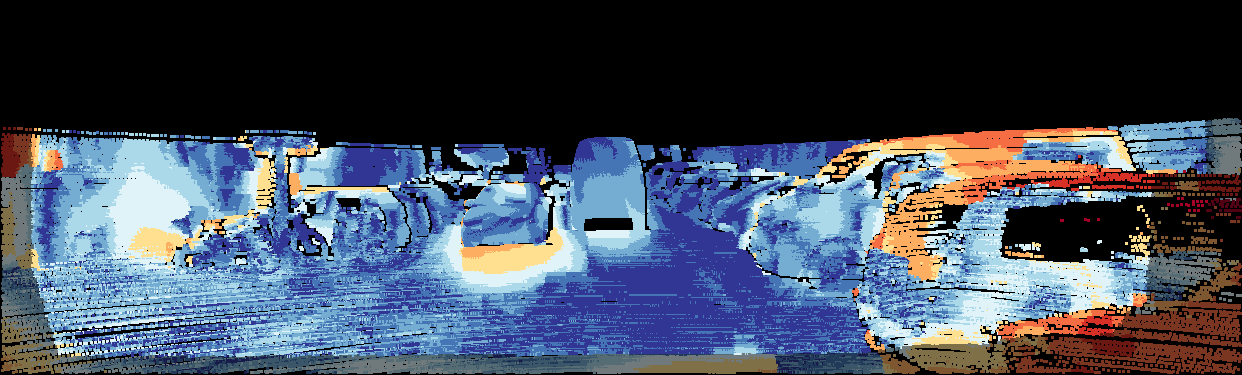

Flow Error


Test Image 7

Error Fl-bg Fl-fg Fl-all
All / All 0.97 69.27 14.34
All / Est 0.97 69.27 14.34
Noc / All 0.97 67.49 13.41
Noc / Est 0.97 67.49 13.41
This table as LaTeX

Input Image

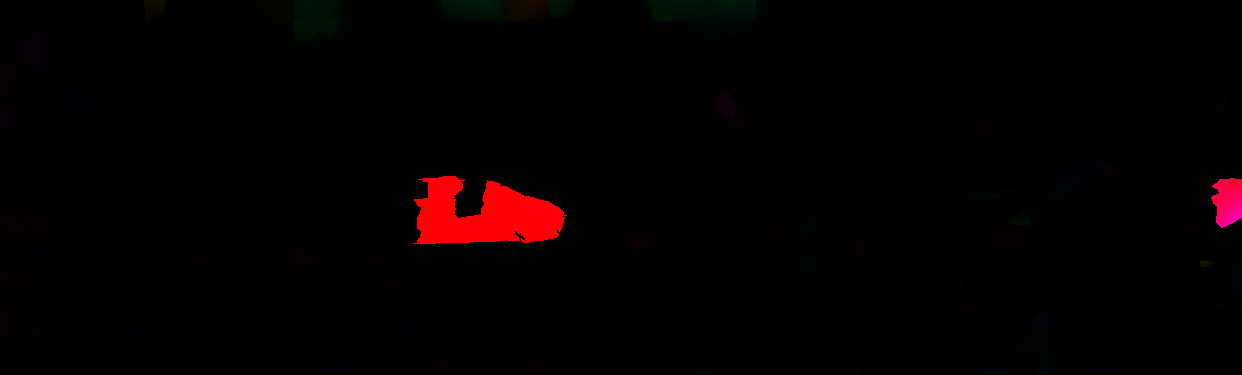

Flow Result

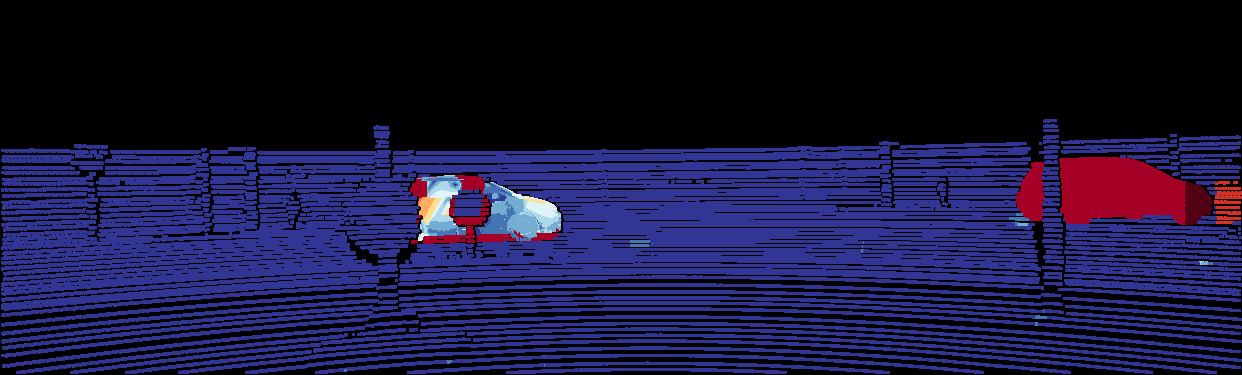

Flow Error


Test Image 8

Error Fl-bg Fl-fg Fl-all
All / All 0.64 4.85 1.42
All / Est 0.64 4.85 1.42
Noc / All 0.64 4.85 1.42
Noc / Est 0.64 4.85 1.42
This table as LaTeX

Input Image

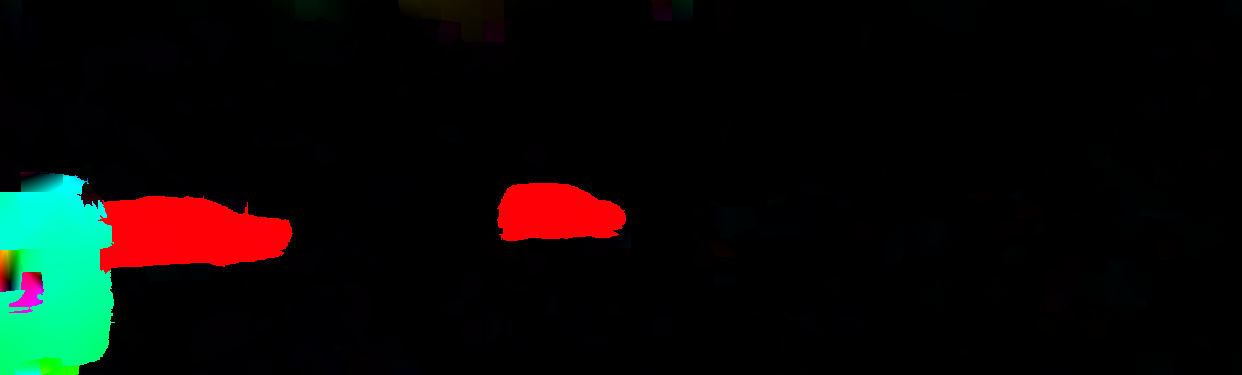

Flow Result

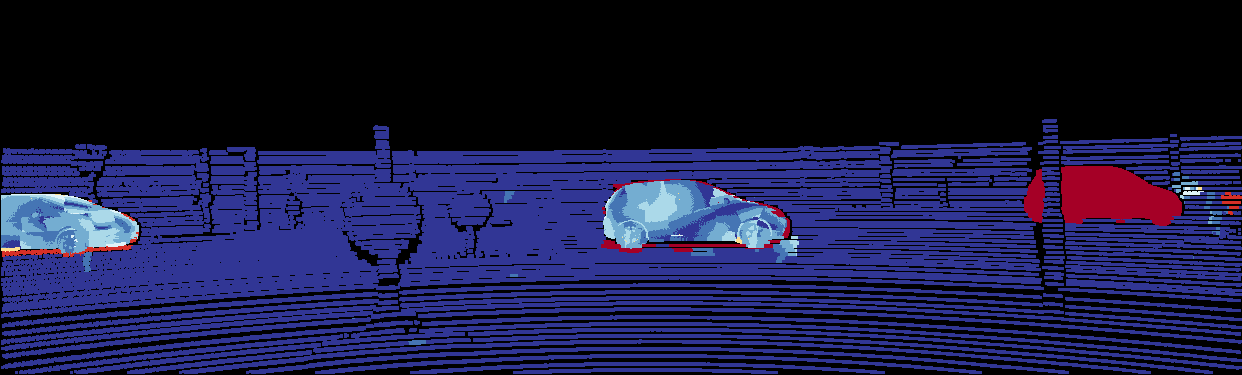

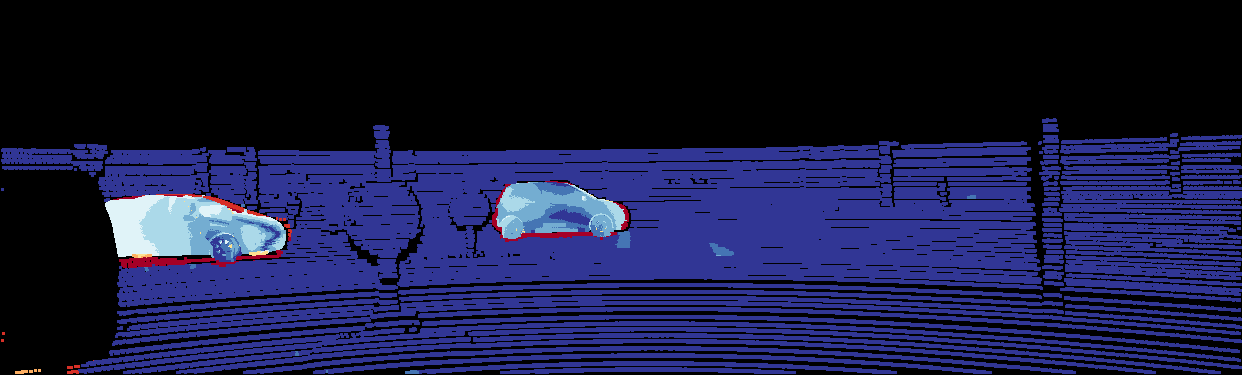

Flow Error


Test Image 9

Error Fl-bg Fl-fg Fl-all
All / All 0.67 28.84 7.86
All / Est 0.67 28.84 7.86
Noc / All 0.67 28.84 7.86
Noc / Est 0.67 28.84 7.86
This table as LaTeX

Input Image

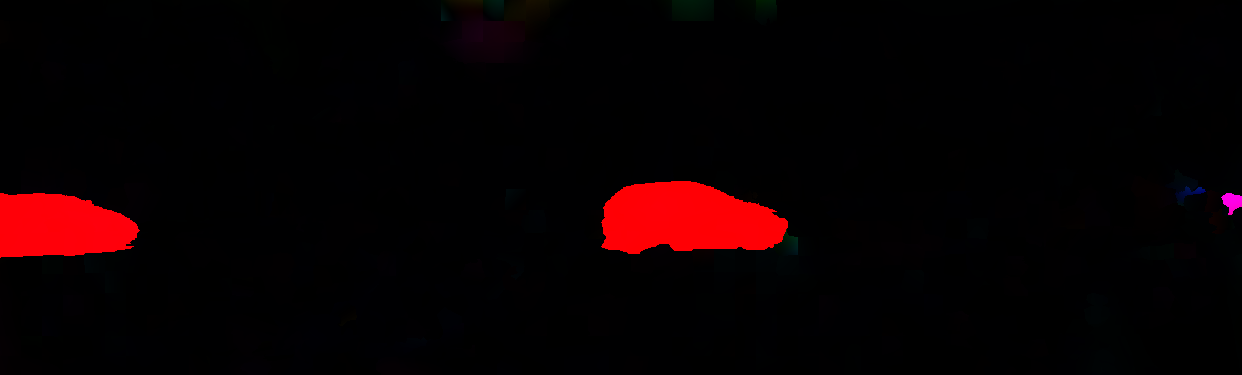

Flow Result

Flow Error


Test Image 10

Error Fl-bg Fl-fg Fl-all
All / All 13.41 8.88 12.38
All / Est 13.41 8.88 12.38
Noc / All 4.19 8.88 5.41
Noc / Est 4.19 8.88 5.41
This table as LaTeX

Input Image

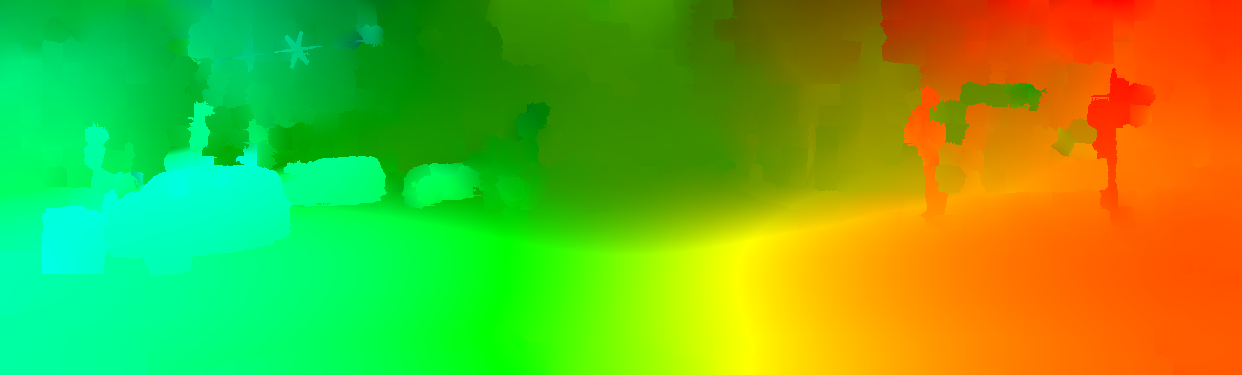

Flow Result

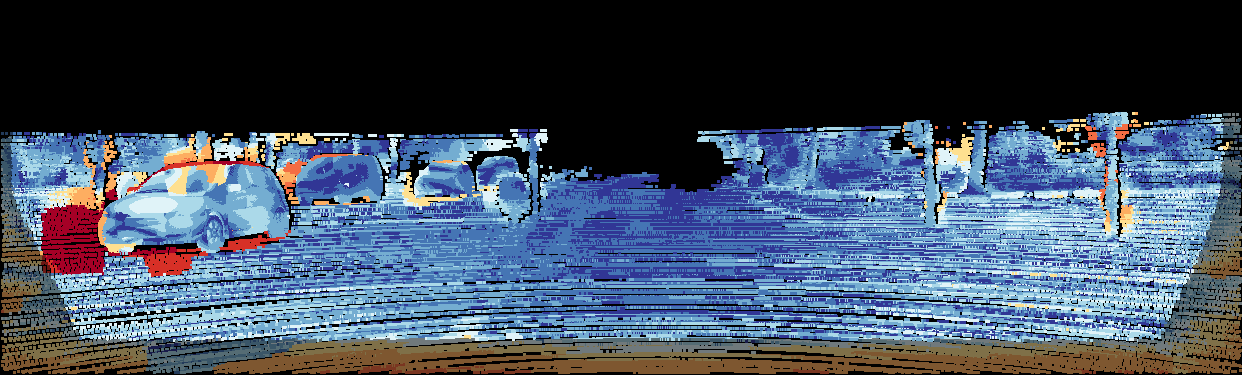

Flow Error


Test Image 11

Error Fl-bg Fl-fg Fl-all
All / All 6.74 7.75 6.92
All / Est 6.74 7.75 6.92
Noc / All 4.64 7.76 5.27
Noc / Est 4.64 7.76 5.27
This table as LaTeX

Input Image

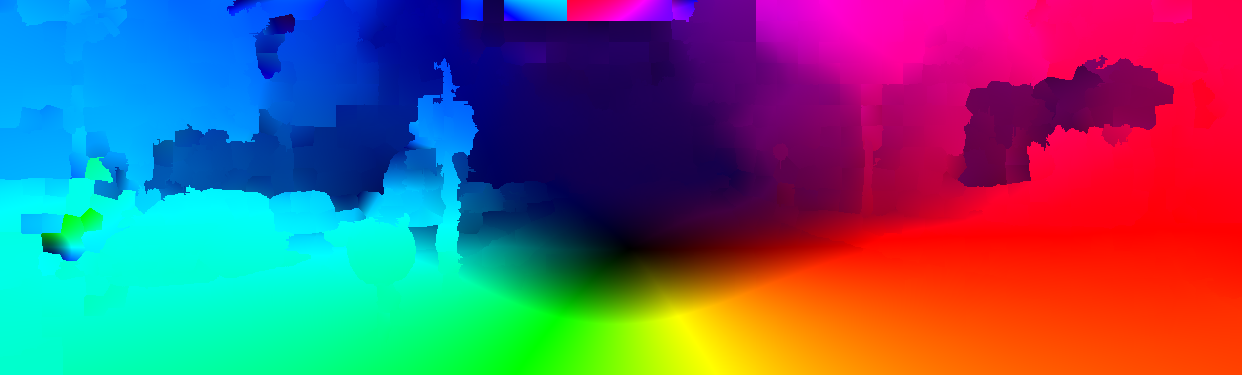

Flow Result

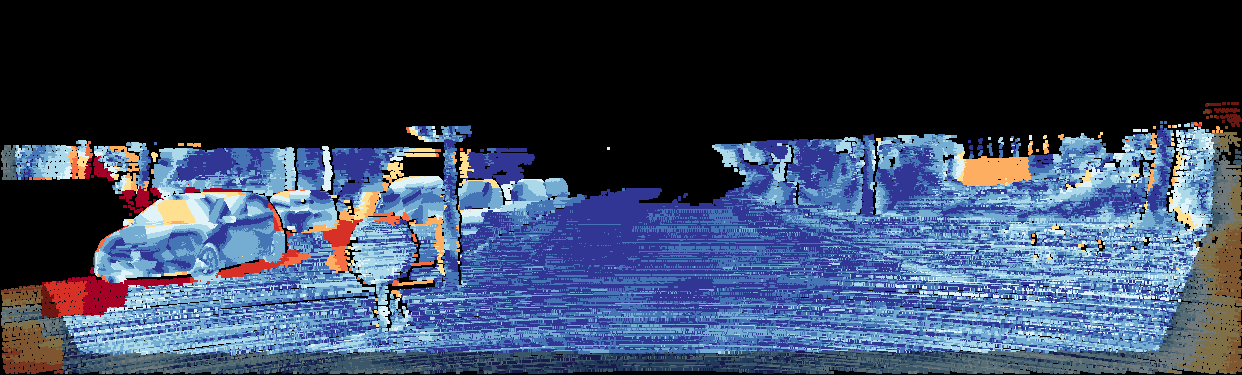

Flow Error


Test Image 12

Error Fl-bg Fl-fg Fl-all
All / All 9.99 6.05 9.72
All / Est 9.99 6.05 9.72
Noc / All 2.98 6.05 3.22
Noc / Est 2.98 6.05 3.22
This table as LaTeX

Input Image

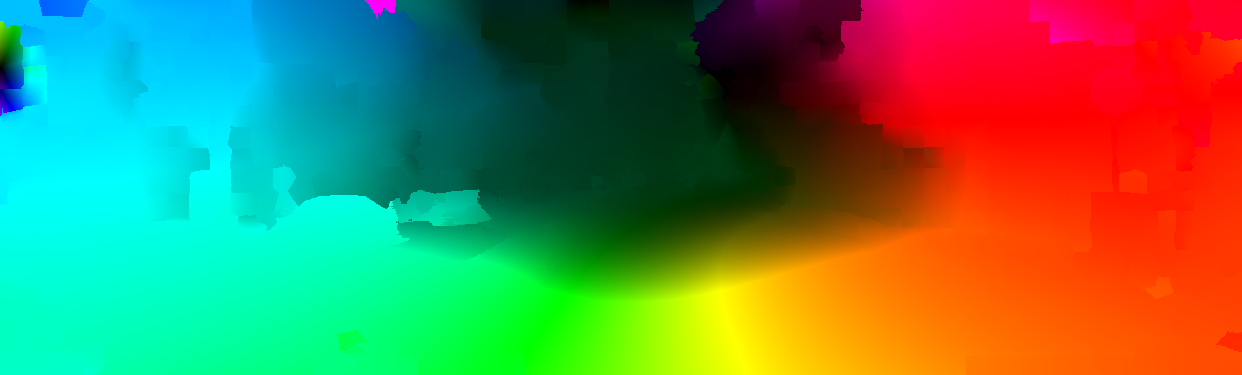

Flow Result

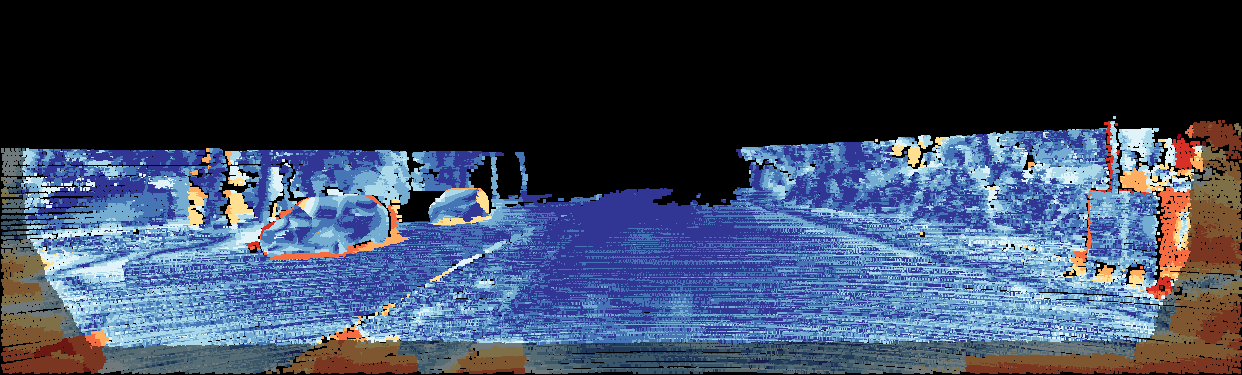

Flow Error


Test Image 13

Error Fl-bg Fl-fg Fl-all
All / All 10.58 19.85 11.72
All / Est 10.58 19.85 11.72
Noc / All 2.90 11.19 3.86
Noc / Est 2.90 11.19 3.86
This table as LaTeX

Input Image

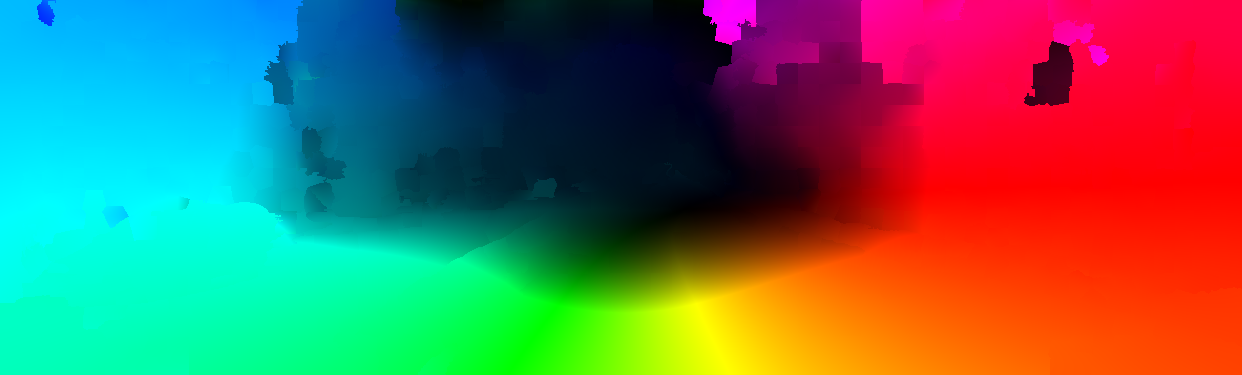

Flow Result

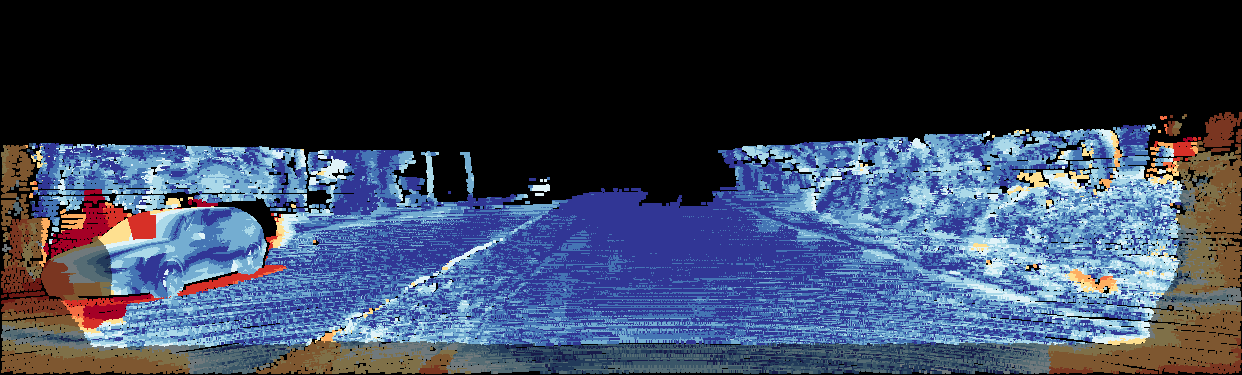

Flow Error


Test Image 14

Error Fl-bg Fl-fg Fl-all
All / All 9.86 4.95 9.77
All / Est 9.86 4.95 9.77
Noc / All 2.83 4.95 2.88
Noc / Est 2.83 4.95 2.88
This table as LaTeX

Input Image

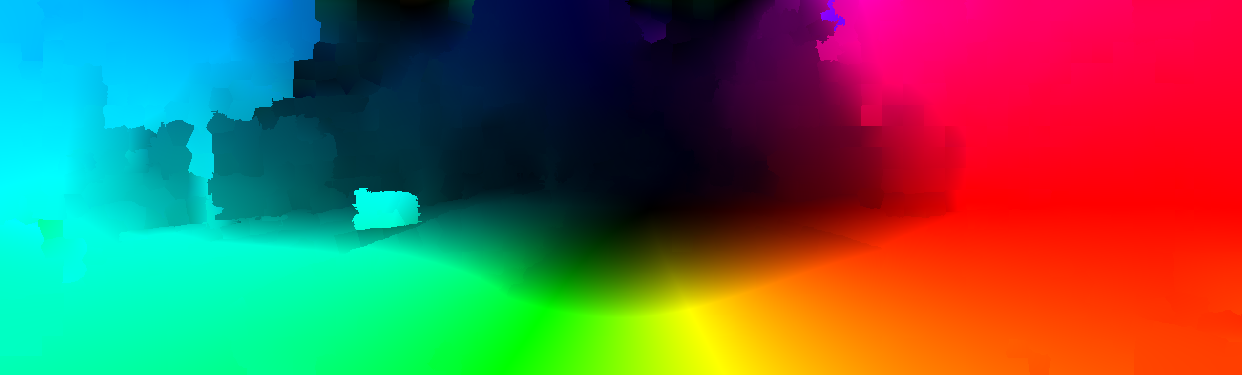

Flow Result

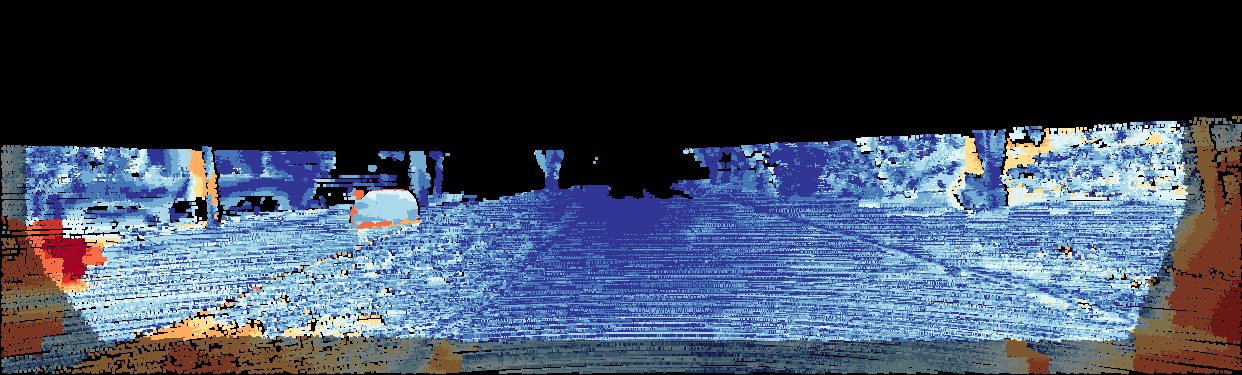

Flow Error


Test Image 15

Error Fl-bg Fl-fg Fl-all
All / All 28.56 8.10 26.70
All / Est 28.56 8.10 26.70
Noc / All 14.02 8.10 13.34
Noc / Est 14.02 8.10 13.34
This table as LaTeX

Input Image

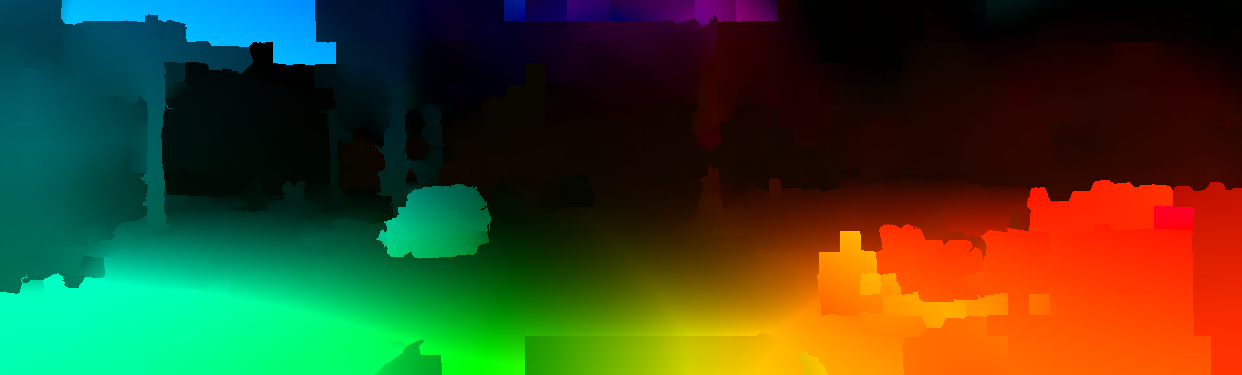

Flow Result

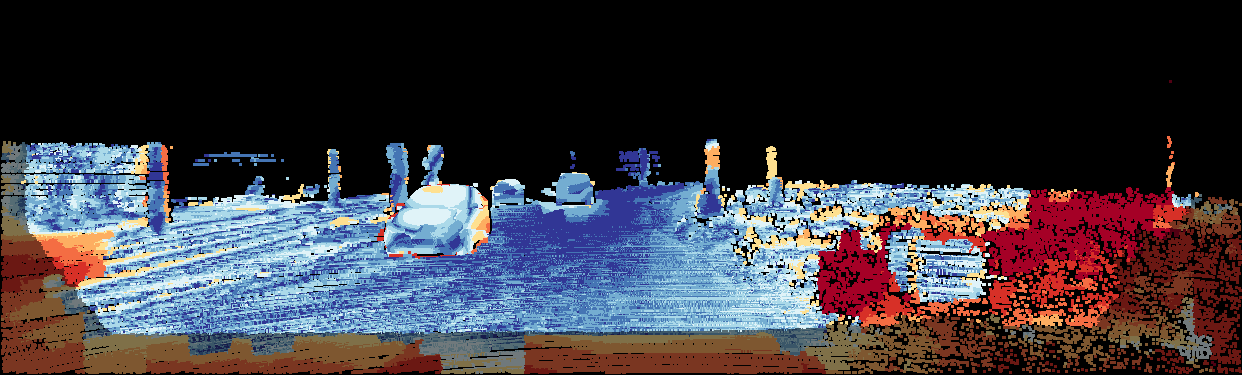

Flow Error


Test Image 16

Error Fl-bg Fl-fg Fl-all
All / All 26.76 35.00 27.98
All / Est 26.76 35.00 27.98
Noc / All 12.91 35.00 16.88
Noc / Est 12.91 35.00 16.88
This table as LaTeX

Input Image

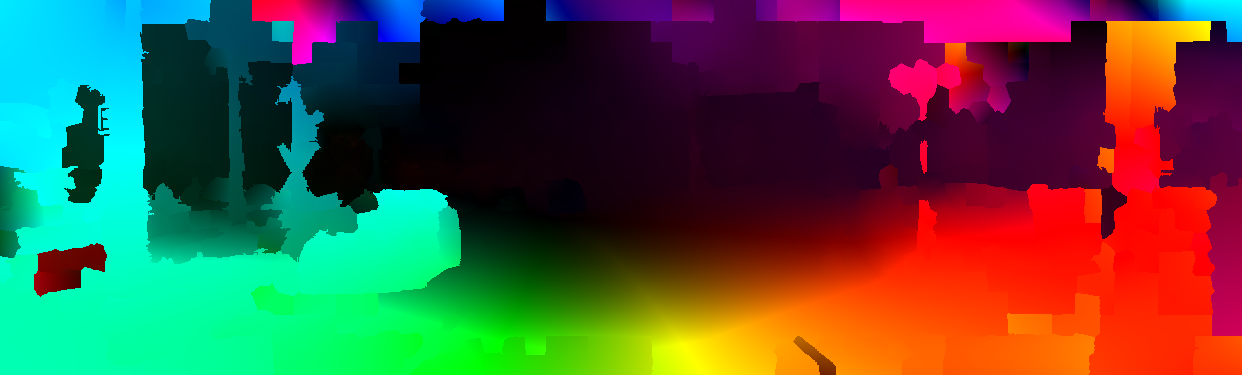

Flow Result

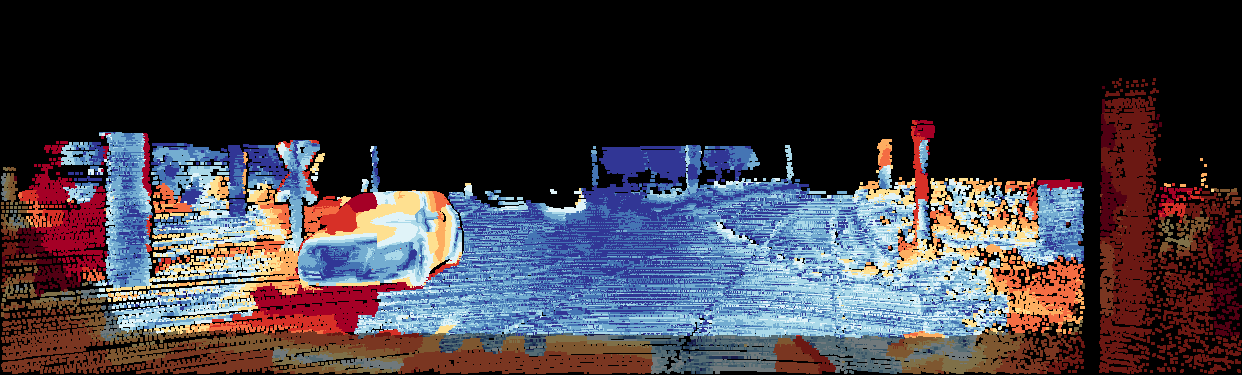

Flow Error


Test Image 17

Error Fl-bg Fl-fg Fl-all
All / All 20.75 27.51 21.45
All / Est 20.75 27.51 21.45
Noc / All 9.50 27.51 11.83
Noc / Est 9.50 27.51 11.83
This table as LaTeX

Input Image

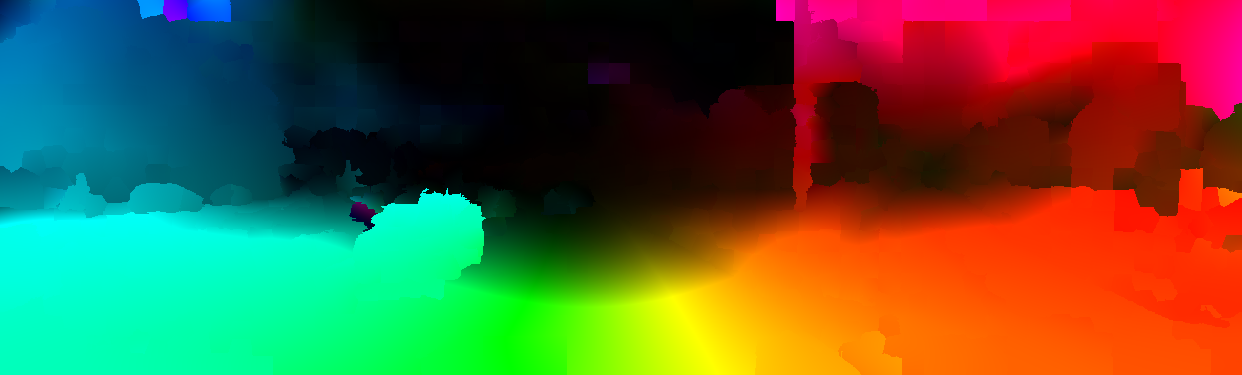

Flow Result

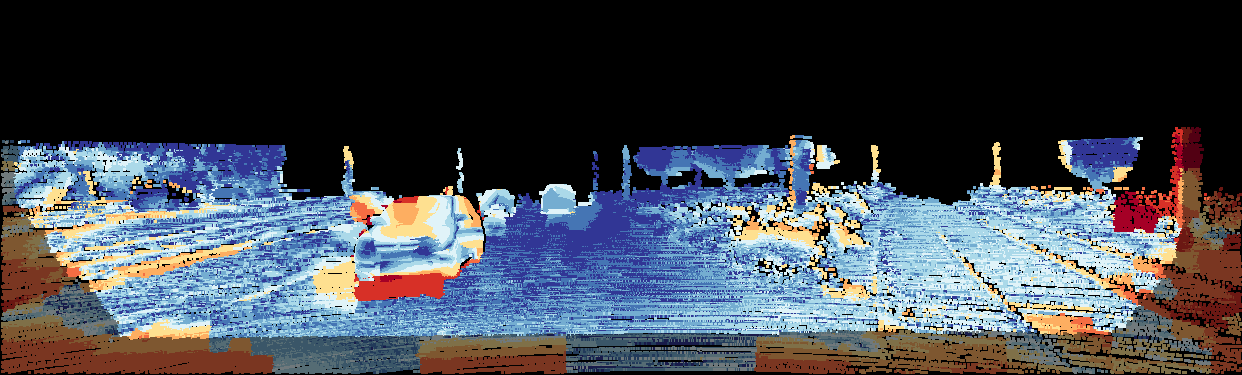

Flow Error


Test Image 18

Error Fl-bg Fl-fg Fl-all
All / All 29.82 98.95 62.67
All / Est 29.82 98.95 62.67
Noc / All 17.04 96.66 39.00
Noc / Est 17.04 96.66 39.00
This table as LaTeX

Input Image

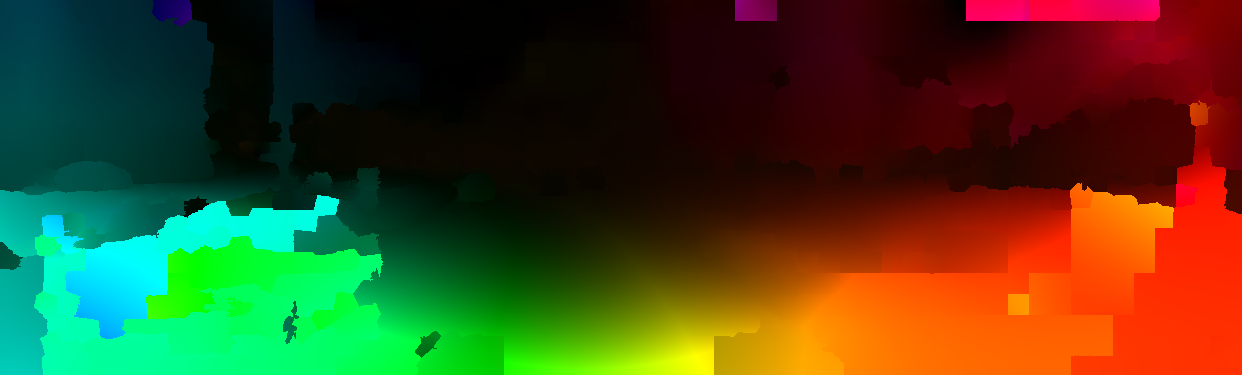

Flow Result

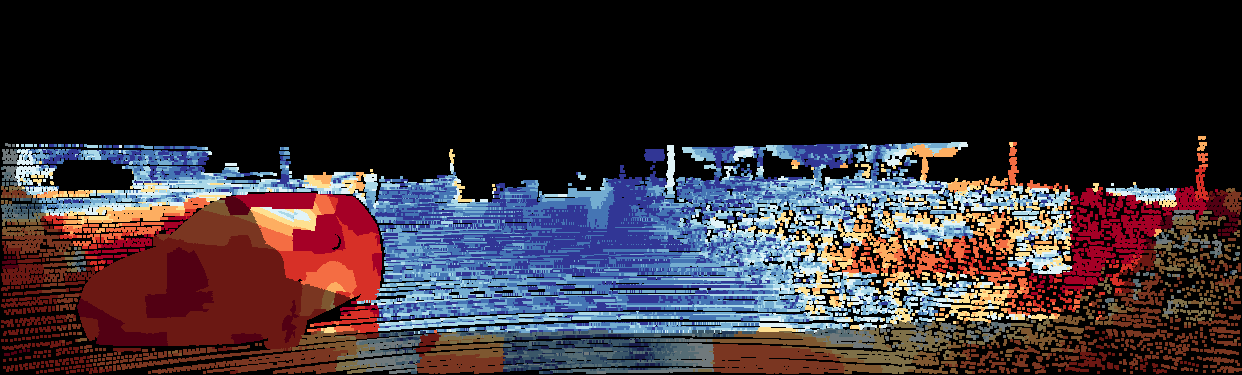

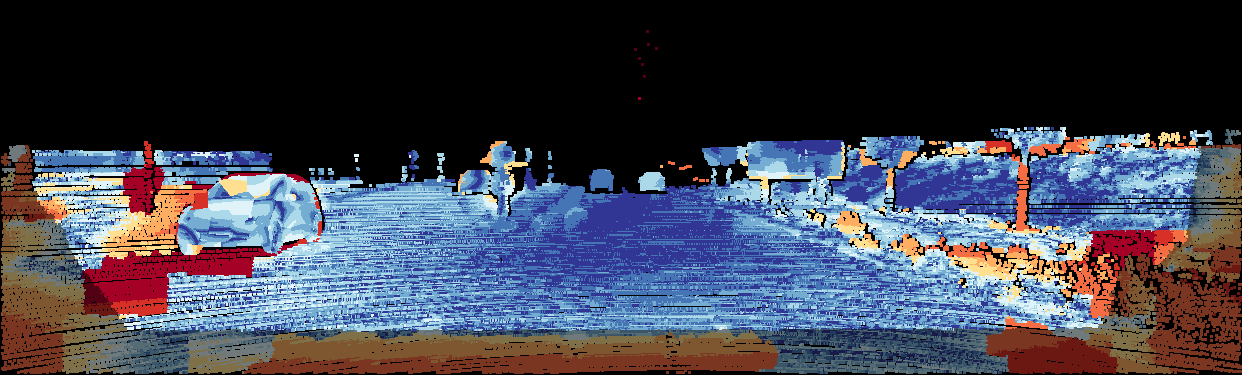

Flow Error


Test Image 19

Error Fl-bg Fl-fg Fl-all
All / All 22.50 10.14 21.10
All / Est 22.50 10.14 21.10
Noc / All 9.07 10.14 9.22
Noc / Est 9.07 10.14 9.22
This table as LaTeX

Input Image

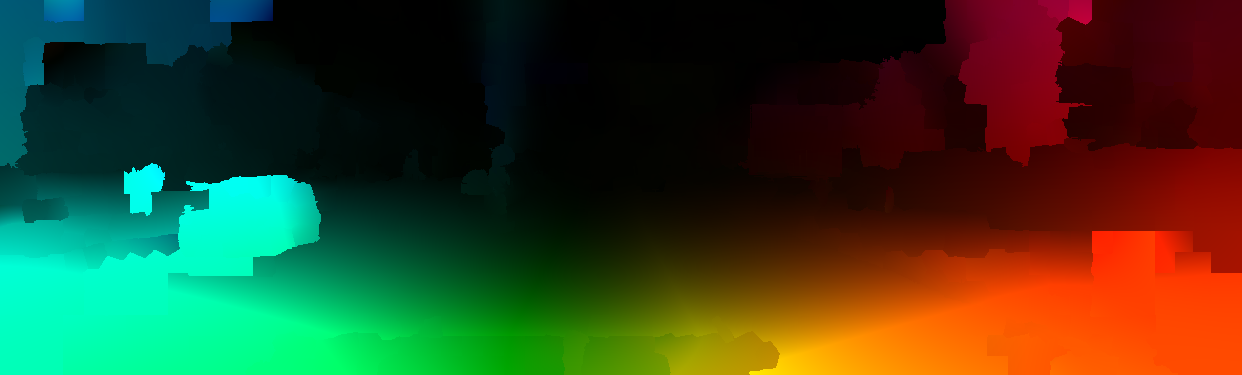

Flow Result

Flow Error
