Method

Exploiting Semantic Information and Deep Matching for Optical Flow [SDF]


Submitted on 16 Jul. 2016 16:14 by
Min Bai (University of Toronto)

Running time:TBA
Environment:1 core @ 2.5 Ghz (C/C++)

Method Description:
Leveraging semantic information, deep learning, and epipolar
constraints, we perform accurate optical flow estimation.
Parameters:
\alpha=0.2
Latex Bibtex:
@inproceedings{Bai2016ECCV,
author = {M. Bai* and W. Luo* and K. Kundu and R.
Urtasun},
title = {{Exploiting Semantic Information and Deep
Matching for Optical Flow}},
year = {2016},
booktitle = {ECCV},
}

Detailed Results

This page provides detailed results for the method(s) selected. For the first 20 test images, the percentage of erroneous pixels is depicted in the table. We use the error metric described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), which considers a pixel to be correctly estimated if the disparity or flow end-point error is <3px or <5% (for scene flow this criterion needs to be fulfilled for both disparity maps and the flow map). Underneath, the left input image, the estimated results and the error maps are shown (for disp_0/disp_1/flow/scene_flow, respectively). The error map uses the log-color scale described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), depicting correct estimates (<3px or <5% error) in blue and wrong estimates in red color tones. Dark regions in the error images denote the occluded pixels which fall outside the image boundaries. The false color maps of the results are scaled to the largest ground truth disparity values / flow magnitudes.

Test Set Average

Error Fl-bg Fl-fg Fl-all
All / All 8.61 26.69 11.62
All / Est 8.61 26.69 11.62
Noc / All 5.75 22.28 8.75
Noc / Est 5.75 22.28 8.75
This table as LaTeX

Test Image 0

Error Fl-bg Fl-fg Fl-all
All / All 5.38 31.08 8.91
All / Est 5.38 31.08 8.91
Noc / All 5.24 31.08 9.16
Noc / Est 5.24 31.08 9.16
This table as LaTeX

Input Image

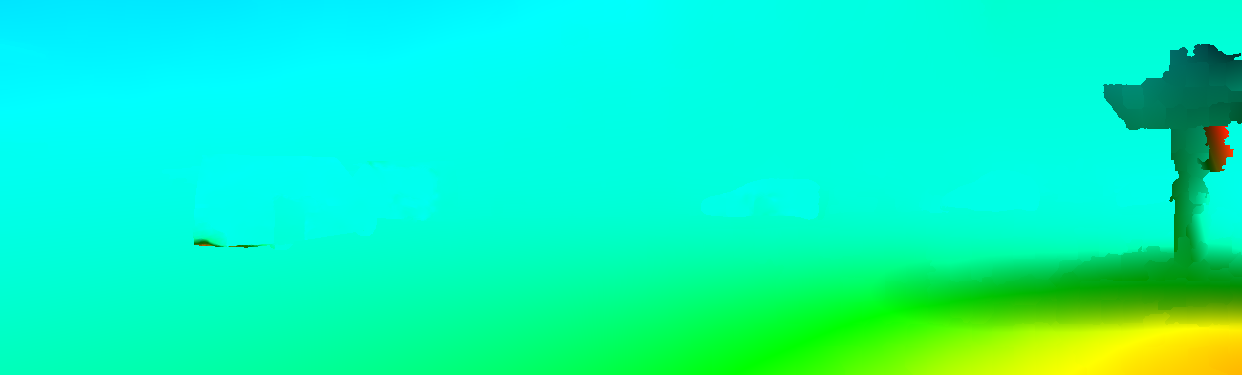

Flow Result

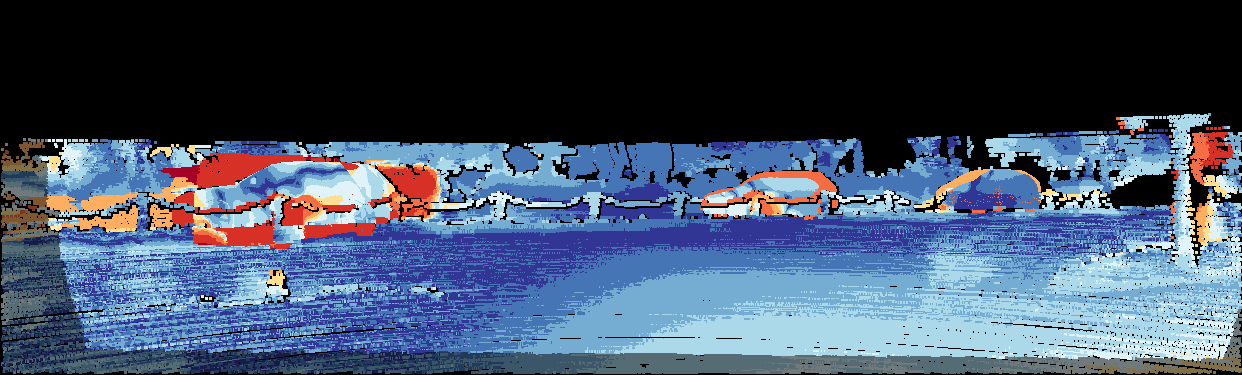

Flow Error


Test Image 1

Error Fl-bg Fl-fg Fl-all
All / All 4.75 37.69 8.43
All / Est 4.75 37.69 8.43
Noc / All 3.79 37.69 7.98
Noc / Est 3.79 37.69 7.98
This table as LaTeX

Input Image

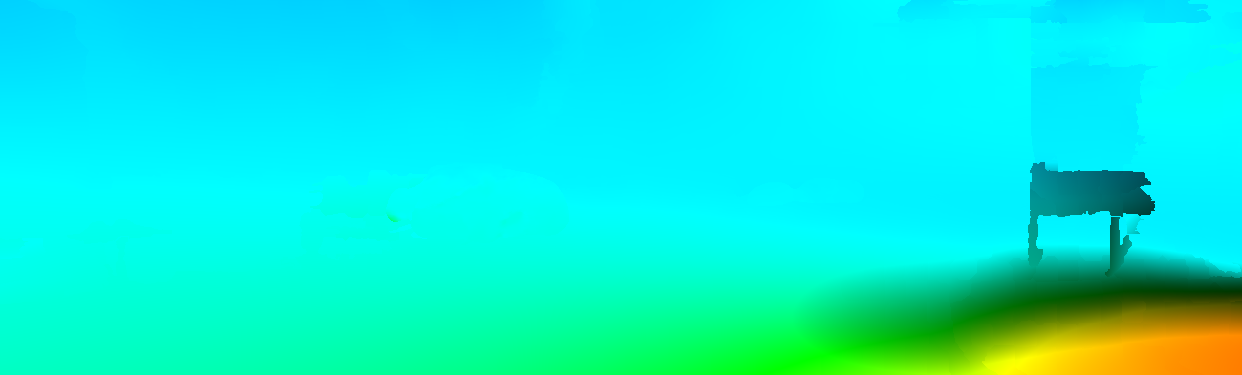

Flow Result

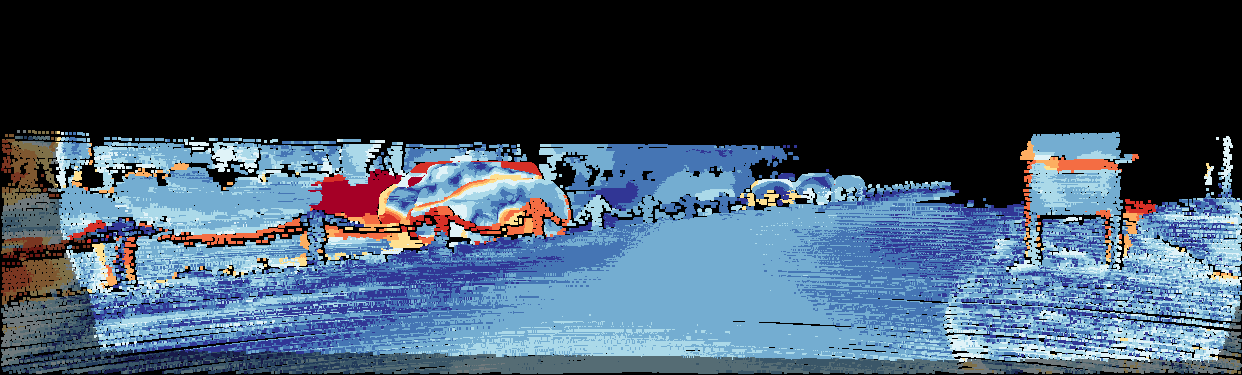

Flow Error


Test Image 2

Error Fl-bg Fl-fg Fl-all
All / All 8.41 16.02 8.78
All / Est 8.41 16.02 8.78
Noc / All 6.45 16.02 7.01
Noc / Est 6.45 16.02 7.01
This table as LaTeX

Input Image

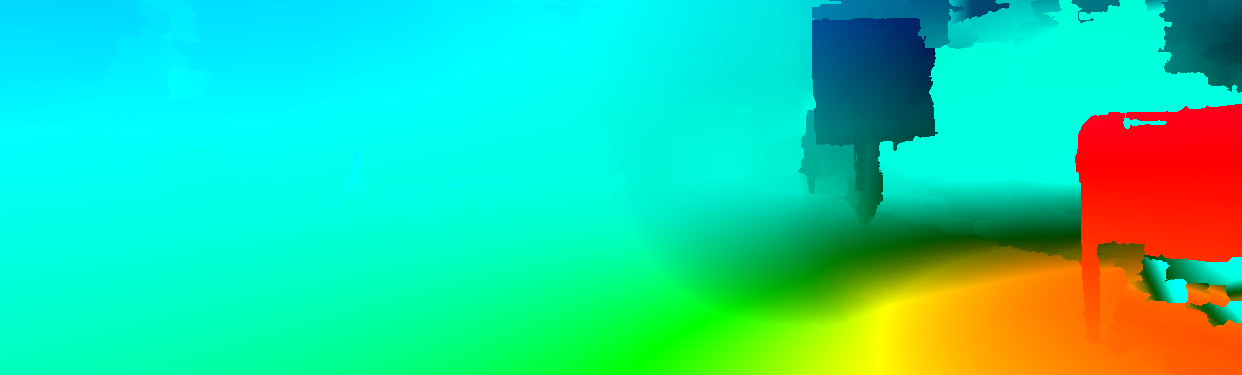

Flow Result

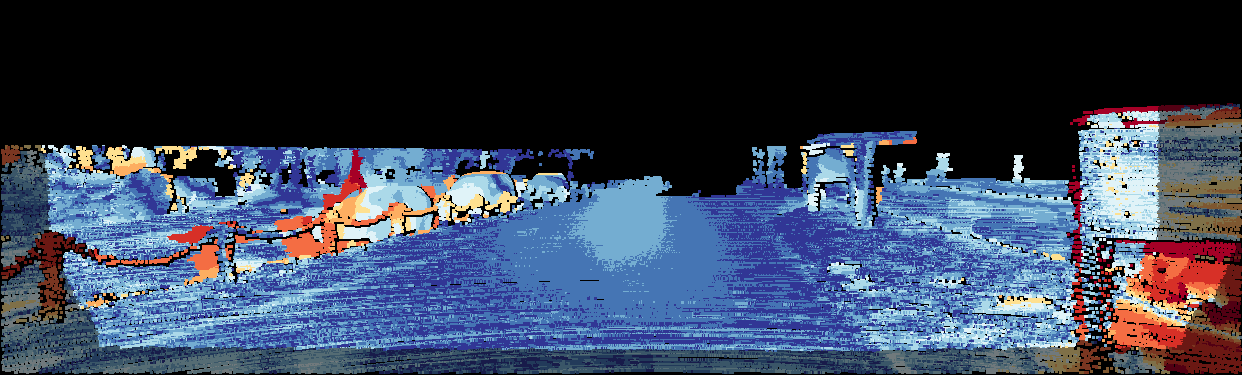

Flow Error


Test Image 3

Error Fl-bg Fl-fg Fl-all
All / All 8.89 63.22 13.91
All / Est 8.89 63.22 13.91
Noc / All 6.77 50.91 10.57
Noc / Est 6.77 50.91 10.57
This table as LaTeX

Input Image

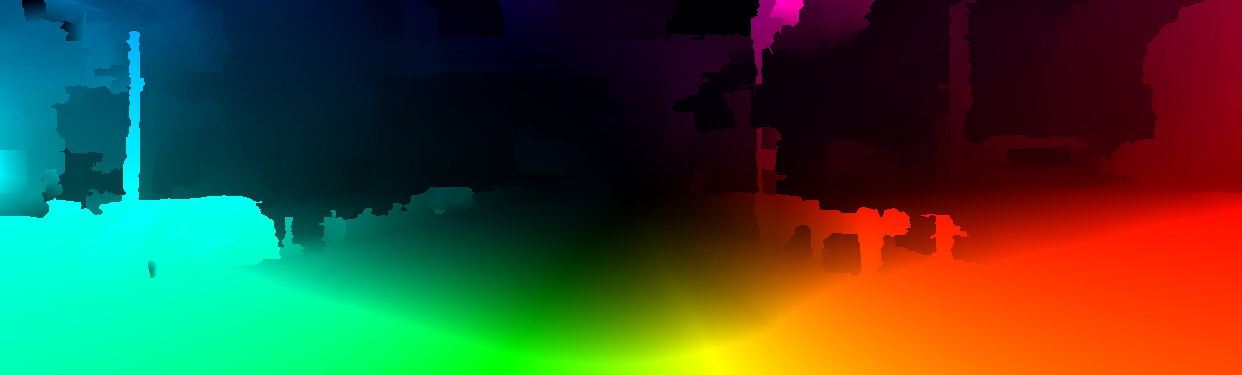

Flow Result

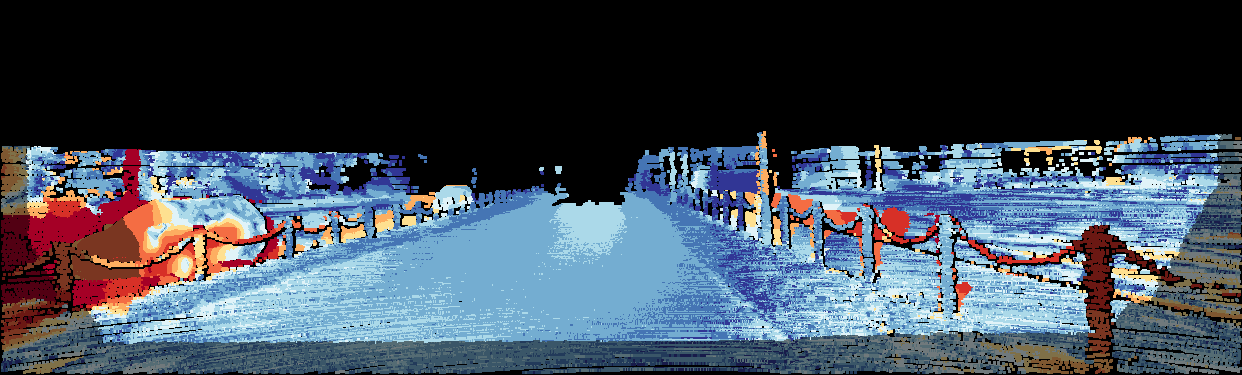

Flow Error


Test Image 4

Error Fl-bg Fl-fg Fl-all
All / All 9.89 40.89 15.03
All / Est 9.89 40.89 15.03
Noc / All 8.16 40.61 14.23
Noc / Est 8.16 40.61 14.23
This table as LaTeX

Input Image

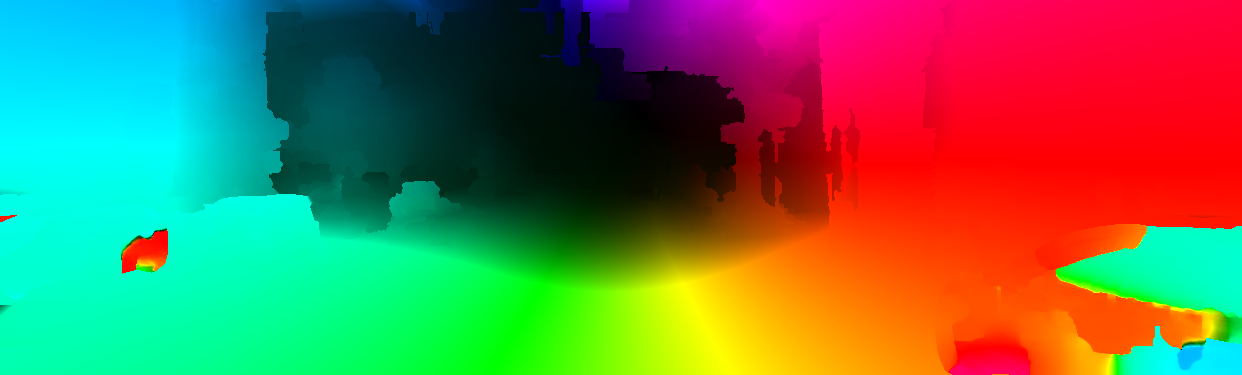

Flow Result

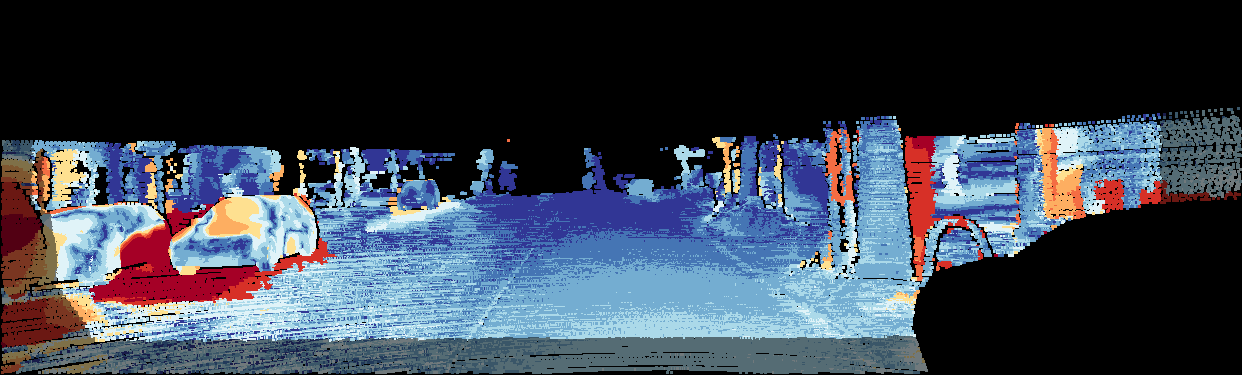

Flow Error


Test Image 5

Error Fl-bg Fl-fg Fl-all
All / All 12.79 3.08 11.92
All / Est 12.79 3.08 11.92
Noc / All 7.77 3.08 7.29
Noc / Est 7.77 3.08 7.29
This table as LaTeX

Input Image

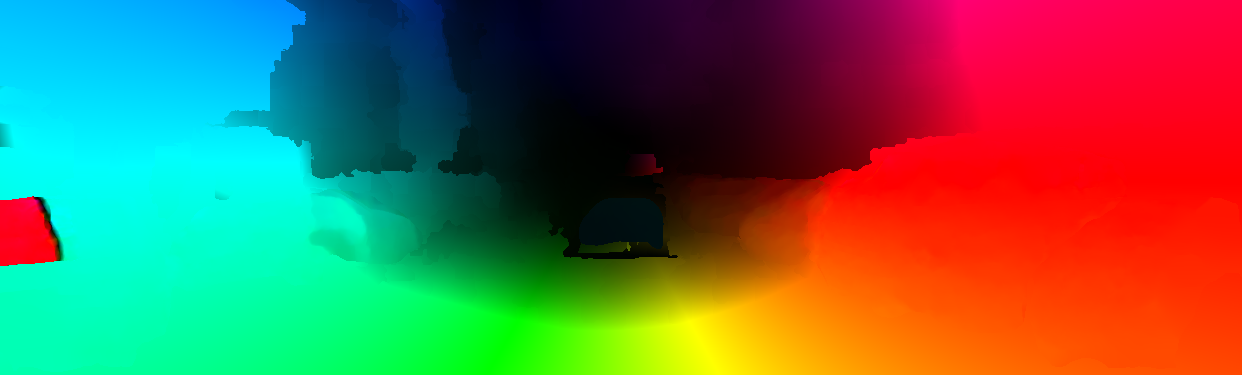

Flow Result

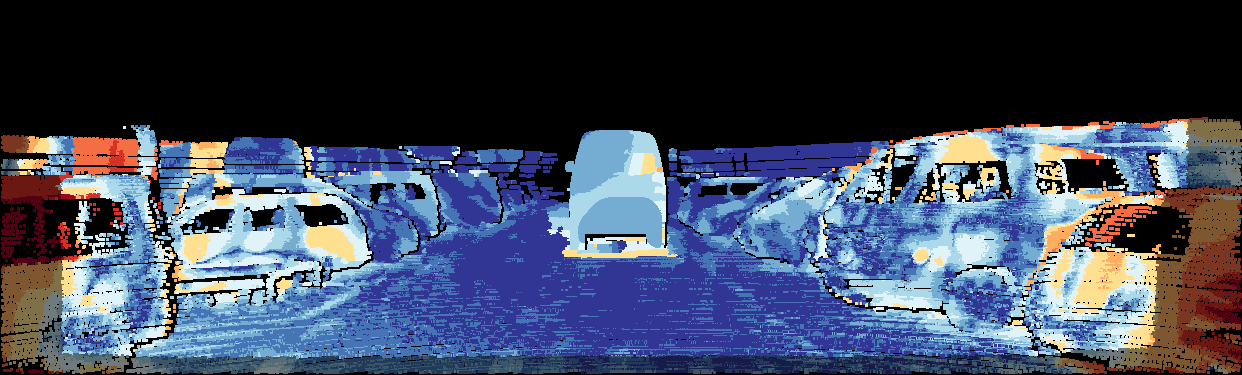

Flow Error


Test Image 6

Error Fl-bg Fl-fg Fl-all
All / All 12.09 1.67 10.99
All / Est 12.09 1.67 10.99
Noc / All 9.24 1.67 8.34
Noc / Est 9.24 1.67 8.34
This table as LaTeX

Input Image

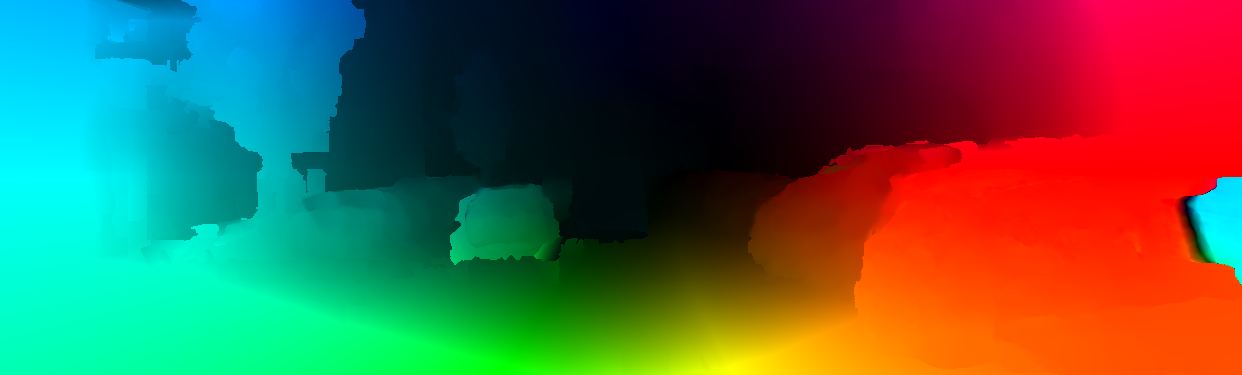

Flow Result

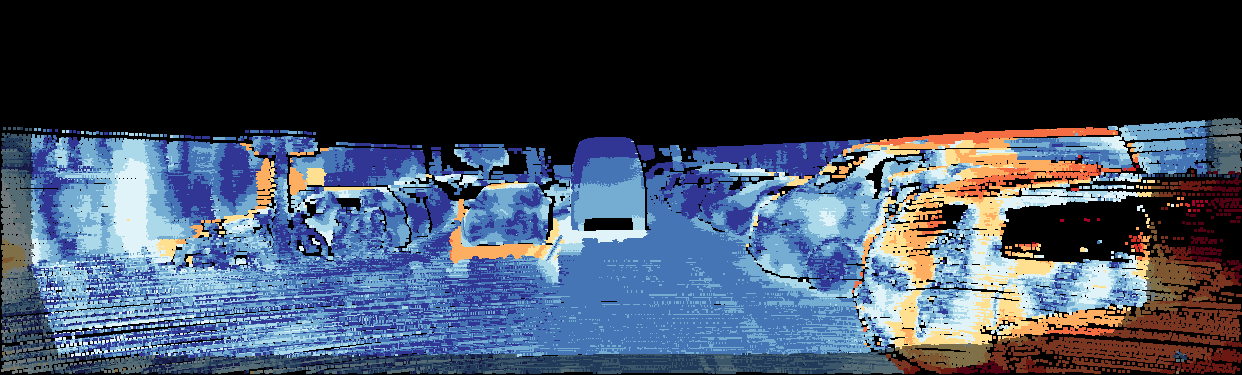

Flow Error


Test Image 7

Error Fl-bg Fl-fg Fl-all
All / All 1.27 46.58 10.14
All / Est 1.27 46.58 10.14
Noc / All 1.27 43.48 9.16
Noc / Est 1.27 43.48 9.16
This table as LaTeX

Input Image

Flow Result

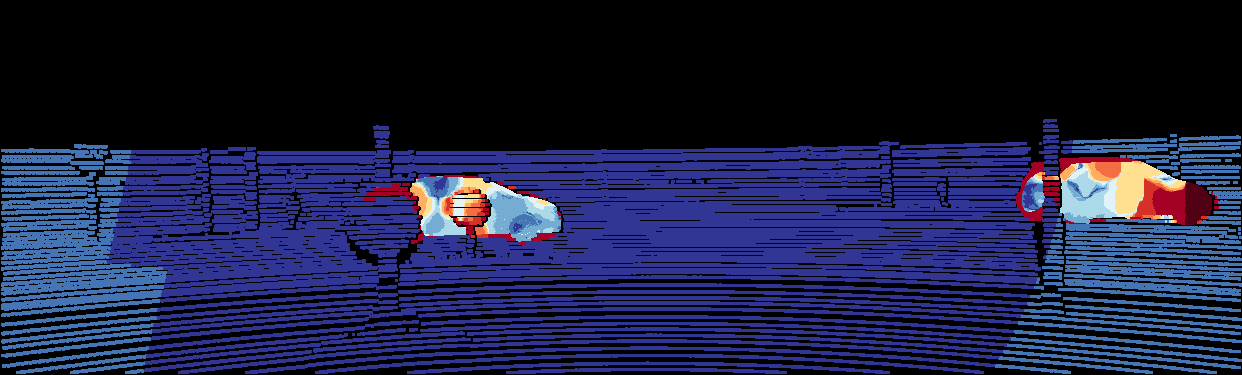

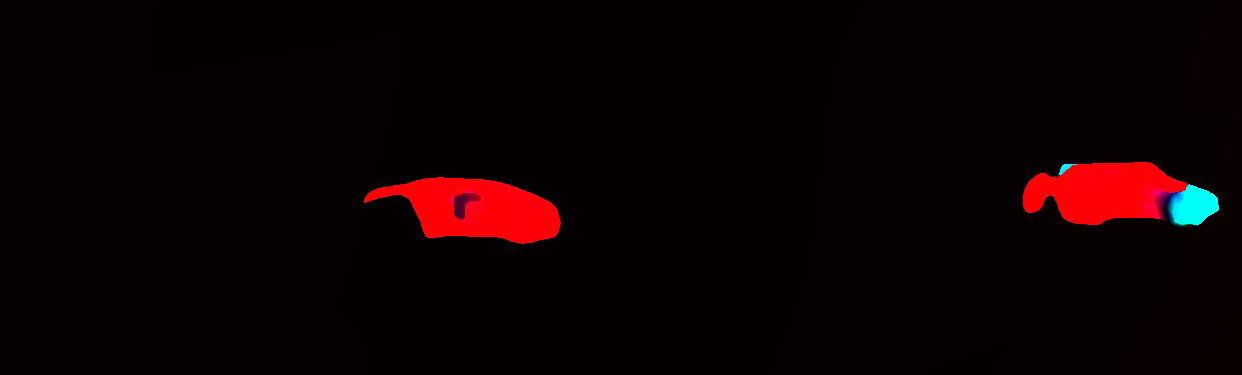

Flow Error


Test Image 8

Error Fl-bg Fl-fg Fl-all
All / All 0.25 13.18 2.64
All / Est 0.25 13.18 2.64
Noc / All 0.25 13.18 2.64
Noc / Est 0.25 13.18 2.64
This table as LaTeX

Input Image

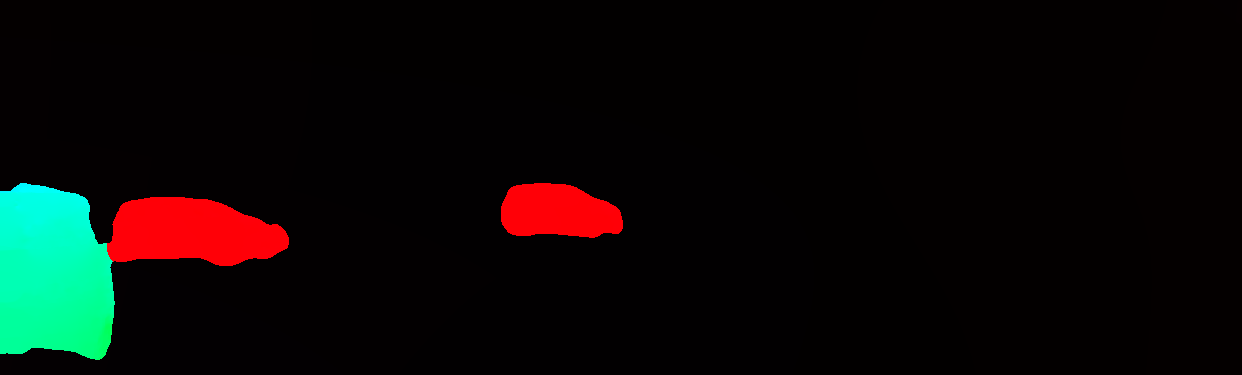

Flow Result

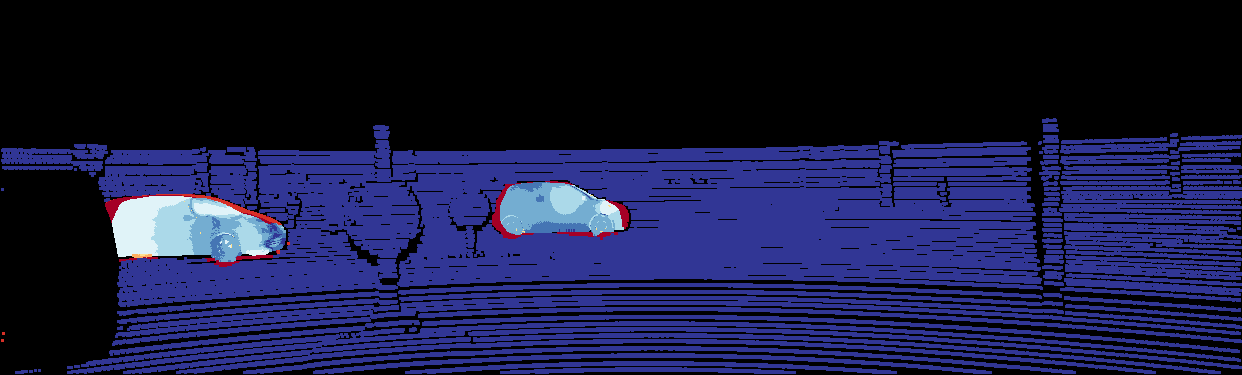

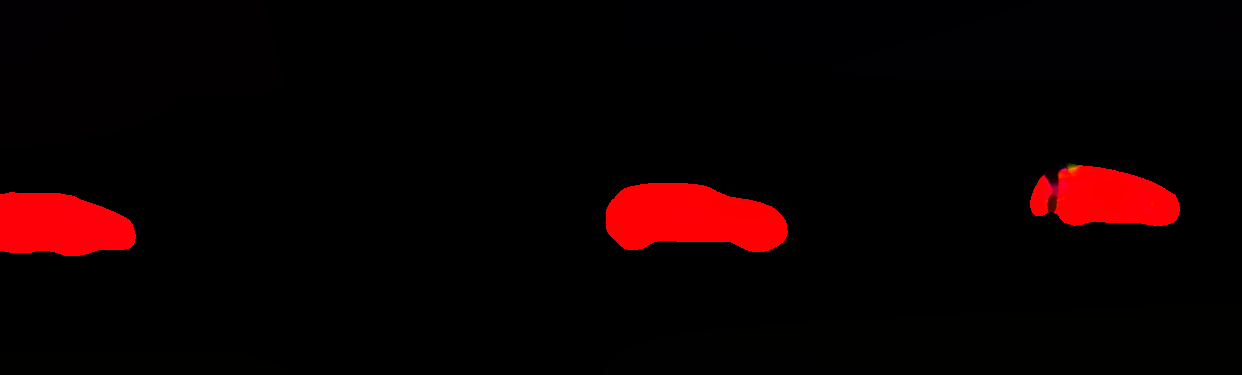

Flow Error


Test Image 9

Error Fl-bg Fl-fg Fl-all
All / All 0.53 13.39 3.82
All / Est 0.53 13.39 3.82
Noc / All 0.53 13.39 3.82
Noc / Est 0.53 13.39 3.82
This table as LaTeX

Input Image

Flow Result

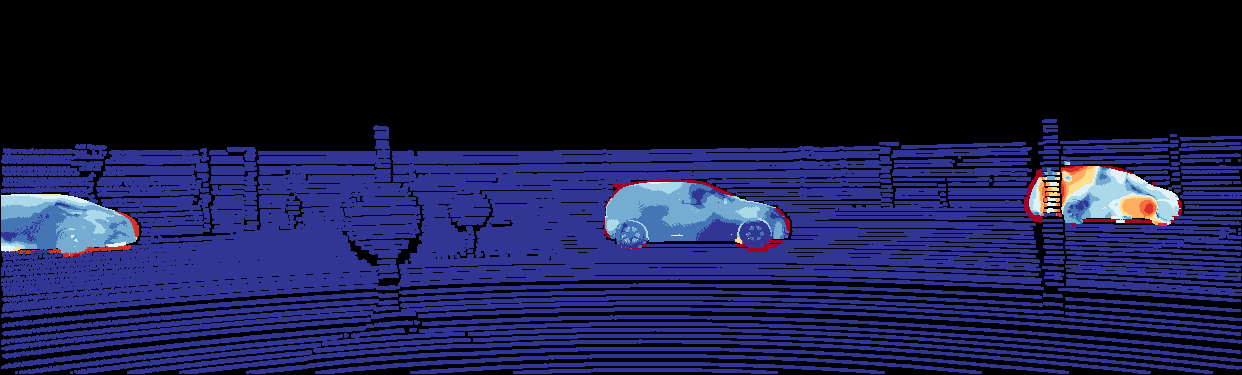

Flow Error


Test Image 10

Error Fl-bg Fl-fg Fl-all
All / All 5.62 7.58 6.07
All / Est 5.62 7.58 6.07
Noc / All 5.65 7.58 6.15
Noc / Est 5.65 7.58 6.15
This table as LaTeX

Input Image

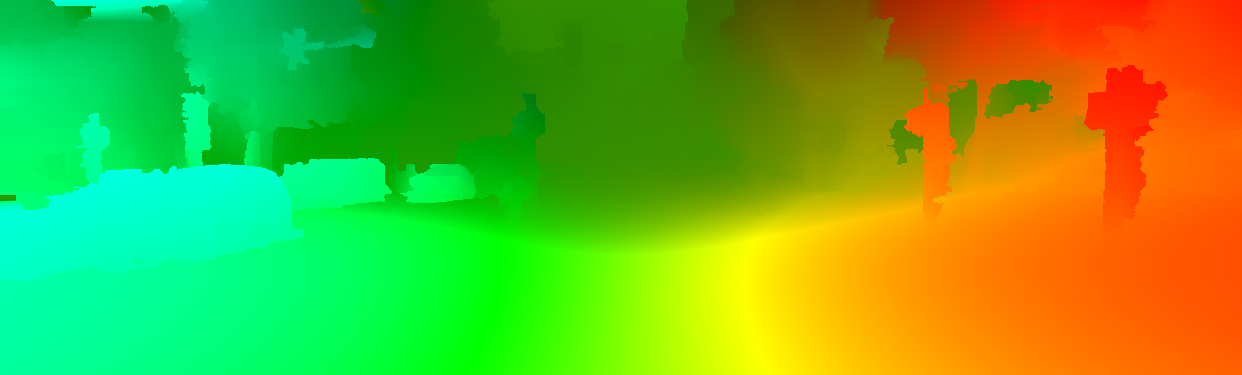

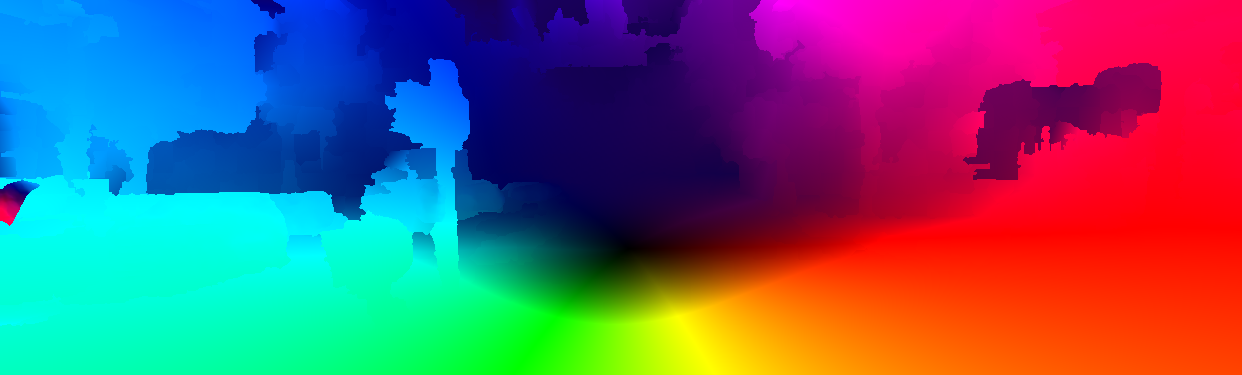

Flow Result

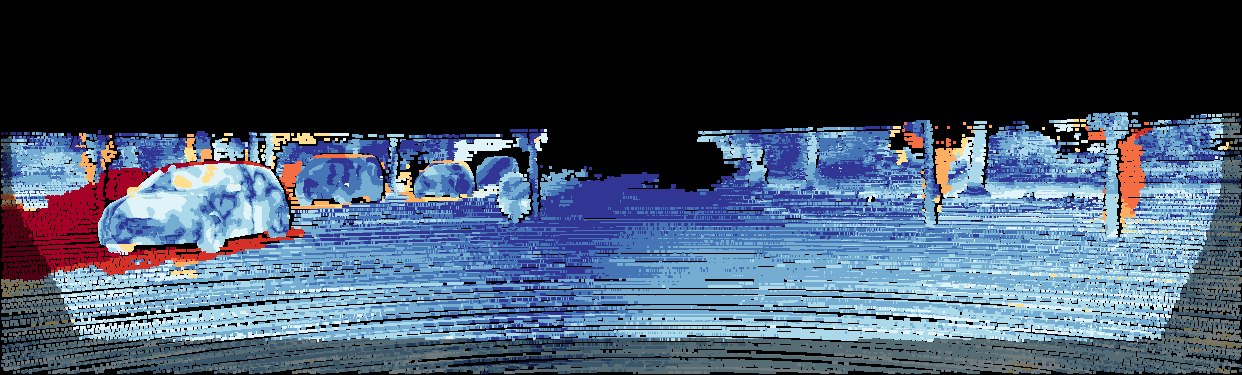

Flow Error


Test Image 11

Error Fl-bg Fl-fg Fl-all
All / All 5.00 5.63 5.12
All / Est 5.00 5.63 5.12
Noc / All 4.56 5.60 4.77
Noc / Est 4.56 5.60 4.77
This table as LaTeX

Input Image

Flow Result

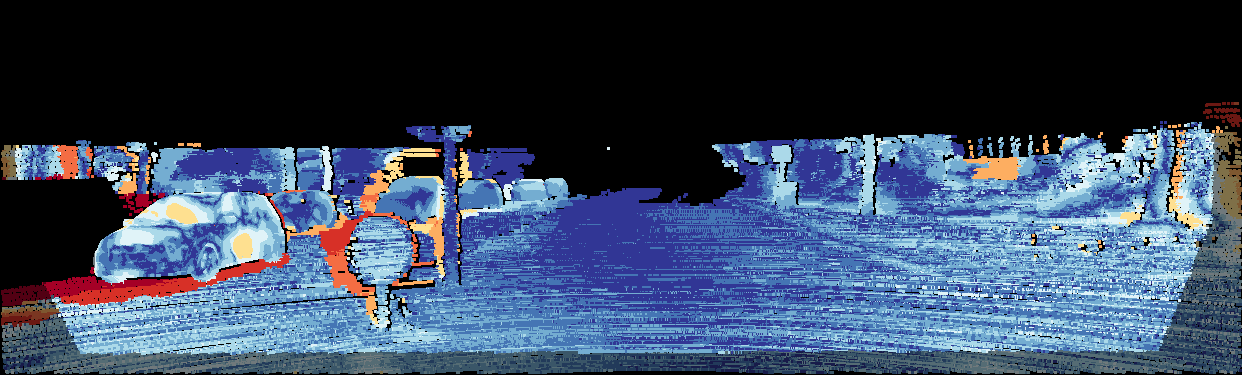

Flow Error


Test Image 12

Error Fl-bg Fl-fg Fl-all
All / All 4.88 1.47 4.65
All / Est 4.88 1.47 4.65
Noc / All 3.07 1.47 2.94
Noc / Est 3.07 1.47 2.94
This table as LaTeX

Input Image

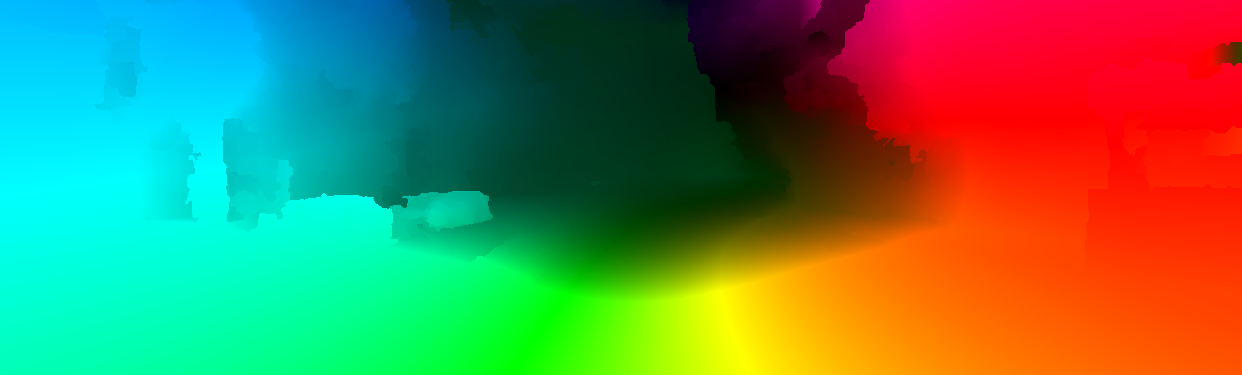

Flow Result

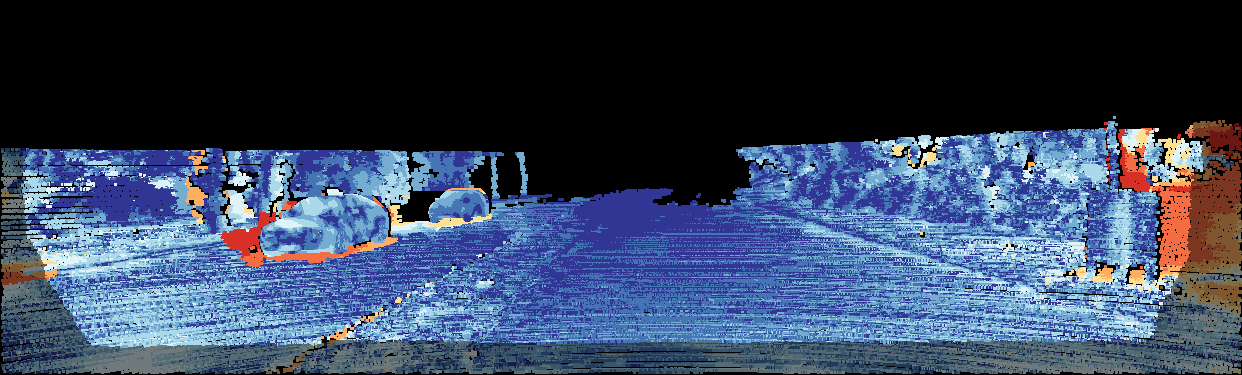

Flow Error


Test Image 13

Error Fl-bg Fl-fg Fl-all
All / All 5.38 24.21 7.69
All / Est 5.38 24.21 7.69
Noc / All 2.44 3.57 2.57
Noc / Est 2.44 3.57 2.57
This table as LaTeX

Input Image

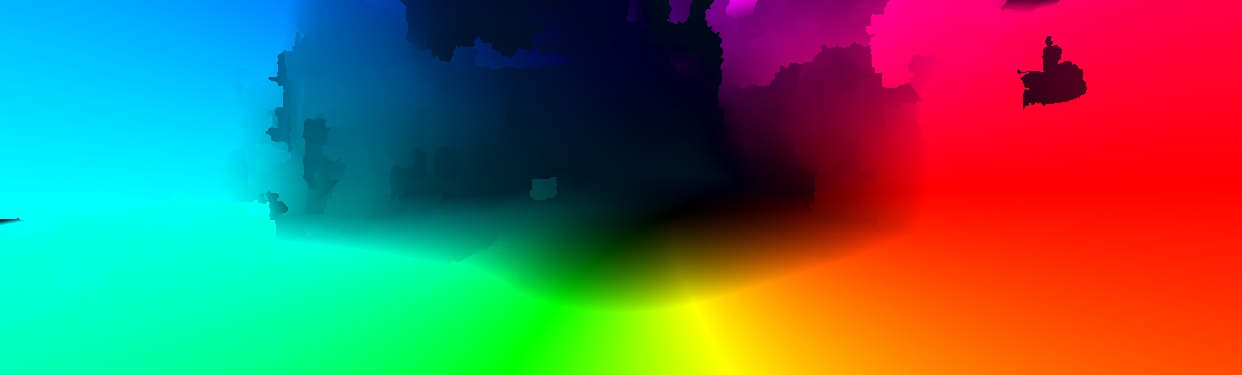

Flow Result

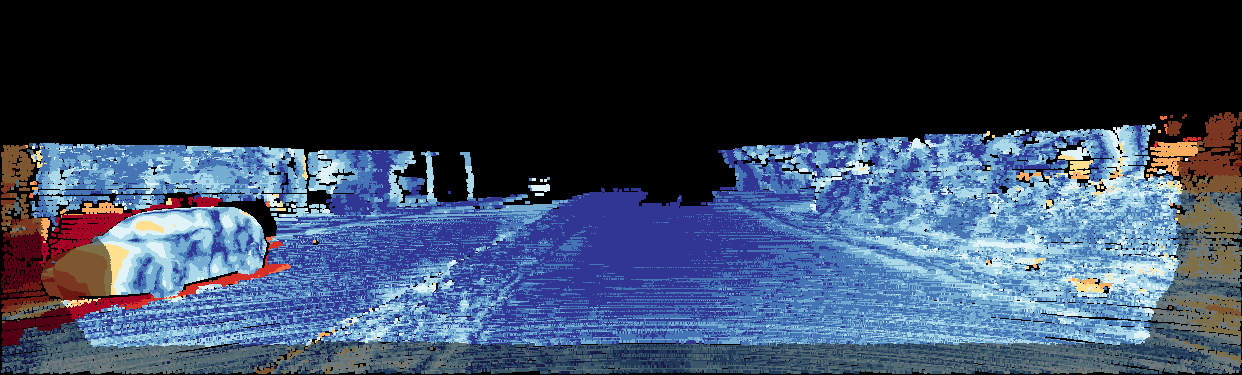

Flow Error


Test Image 14

Error Fl-bg Fl-fg Fl-all
All / All 5.11 2.42 5.06
All / Est 5.11 2.42 5.06
Noc / All 2.92 2.42 2.91
Noc / Est 2.92 2.42 2.91
This table as LaTeX

Input Image

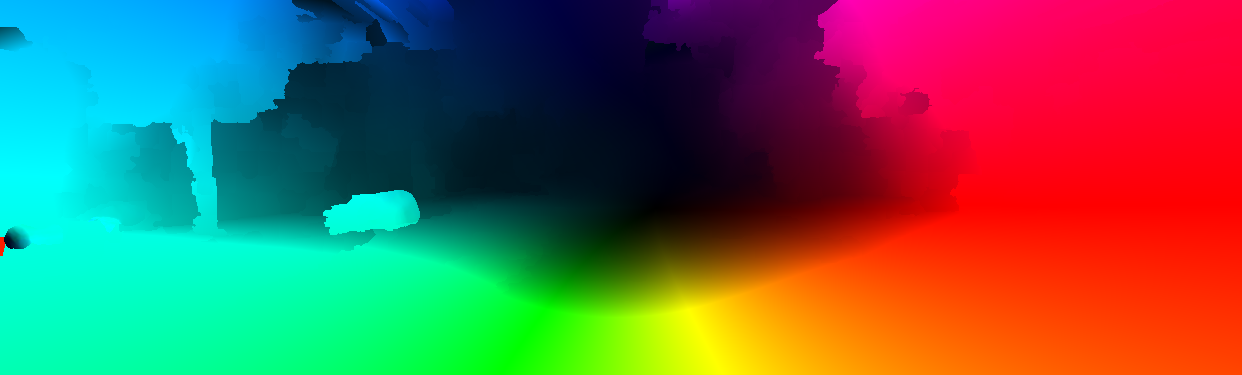

Flow Result

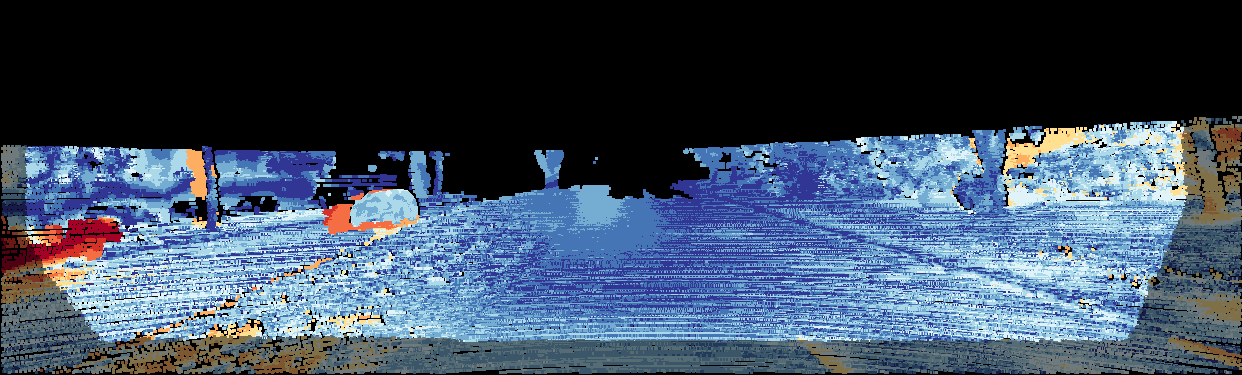

Flow Error


Test Image 15

Error Fl-bg Fl-fg Fl-all
All / All 12.38 33.16 14.26
All / Est 12.38 33.16 14.26
Noc / All 9.37 33.16 12.10
Noc / Est 9.37 33.16 12.10
This table as LaTeX

Input Image

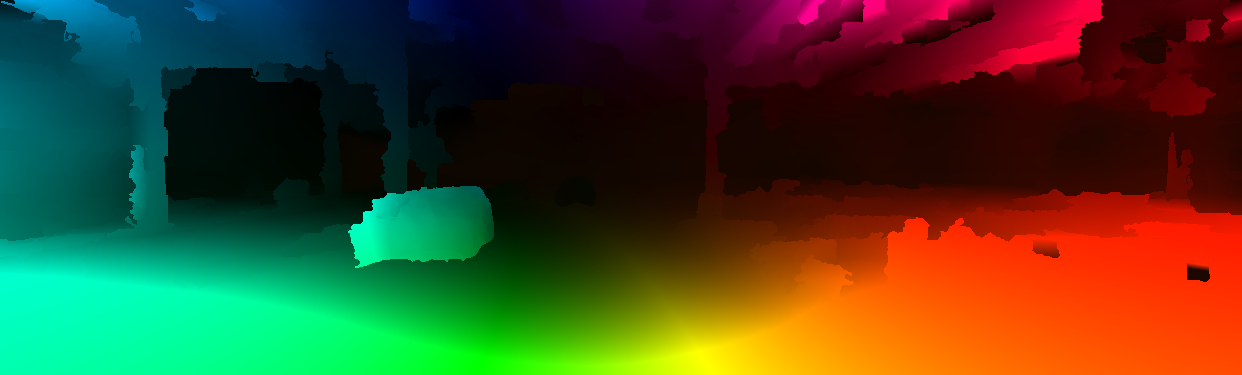

Flow Result

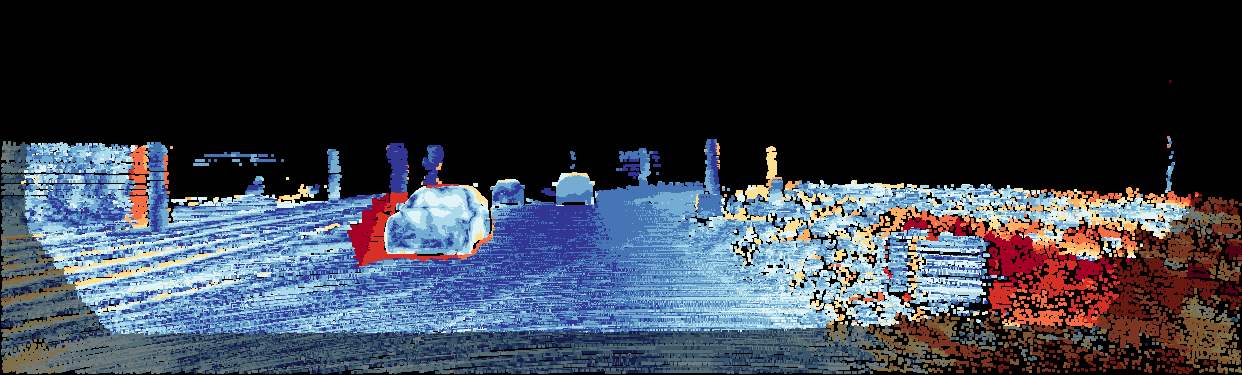

Flow Error


Test Image 16

Error Fl-bg Fl-fg Fl-all
All / All 18.60 28.37 20.04
All / Est 18.60 28.37 20.04
Noc / All 11.25 28.37 14.33
Noc / Est 11.25 28.37 14.33
This table as LaTeX

Input Image

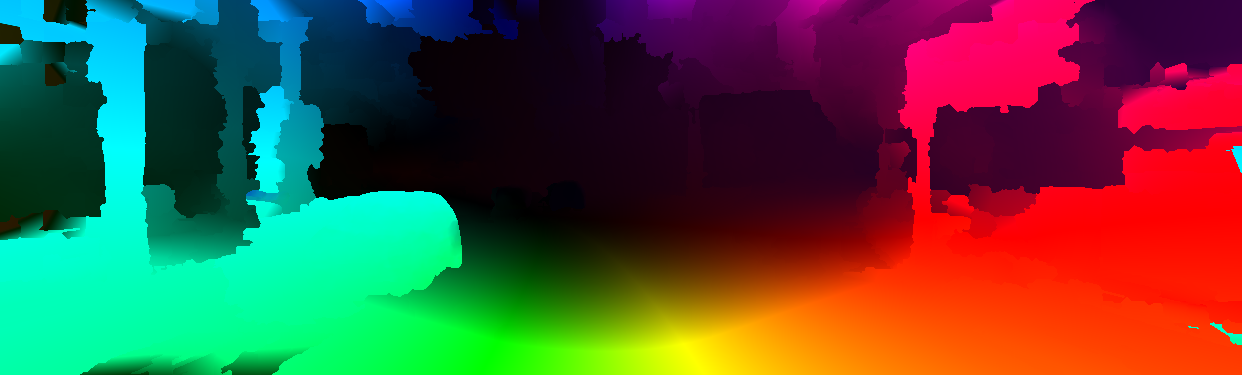

Flow Result

Flow Error


Test Image 17

Error Fl-bg Fl-fg Fl-all
All / All 8.09 16.22 8.94
All / Est 8.09 16.22 8.94
Noc / All 7.12 16.22 8.30
Noc / Est 7.12 16.22 8.30
This table as LaTeX

Input Image

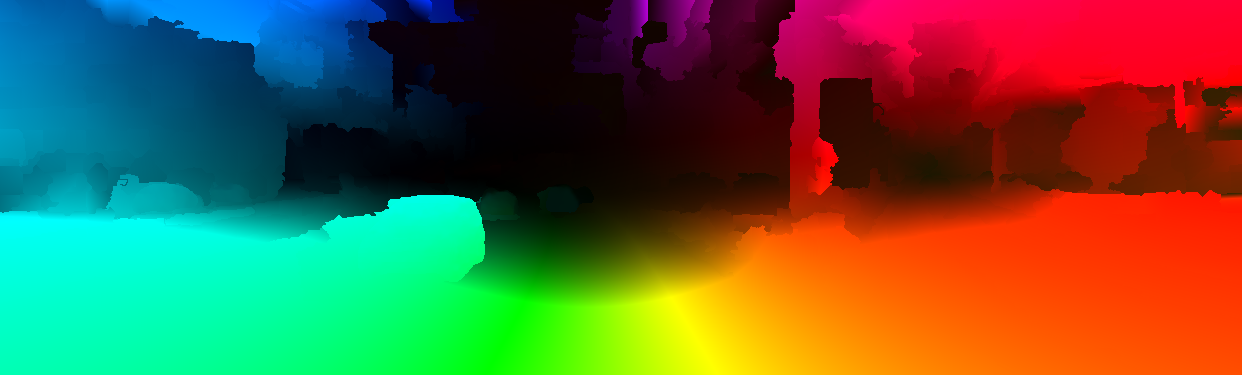

Flow Result

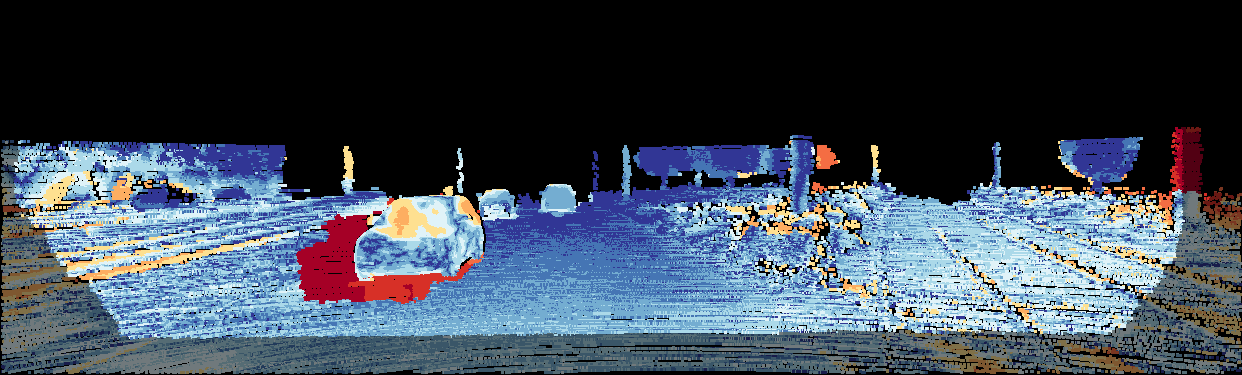

Flow Error


Test Image 18

Error Fl-bg Fl-fg Fl-all
All / All 19.03 98.07 56.58
All / Est 19.03 98.07 56.58
Noc / All 12.76 93.84 35.12
Noc / Est 12.76 93.84 35.12
This table as LaTeX

Input Image

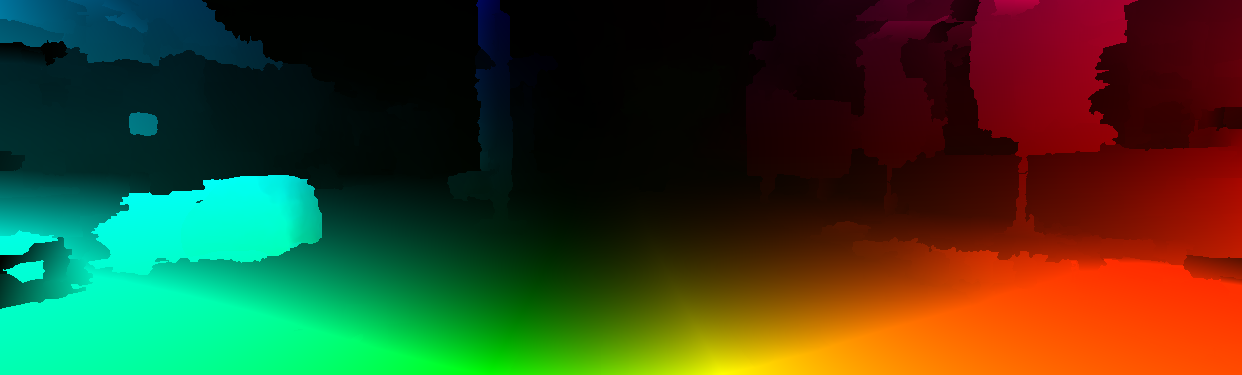

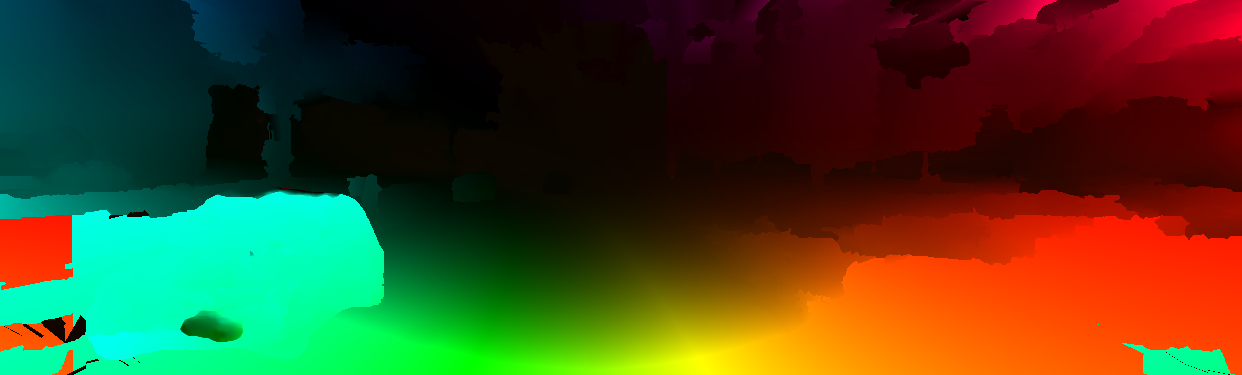

Flow Result

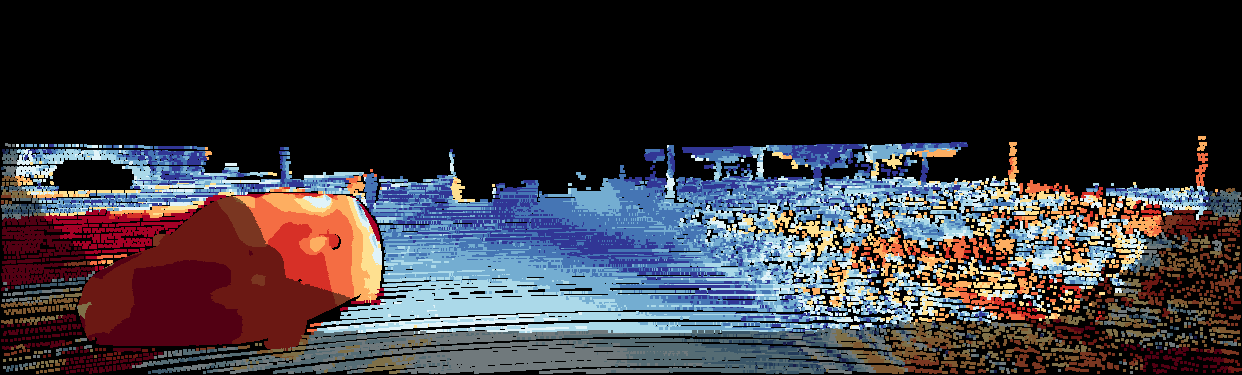

Flow Error


Test Image 19

Error Fl-bg Fl-fg Fl-all
All / All 7.51 11.66 7.98
All / Est 7.51 11.66 7.98
Noc / All 4.71 11.66 5.72
Noc / Est 4.71 11.66 5.72
This table as LaTeX

Input Image

Flow Result

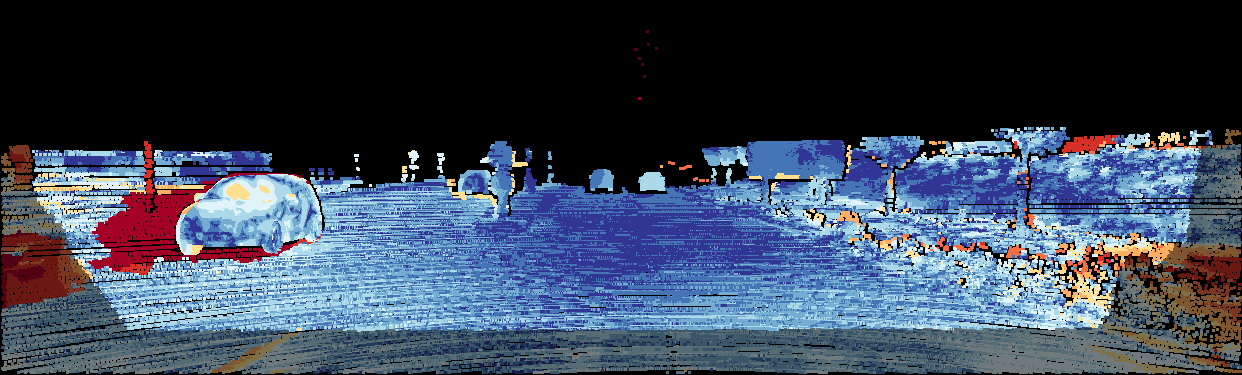

Flow Error
