Method

Mahmoud Tahmasebi [DCVSMNet]
https://github.com/M2219/DCVSMNet.git

Submitted on 27 Feb. 2024 11:12 by
Mahmoud Tahmasebi (Atlantic Technological University)

Running time:0.07 s
Environment:GPU @ 2.5 Ghz (Python)

Method Description:
We introduce Double Cost Volume Stereo Matching Network(DCVSMNet) which is a novel architecture characterized by two small upper (group-wise) and lower (norm correlation) cost volumes. Each cost volume is processed separately, and a coupling module is proposed to fuse the geometry information extracted from the upper and lower cost volumes.
Parameters:
NAME: Adam
LR: &lr 0.001
Latex Bibtex:
@misc{tahmasebi2024dcvsmnet,
title={DCVSMNet: Double Cost Volume Stereo Matching Network},
author={Mahmoud Tahmasebi and Saif Huq and Kevin Meehan and Marion McAfee},
year={2024},
eprint={2402.16473},
archivePrefix={arXiv},
primaryClass={cs.CV}
}

Detailed Results

This page provides detailed results for the method(s) selected. For the first 20 test images, the percentage of erroneous pixels is depicted in the table. We use the error metric described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), which considers a pixel to be correctly estimated if the disparity or flow end-point error is <3px or <5% (for scene flow this criterion needs to be fulfilled for both disparity maps and the flow map). Underneath, the left input image, the estimated results and the error maps are shown (for disp_0/disp_1/flow/scene_flow, respectively). The error map uses the log-color scale described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), depicting correct estimates (<3px or <5% error) in blue and wrong estimates in red color tones. Dark regions in the error images denote the occluded pixels which fall outside the image boundaries. The false color maps of the results are scaled to the largest ground truth disparity values / flow magnitudes.

Test Set Average

Error D1-bg D1-fg D1-all
All / All 1.60 3.33 1.89
All / Est 1.60 3.33 1.89
Noc / All 1.46 2.98 1.71
Noc / Est 1.46 2.98 1.71
This table as LaTeX

Test Image 0

Error D1-bg D1-fg D1-all
All / All 1.62 0.94 1.53
All / Est 1.62 0.94 1.53
Noc / All 1.58 0.94 1.49
Noc / Est 1.58 0.94 1.49
This table as LaTeX

Input Image

D1 Result

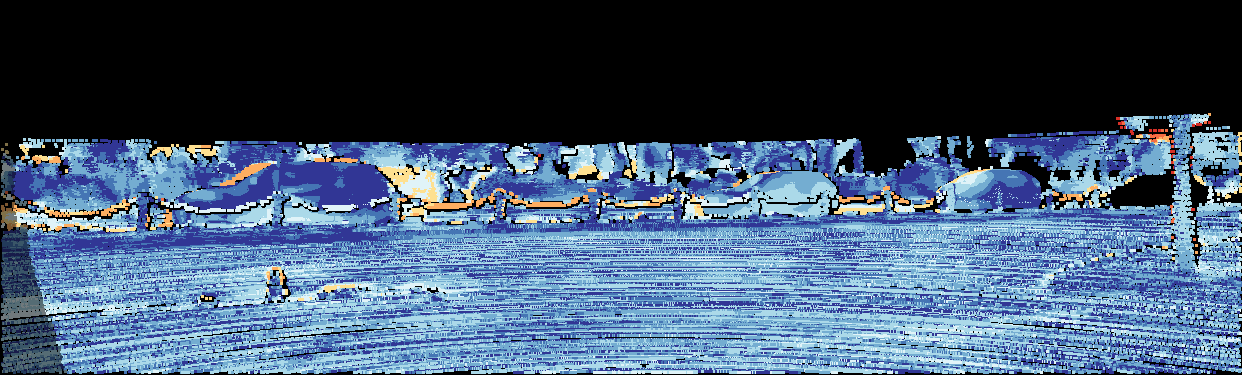

D1 Error


Test Image 1

Error D1-bg D1-fg D1-all
All / All 1.78 1.49 1.75
All / Est 1.78 1.49 1.75
Noc / All 1.71 1.49 1.68
Noc / Est 1.71 1.49 1.68
This table as LaTeX

Input Image

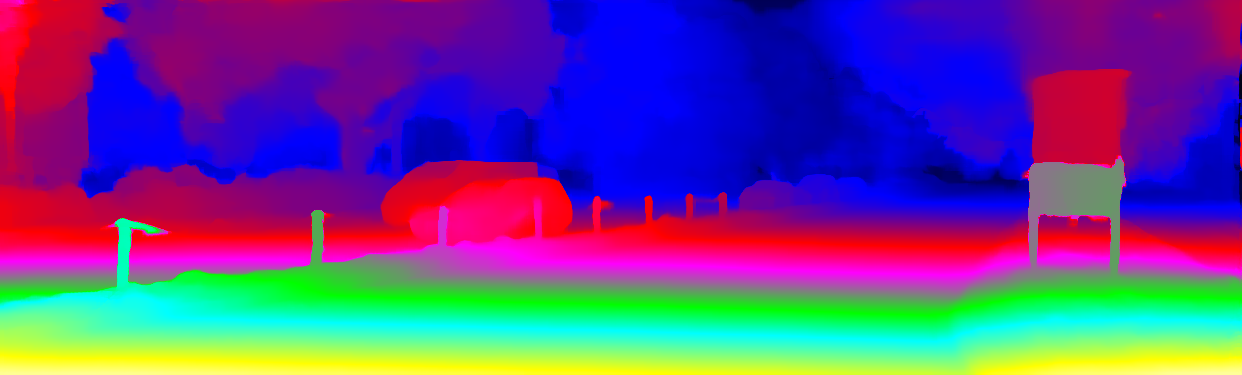

D1 Result

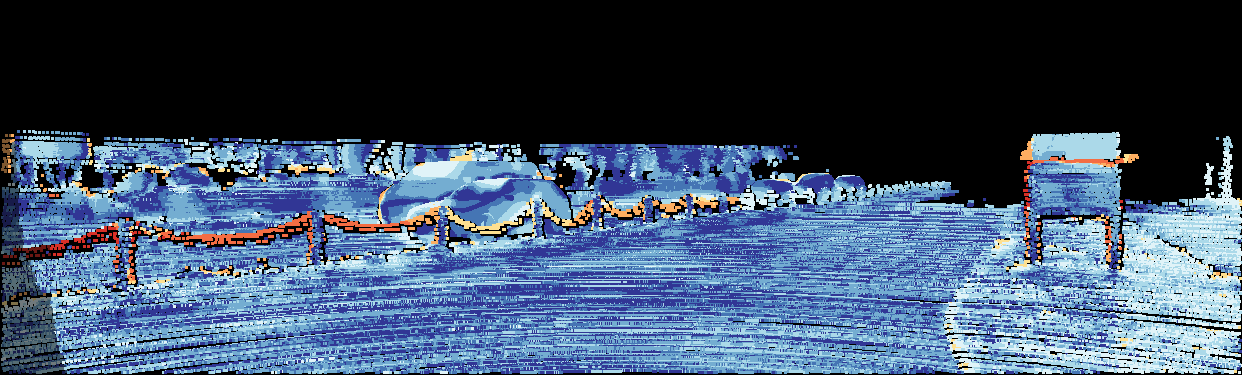

D1 Error


Test Image 2

Error D1-bg D1-fg D1-all
All / All 2.51 5.43 2.65
All / Est 2.51 5.43 2.65
Noc / All 2.36 5.43 2.51
Noc / Est 2.36 5.43 2.51
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 3

Error D1-bg D1-fg D1-all
All / All 2.41 0.52 2.23
All / Est 2.41 0.52 2.23
Noc / All 2.40 0.52 2.22
Noc / Est 2.40 0.52 2.22
This table as LaTeX

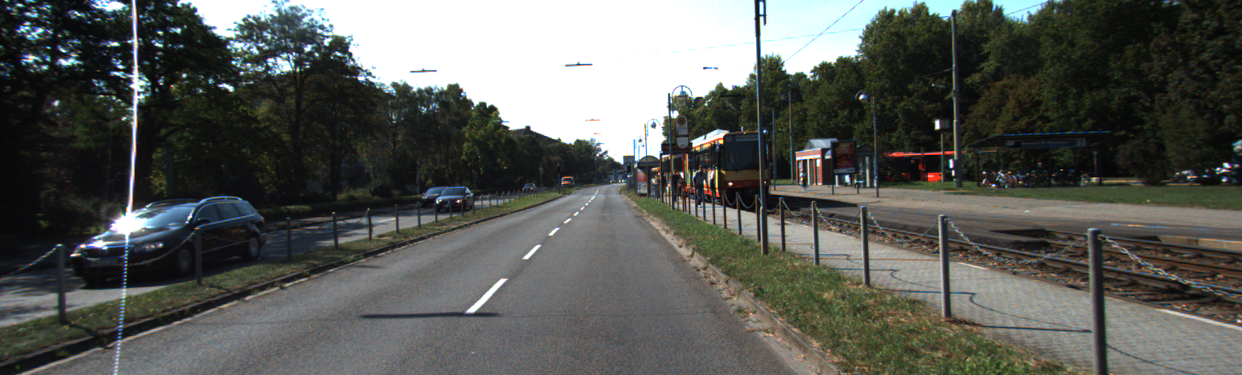

Input Image

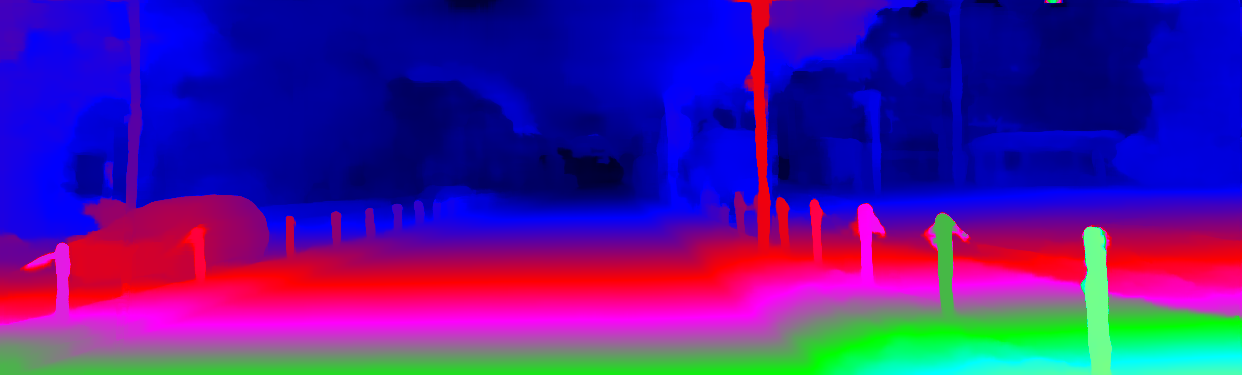

D1 Result

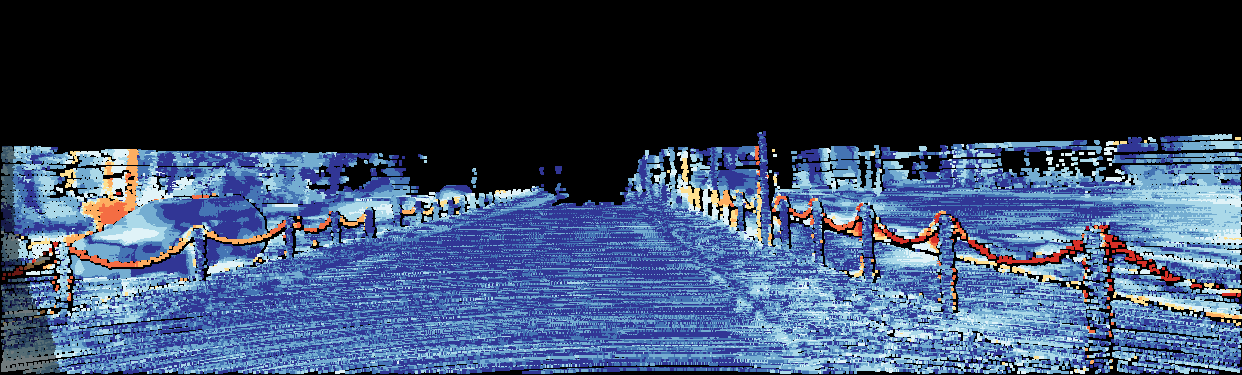

D1 Error


Test Image 4

Error D1-bg D1-fg D1-all
All / All 1.02 0.33 0.90
All / Est 1.02 0.33 0.90
Noc / All 1.02 0.33 0.90
Noc / Est 1.02 0.33 0.90
This table as LaTeX

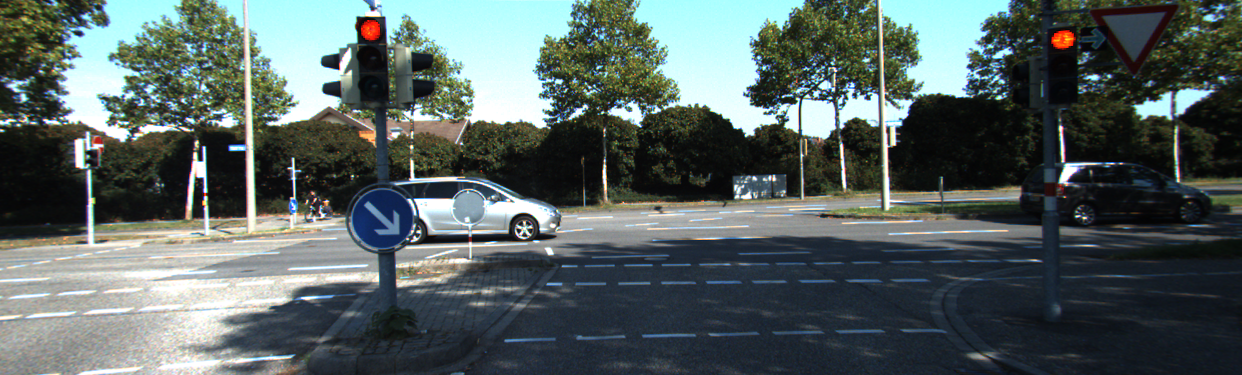

Input Image

D1 Result

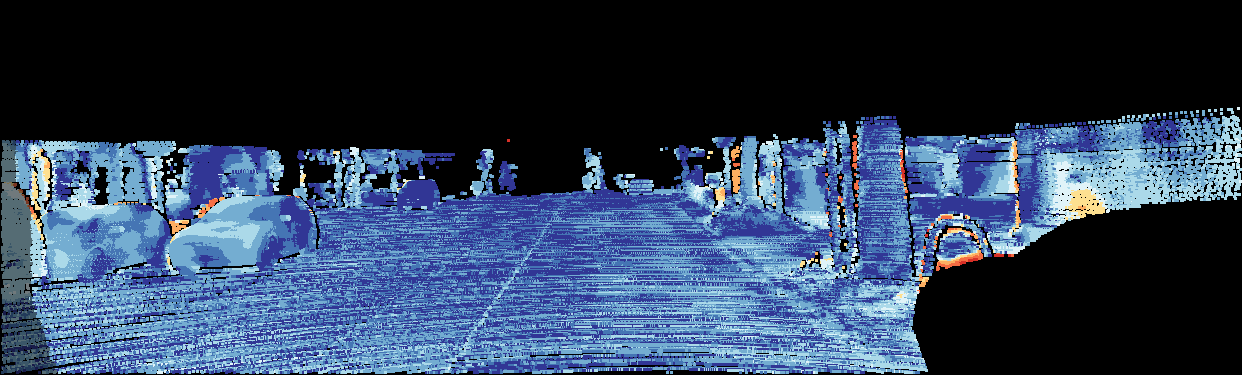

D1 Error


Test Image 5

Error D1-bg D1-fg D1-all
All / All 2.49 3.08 2.54
All / Est 2.49 3.08 2.54
Noc / All 2.30 3.08 2.37
Noc / Est 2.30 3.08 2.37
This table as LaTeX

Input Image

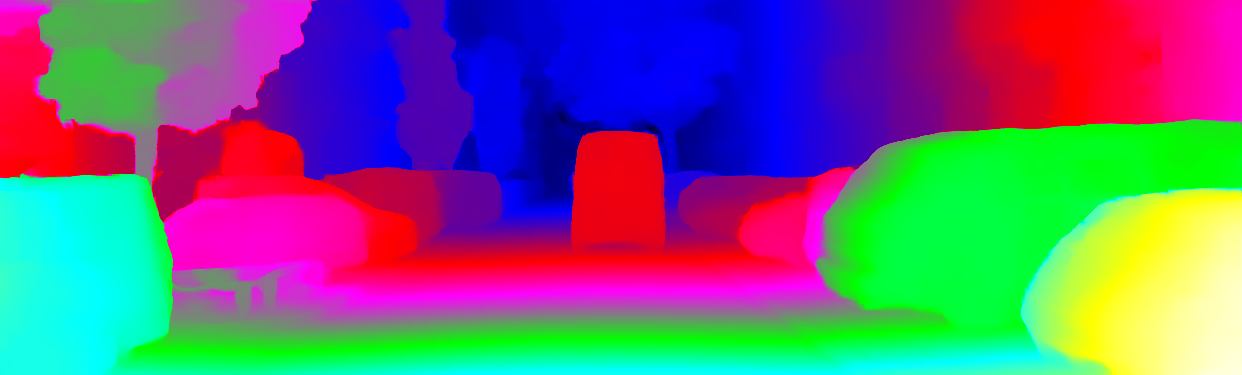

D1 Result

D1 Error


Test Image 6

Error D1-bg D1-fg D1-all
All / All 4.57 0.72 4.16
All / Est 4.57 0.72 4.16
Noc / All 4.67 0.72 4.25
Noc / Est 4.67 0.72 4.25
This table as LaTeX

Input Image

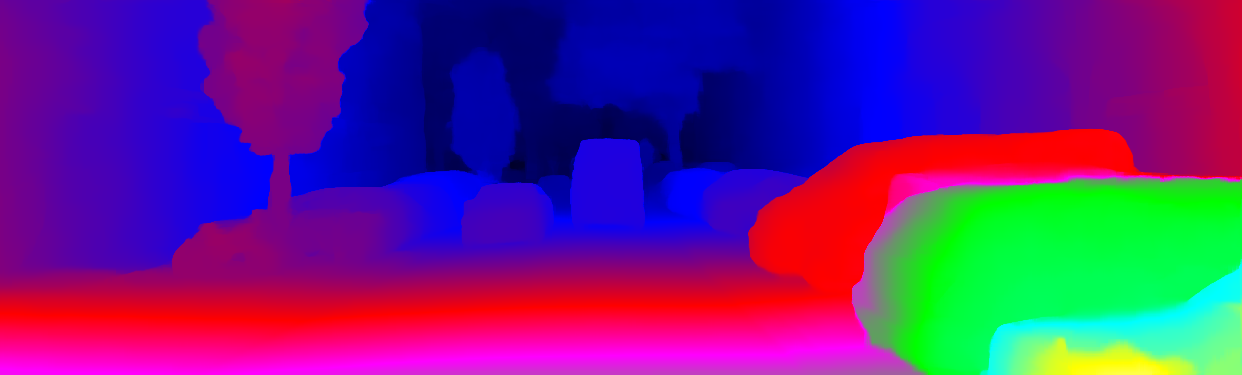

D1 Result

D1 Error


Test Image 7

Error D1-bg D1-fg D1-all
All / All 0.58 3.48 1.15
All / Est 0.58 3.48 1.15
Noc / All 0.59 3.48 1.16
Noc / Est 0.59 3.48 1.16
This table as LaTeX

Input Image

D1 Result

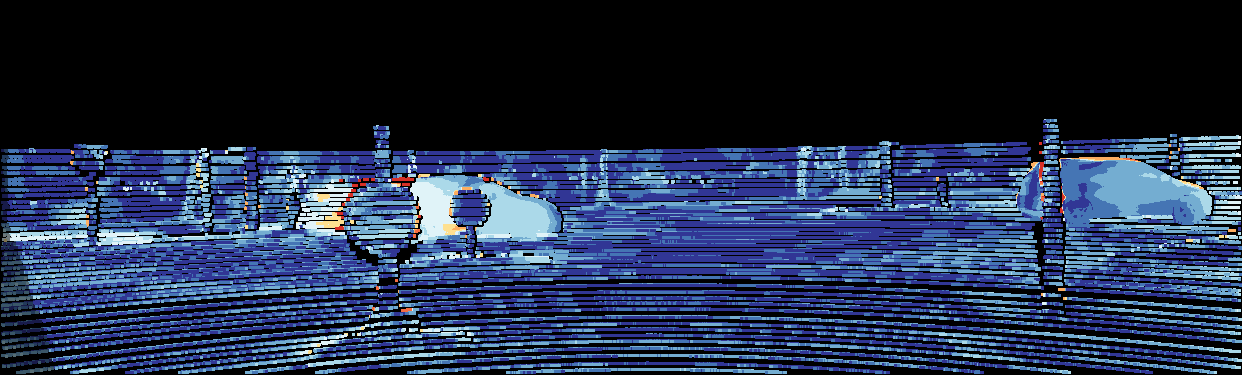

D1 Error


Test Image 8

Error D1-bg D1-fg D1-all
All / All 0.34 2.86 0.81
All / Est 0.34 2.86 0.81
Noc / All 0.34 2.86 0.81
Noc / Est 0.34 2.86 0.81
This table as LaTeX

Input Image

D1 Result

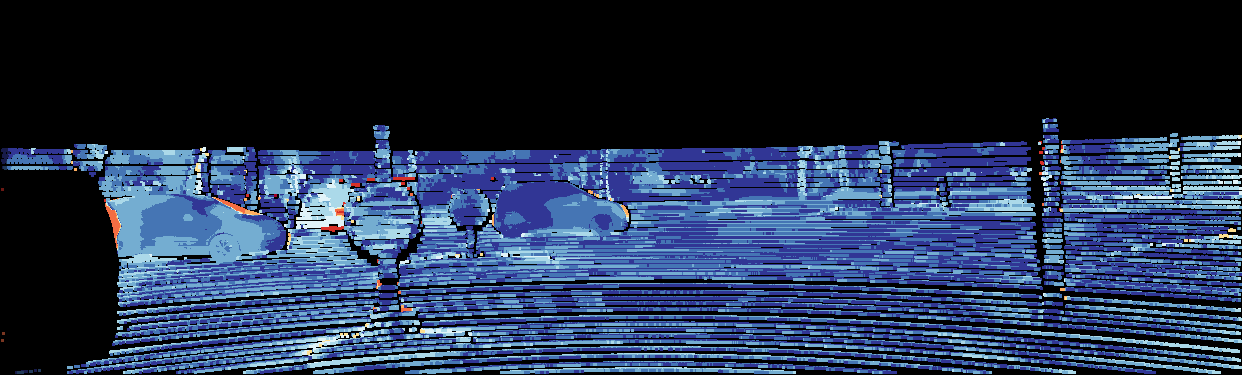

D1 Error


Test Image 9

Error D1-bg D1-fg D1-all
All / All 0.43 1.34 0.67
All / Est 0.43 1.34 0.67
Noc / All 0.44 1.41 0.68
Noc / Est 0.44 1.41 0.68
This table as LaTeX

Input Image

D1 Result

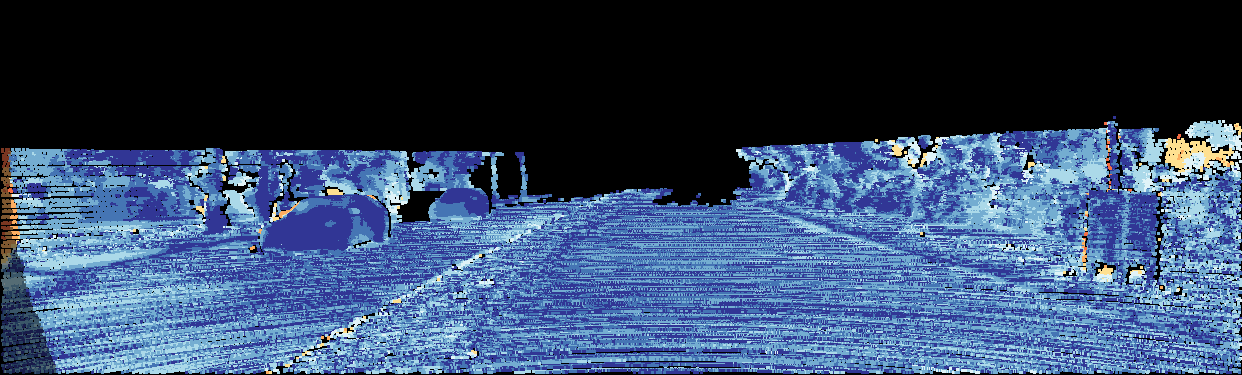

D1 Error


Test Image 10

Error D1-bg D1-fg D1-all
All / All 1.02 2.33 1.32
All / Est 1.02 2.33 1.32
Noc / All 1.02 2.33 1.32
Noc / Est 1.02 2.33 1.32
This table as LaTeX

Input Image

D1 Result

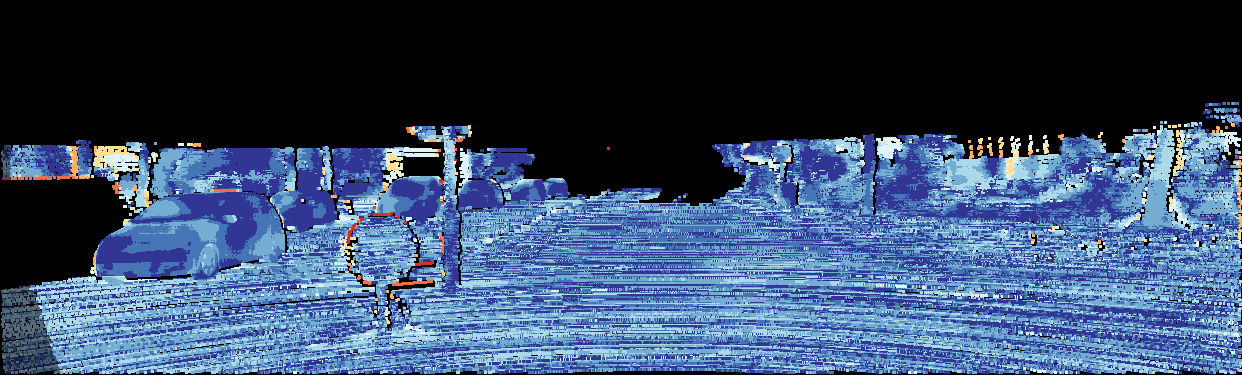

D1 Error


Test Image 11

Error D1-bg D1-fg D1-all
All / All 0.81 0.62 0.78
All / Est 0.81 0.62 0.78
Noc / All 0.81 0.62 0.78
Noc / Est 0.81 0.62 0.78
This table as LaTeX

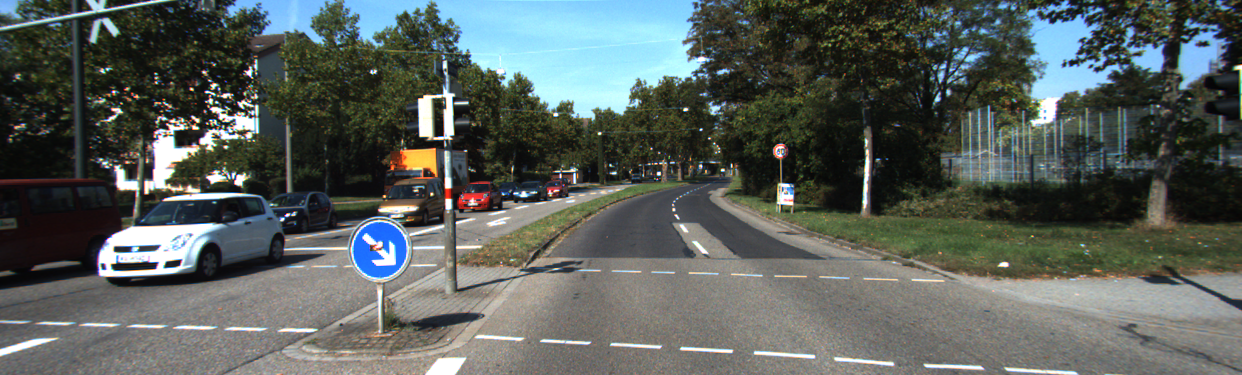

Input Image

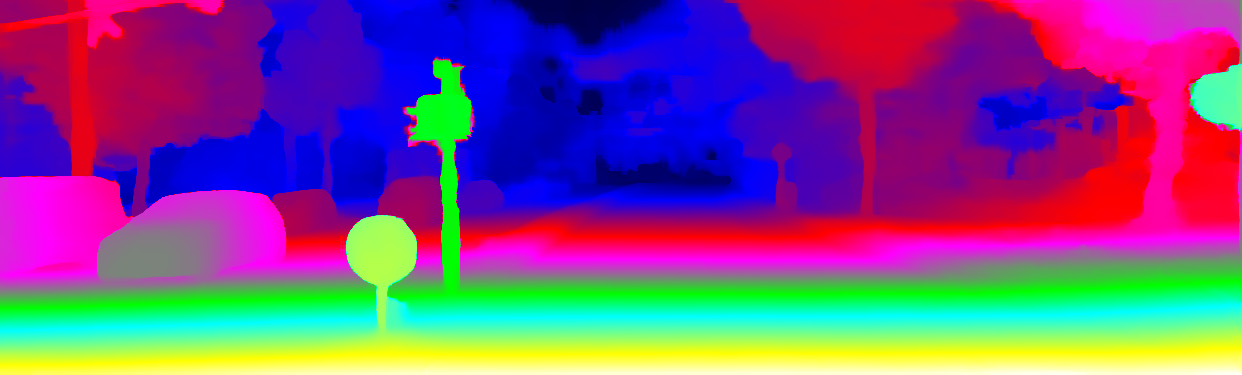

D1 Result

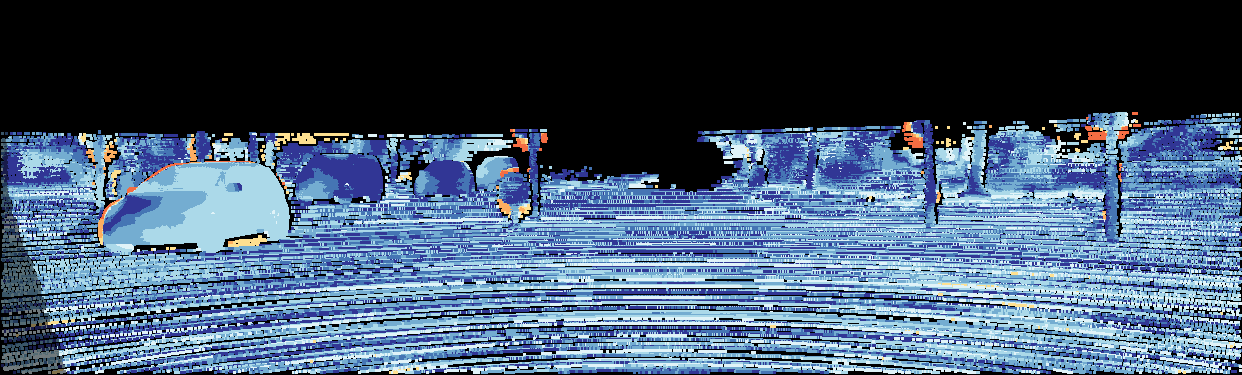

D1 Error


Test Image 12

Error D1-bg D1-fg D1-all
All / All 0.69 0.93 0.71
All / Est 0.69 0.93 0.71
Noc / All 0.53 0.93 0.56
Noc / Est 0.53 0.93 0.56
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 13

Error D1-bg D1-fg D1-all
All / All 0.46 0.37 0.45
All / Est 0.46 0.37 0.45
Noc / All 0.42 0.37 0.41
Noc / Est 0.42 0.37 0.41
This table as LaTeX

Input Image

D1 Result

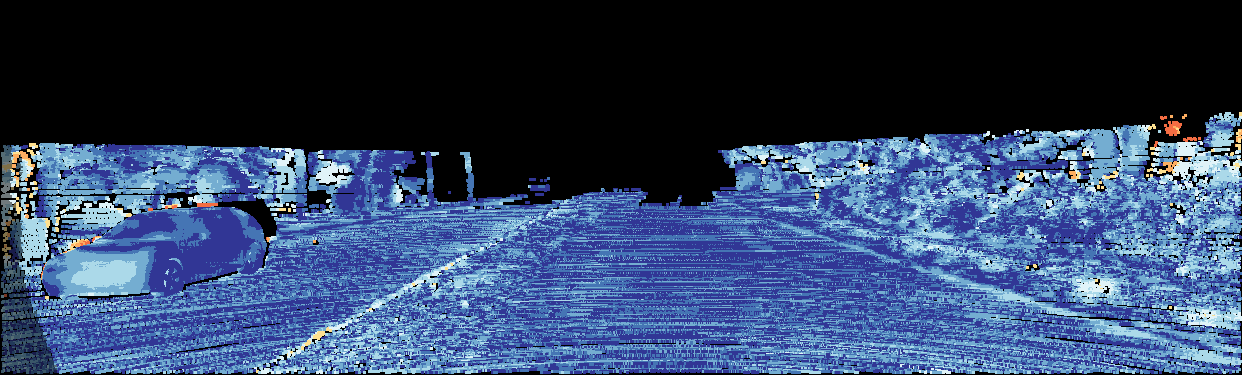

D1 Error


Test Image 14

Error D1-bg D1-fg D1-all
All / All 1.30 0.11 1.28
All / Est 1.30 0.11 1.28
Noc / All 1.18 0.11 1.16
Noc / Est 1.18 0.11 1.16
This table as LaTeX

Input Image

D1 Result

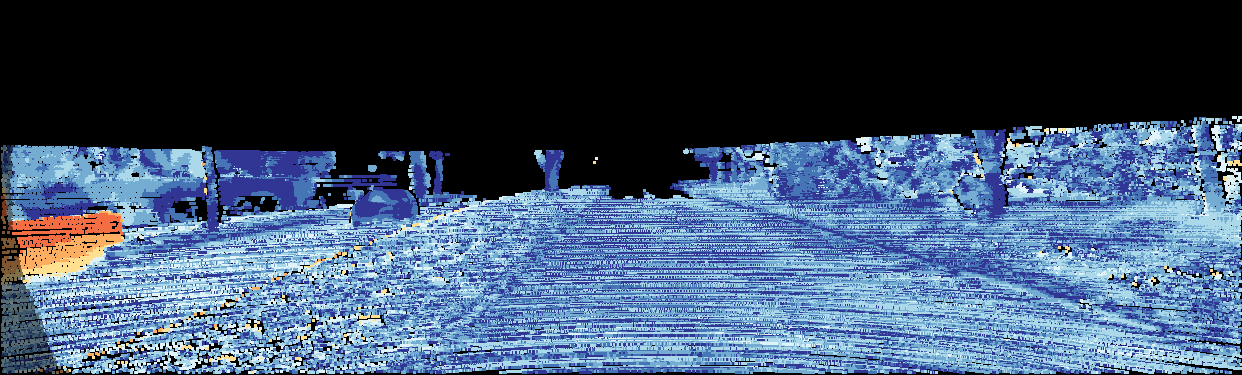

D1 Error


Test Image 15

Error D1-bg D1-fg D1-all
All / All 2.81 0.22 2.57
All / Est 2.81 0.22 2.57
Noc / All 2.87 0.22 2.62
Noc / Est 2.87 0.22 2.62
This table as LaTeX

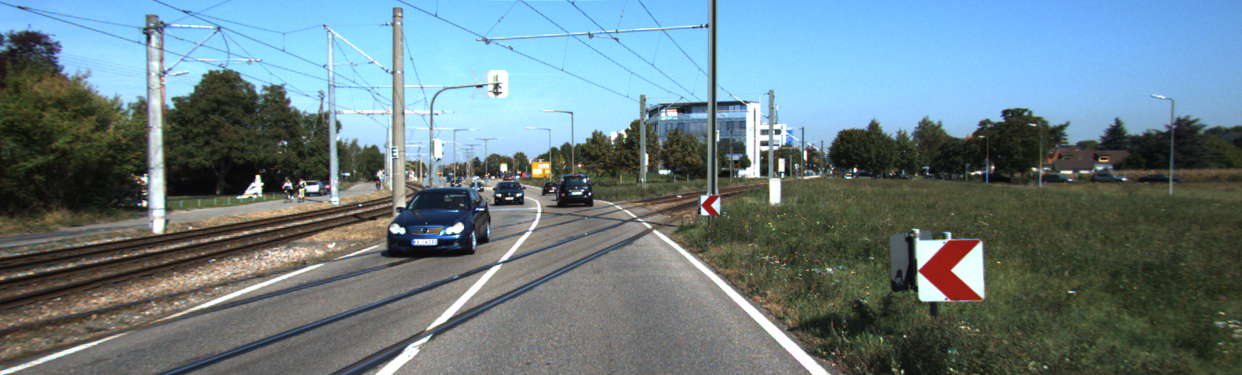

Input Image

D1 Result

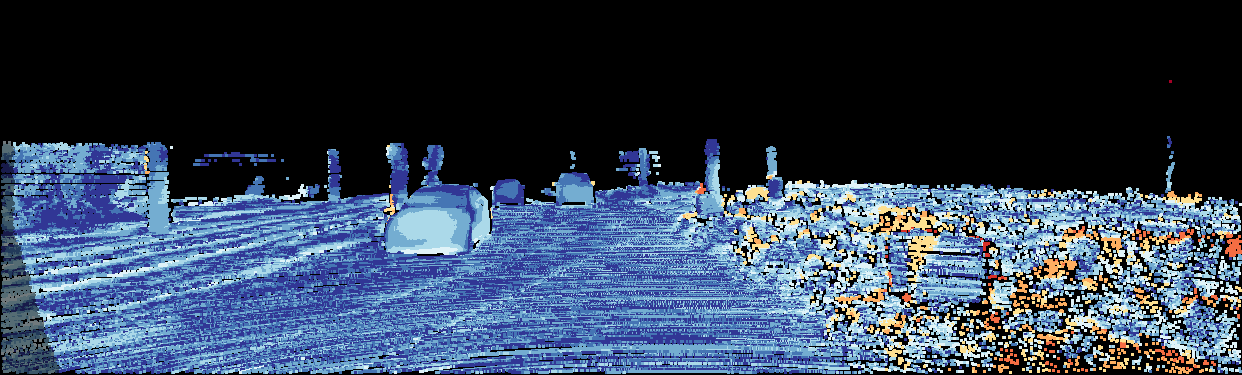

D1 Error


Test Image 16

Error D1-bg D1-fg D1-all
All / All 3.47 0.19 2.99
All / Est 3.47 0.19 2.99
Noc / All 3.38 0.19 2.91
Noc / Est 3.38 0.19 2.91
This table as LaTeX

Input Image

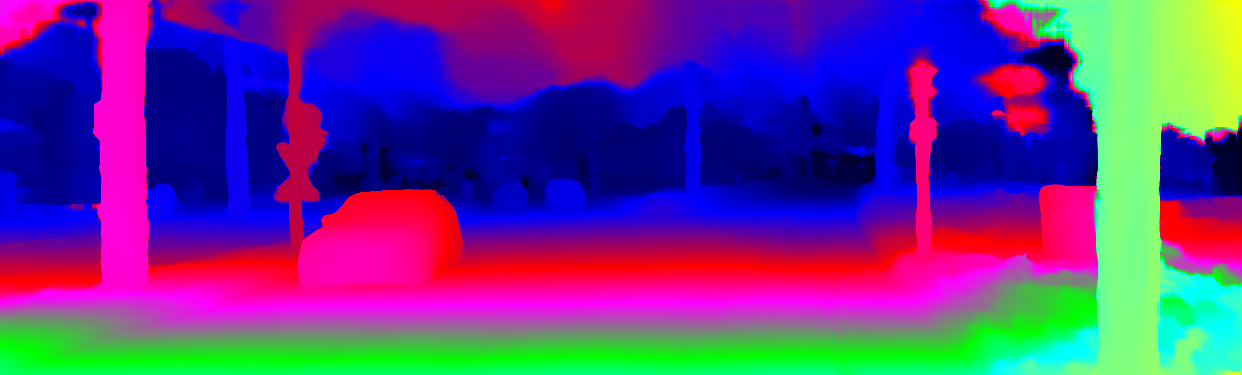

D1 Result

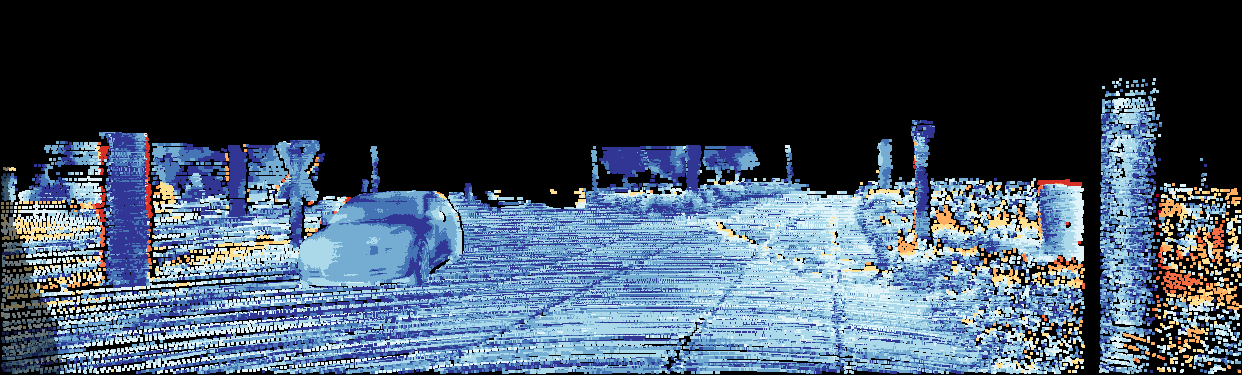

D1 Error


Test Image 17

Error D1-bg D1-fg D1-all
All / All 0.78 0.23 0.72
All / Est 0.78 0.23 0.72
Noc / All 0.78 0.23 0.72
Noc / Est 0.78 0.23 0.72
This table as LaTeX

Input Image

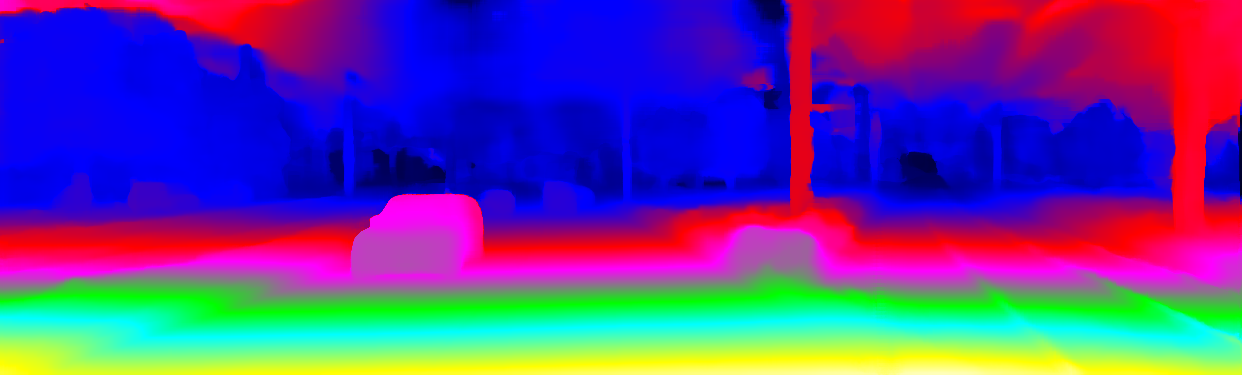

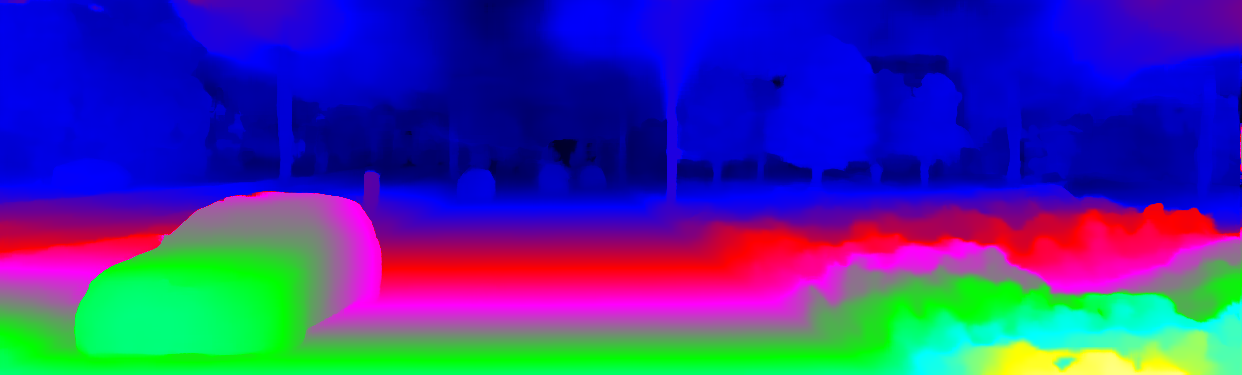

D1 Result

D1 Error


Test Image 18

Error D1-bg D1-fg D1-all
All / All 4.58 1.73 3.23
All / Est 4.58 1.73 3.23
Noc / All 4.55 1.73 3.20
Noc / Est 4.55 1.73 3.20
This table as LaTeX

Input Image

D1 Result

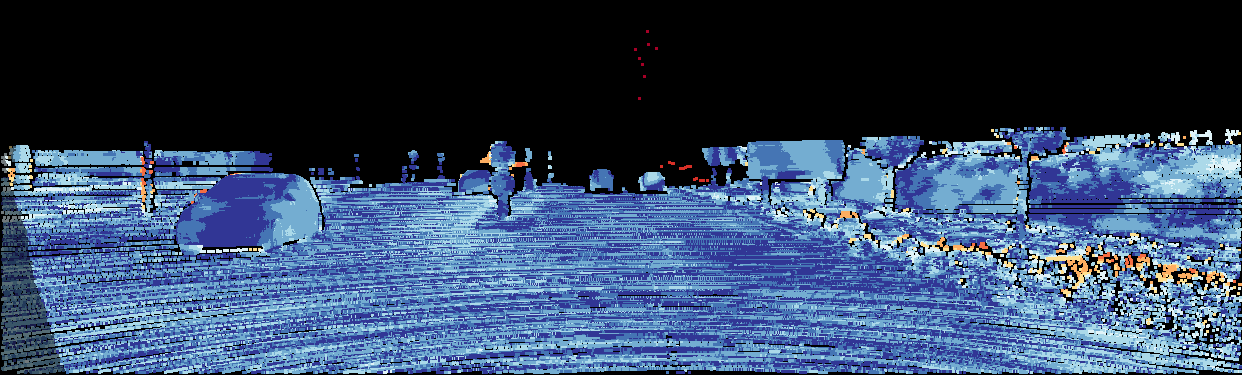

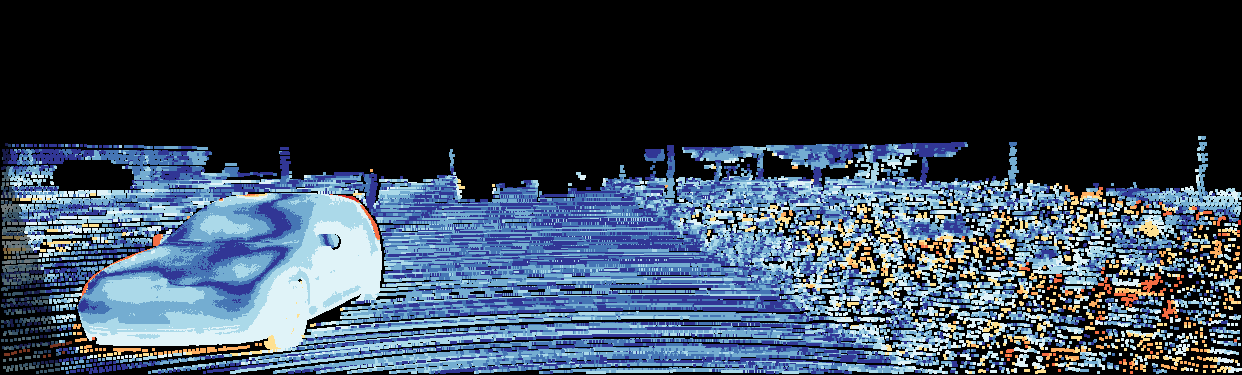

D1 Error


Test Image 19

Error D1-bg D1-fg D1-all
All / All 0.83 0.22 0.76
All / Est 0.83 0.22 0.76
Noc / All 0.84 0.22 0.77
Noc / Est 0.84 0.22 0.77
This table as LaTeX

Input Image

D1 Result

D1 Error
