Method

Enhancing Monocular 3D Detection through Data Augmentation Strategies [DA3D]
https://github.com/jiayisong/DA3D

Submitted on 23 Jun. 2023 04:26 by
贾 译凇 (哈尔滨工业大学)

Running time:0.03 s
Environment:1 core @ 2.5 Ghz (Python)

Method Description:
We migrate the 2D object detection data augmentation
method to 3D object detection without losing
coordinate cues and size cues, and experimentally
prove that our migration method is necessary. The
sampling bias problem of data augmentation is
explored in this process, and an unbiased sampling
strategy and several new augmentation methods for 3D
object detection are proposed, and the effectiveness
of the proposed methods is experimentally verified.
Parameters:
lr=1e-4
Latex Bibtex:
@ARTICLE{10497146,
author={Jia, Yisong and Wang, Jue and Pan,
Huihui and Sun, Weichao},
journal={IEEE Transactions on Instrumentation
and Measurement},
title={Enhancing Monocular 3-D Object Detection
Through Data Augmentation Strategies},
year={2024},
volume={73},
number={},
pages={1-11},
keywords={Three-dimensional displays;Object
detection;Data augmentation;Task
analysis;Pipelines;Cameras;Detectors;Autonomous
driving;data augmentation;deep learning;monocular
3-D object detection},
doi={10.1109/TIM.2024.3387500}}

Detailed Results

Object detection and orientation estimation results. Results for object detection are given in terms of average precision (AP) and results for joint object detection and orientation estimation are provided in terms of average orientation similarity (AOS).


Benchmark Easy Moderate Hard
Car (Detection) 0.00 % 0.00 % 0.00 %
Car (Orientation) 0.00 % 0.00 % 0.00 %
Car (3D Detection) 27.76 % 20.47 % 17.89 %
Car (Bird's Eye View) 36.83 % 26.92 % 23.41 %
Pedestrian (Detection) 0.00 % 0.00 % 0.00 %
Pedestrian (Orientation) 0.00 % 0.00 % 0.00 %
Pedestrian (3D Detection) 4.62 % 2.95 % 2.58 %
Pedestrian (Bird's Eye View) 4.93 % 3.27 % 2.74 %
Cyclist (Detection) 0.00 % 0.00 % 0.00 %
Cyclist (Orientation) 0.00 % 0.00 % 0.00 %
Cyclist (3D Detection) 3.37 % 1.86 % 1.48 %
Cyclist (Bird's Eye View) 3.46 % 1.89 % 1.51 %
This table as LaTeX


2D object detection results.
This figure as: png eps txt gnuplot

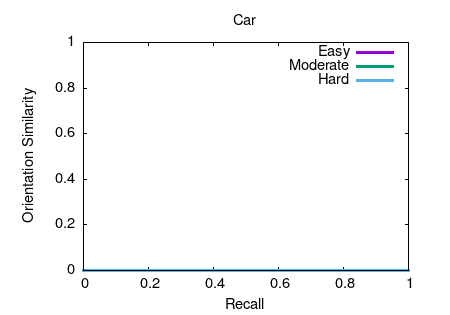

Orientation estimation results.
This figure as: png eps txt gnuplot

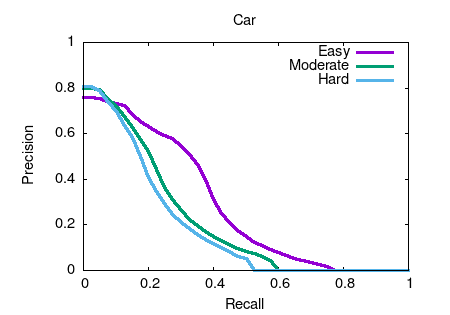

3D object detection results.
This figure as: png eps txt gnuplot

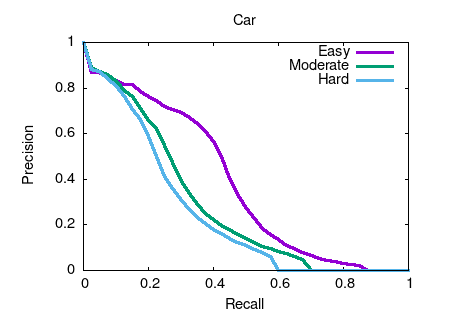

Bird's eye view results.
This figure as: png eps txt gnuplot



2D object detection results.
This figure as: png eps txt gnuplot



Orientation estimation results.
This figure as: png eps txt gnuplot

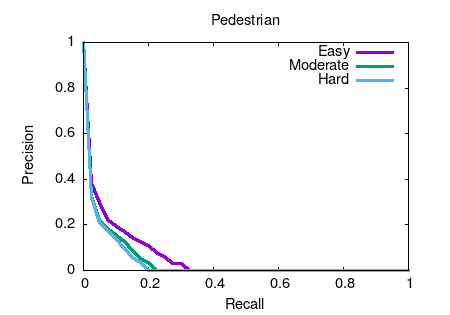

3D object detection results.
This figure as: png eps txt gnuplot



Bird's eye view results.
This figure as: png eps txt gnuplot

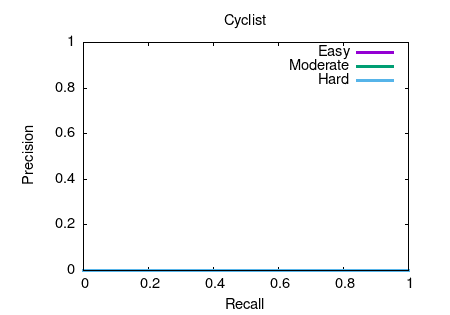

2D object detection results.
This figure as: png eps txt gnuplot

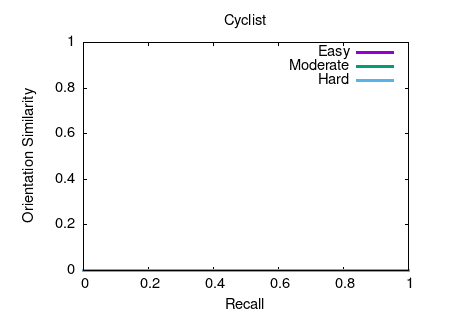

Orientation estimation results.
This figure as: png eps txt gnuplot

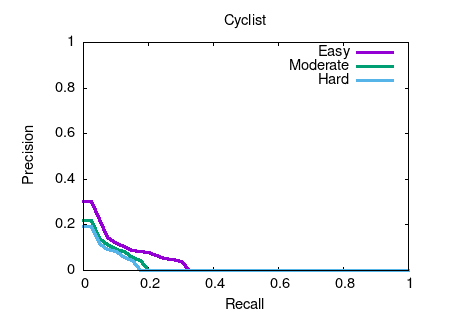

3D object detection results.
This figure as: png eps txt gnuplot

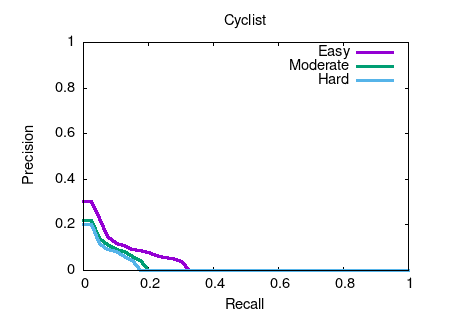

Bird's eye view results.
This figure as: png eps txt gnuplot
