Method

Learning Distinguishable Representation for Pooled Grids in 3D Object Detection [RagNet3D]
TBD

Submitted on 7 May. 2024 05:36 by
Jiaxin Chen (NJUST)

Running time:0.05 s
Environment:1 core @ 2.5 Ghz (C/C++)

Method Description:
In this work, we propose RoI-Aware Grids Pooling Networks for 3D
object detection, i.e., RagNet3D. Specifically, we devise RoI-
View Prediction Networks, simplified as RVPNet, to predict grid-
wise RoI-View residuals. Then, we also propose Couple-View
Fusion Networks, denoted as CoVFNet, to fuse the view-dependent
features and view-independent features, learned from predicted
RoI-View and 3D convolution networks respectively.
Parameters:
TBD
Latex Bibtex:
@article{chen4979473ragnet3d,
title={Ragnet3d: Learning Distinguishable Representation for Pooled Grids in 3d Object Detection},
author={Chen, Jiaxin and Han, Yuehui and Yan, Zhiqiang and Qian, Jianjun and Li, Jun and Yang, Jian},
journal={Available at SSRN 4979473}
}

Detailed Results

Object detection and orientation estimation results. Results for object detection are given in terms of average precision (AP) and results for joint object detection and orientation estimation are provided in terms of average orientation similarity (AOS).


Benchmark Easy Moderate Hard
Car (Detection) 96.27 % 95.17 % 92.66 %
Car (Orientation) 96.26 % 95.04 % 92.48 %
Car (3D Detection) 88.74 % 81.91 % 77.45 %
Car (Bird's Eye View) 92.87 % 89.01 % 86.36 %
Cyclist (Detection) 90.12 % 81.20 % 74.57 %
Cyclist (Orientation) 89.25 % 80.23 % 73.69 %
Cyclist (3D Detection) 83.84 % 68.55 % 61.94 %
Cyclist (Bird's Eye View) 85.10 % 71.64 % 65.02 %
This table as LaTeX

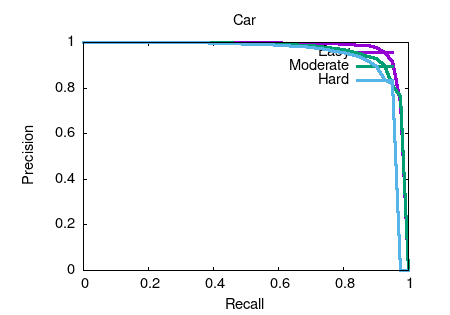

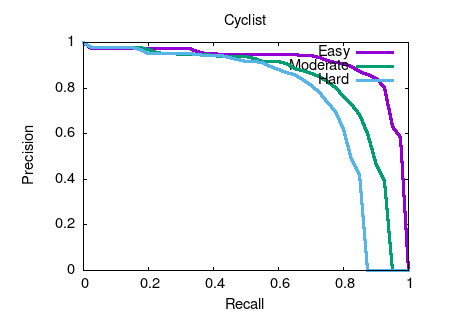

2D object detection results.
This figure as: png eps txt gnuplot

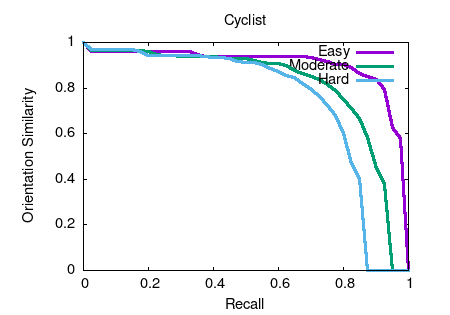

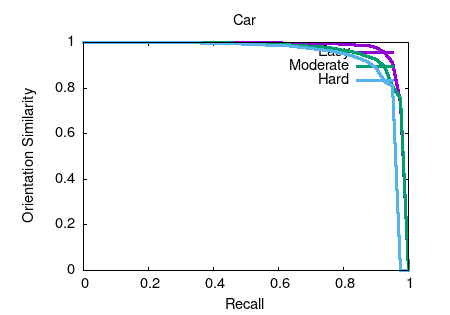

Orientation estimation results.
This figure as: png eps txt gnuplot

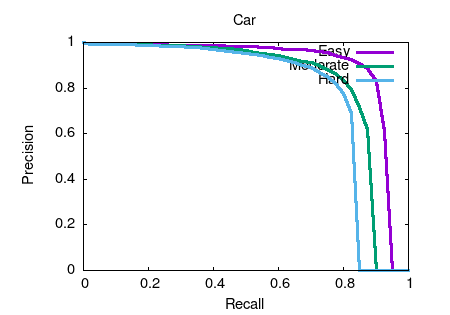

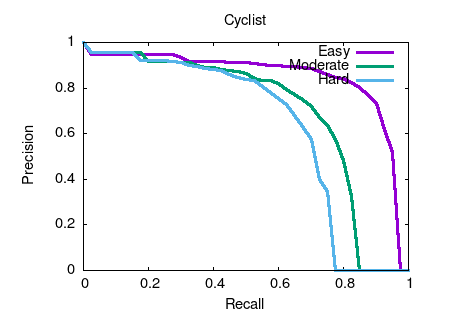

3D object detection results.
This figure as: png eps txt gnuplot

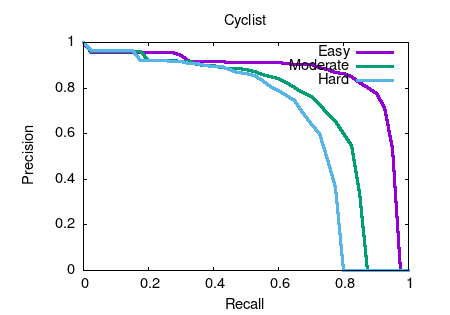

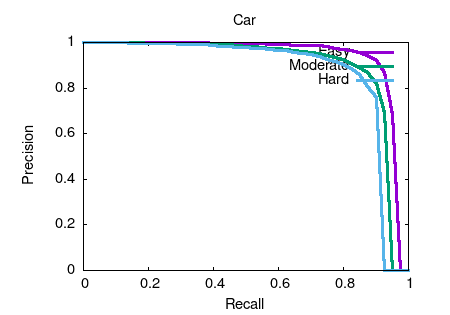

Bird's eye view results.
This figure as: png eps txt gnuplot



2D object detection results.
This figure as: png eps txt gnuplot



Orientation estimation results.
This figure as: png eps txt gnuplot



3D object detection results.
This figure as: png eps txt gnuplot



Bird's eye view results.
This figure as: png eps txt gnuplot
