Method

spatial awareness network [SpaA]
[Anonymous Submission]

Submitted on 18 Apr. 2025 10:37 by
[Anonymous Submission]

Running time:0.1 s
Environment:1 core @ 2.5 Ghz (C/C++)

Method Description:
This article proposes a 3D object detection
network (SpaA) with spatial perception capability.
On the basis of 3D sparse convolutional networks,
we designed a variable sparse convolutional
network (VSC Conv) that can perceive position
importance. We propose a local aggregation method
based on spatial perception and density
information (SDLA) to address the problem of
completely ignoring spatial structure when
aggregating local features using set abstraction
operations
Parameters:
We use Adam optimizer combined with One Cycle
learning rate strategy for training. The momentum
parameter is 0.9, the initial learning rate is 0.01,
the weight decay coefficient is 0.01, and the
gradient norm clipping threshold is 10.
Latex Bibtex:

Detailed Results

Object detection and orientation estimation results. Results for object detection are given in terms of average precision (AP) and results for joint object detection and orientation estimation are provided in terms of average orientation similarity (AOS).


Benchmark Easy Moderate Hard
Car (Detection) 96.18 % 95.47 % 92.78 %
Car (Orientation) 96.15 % 95.31 % 92.55 %
Car (3D Detection) 90.40 % 82.20 % 77.41 %
Car (Bird's Eye View) 94.69 % 91.05 % 86.56 %
Pedestrian (Detection) 70.72 % 61.08 % 58.80 %
Pedestrian (Orientation) 67.80 % 57.39 % 54.78 %
Pedestrian (3D Detection) 50.16 % 44.04 % 41.17 %
Pedestrian (Bird's Eye View) 53.74 % 47.67 % 45.55 %
Cyclist (Detection) 91.91 % 82.24 % 75.46 %
Cyclist (Orientation) 91.73 % 81.91 % 75.11 %
Cyclist (3D Detection) 86.01 % 70.34 % 63.34 %
Cyclist (Bird's Eye View) 87.14 % 74.34 % 66.45 %
This table as LaTeX

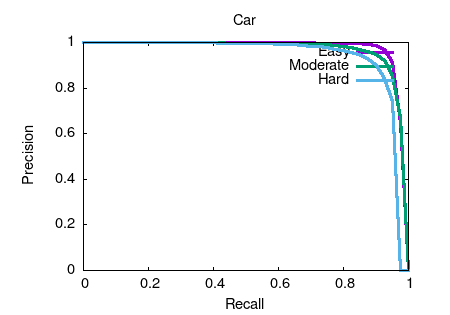

2D object detection results.
This figure as: png eps txt gnuplot



Orientation estimation results.
This figure as: png eps txt gnuplot



3D object detection results.
This figure as: png eps txt gnuplot



Bird's eye view results.
This figure as: png eps txt gnuplot



2D object detection results.
This figure as: png eps txt gnuplot

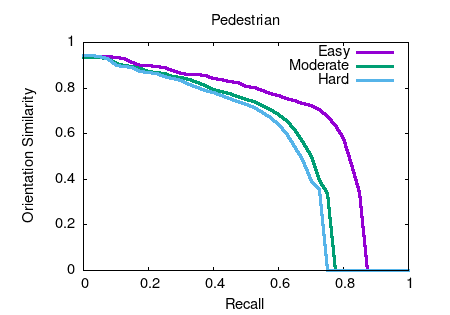

Orientation estimation results.
This figure as: png eps txt gnuplot

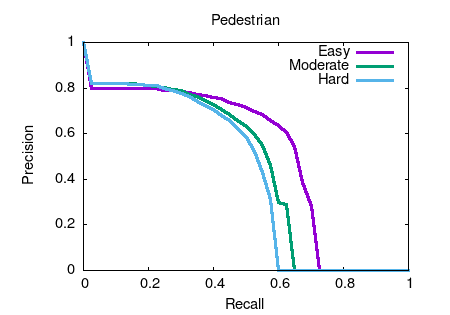

3D object detection results.
This figure as: png eps txt gnuplot

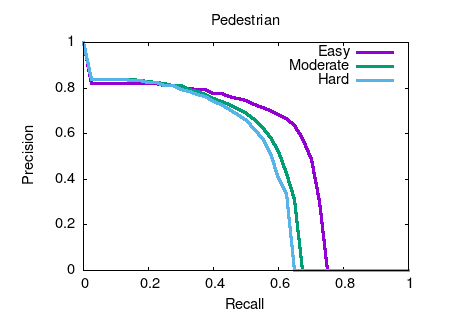

Bird's eye view results.
This figure as: png eps txt gnuplot

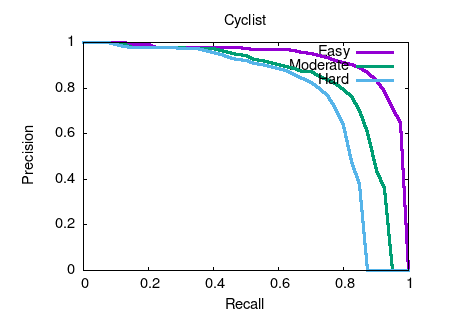

2D object detection results.
This figure as: png eps txt gnuplot

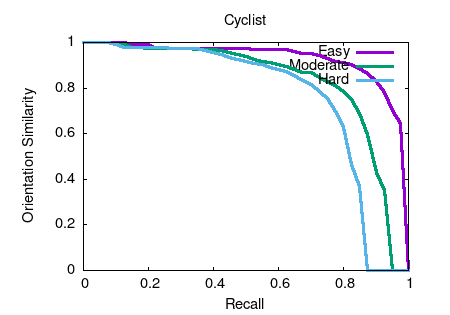

Orientation estimation results.
This figure as: png eps txt gnuplot

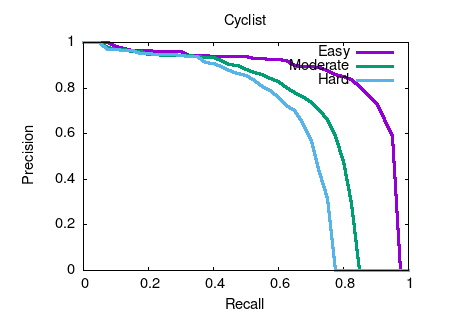

3D object detection results.
This figure as: png eps txt gnuplot

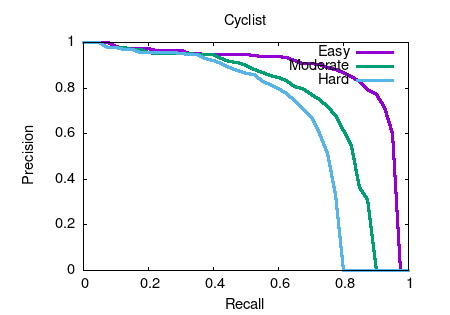

Bird's eye view results.
This figure as: png eps txt gnuplot
