Method

Cross-Attentional Flow Transformer [CRAFT]
https://github.com/askerlee/craft

Submitted on 19 Sep. 2021 18:46 by
Shaohua Li (Institute of High Performance Computing, A*STAR)

Running time:0.2 s
Environment:GPU @ 2.5 Ghz (Python)

Method Description:
cross attention between frames
positional biases
second frame self-attention
Parameters:
cross-frame atttention modes=4
intra-frame atttention modes=4
Latex Bibtex:
@InProceedings{craft,
author="Sui, Xiuchao and Li, Shaohua and Geng, Xue
and Wu, Yan and Xu, Xinxing and Liu, Yong and Goh,
Rick Siow Mong and Zhu, Hongyuan",
title="CRAFT: Cross-Attentional Flow Transformers
for Robust Optical Flow",
booktitle="CVPR",
year="2022"}

Detailed Results

This page provides detailed results for the method(s) selected. For the first 20 test images, the percentage of erroneous pixels is depicted in the table. We use the error metric described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), which considers a pixel to be correctly estimated if the disparity or flow end-point error is <3px or <5% (for scene flow this criterion needs to be fulfilled for both disparity maps and the flow map). Underneath, the left input image, the estimated results and the error maps are shown (for disp_0/disp_1/flow/scene_flow, respectively). The error map uses the log-color scale described in Object Scene Flow for Autonomous Vehicles (CVPR 2015), depicting correct estimates (<3px or <5% error) in blue and wrong estimates in red color tones. Dark regions in the error images denote the occluded pixels which fall outside the image boundaries. The false color maps of the results are scaled to the largest ground truth disparity values / flow magnitudes.

Test Set Average

Error Fl-bg Fl-fg Fl-all
All / All 4.58 5.85 4.79
All / Est 4.58 5.85 4.79
Noc / All 2.87 3.68 3.02
Noc / Est 2.87 3.68 3.02
This table as LaTeX

Test Image 0

Error Fl-bg Fl-fg Fl-all
All / All 2.03 22.80 4.88
All / Est 2.03 22.80 4.88
Noc / All 1.96 22.80 5.12
Noc / Est 1.96 22.80 5.12
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 1

Error Fl-bg Fl-fg Fl-all
All / All 1.73 16.83 3.42
All / Est 1.73 16.83 3.42
Noc / All 1.74 16.83 3.61
Noc / Est 1.74 16.83 3.61
This table as LaTeX

Input Image

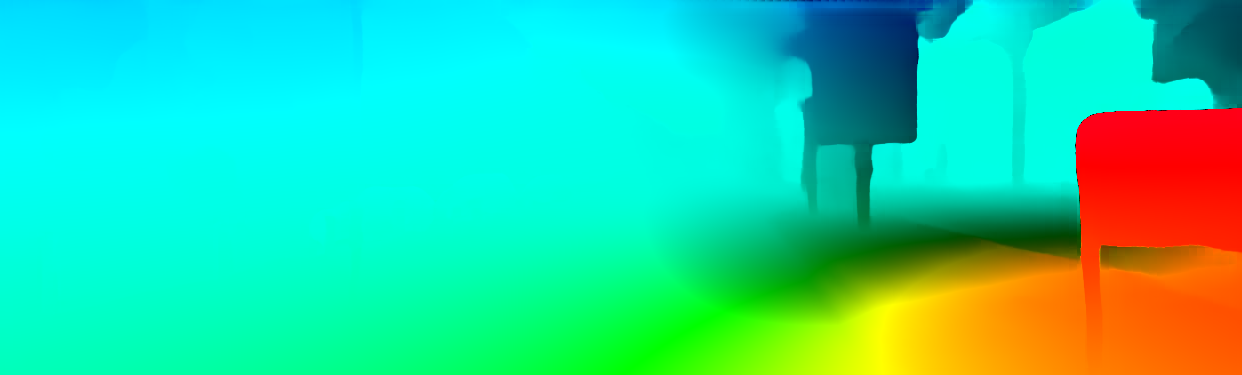

Flow Result

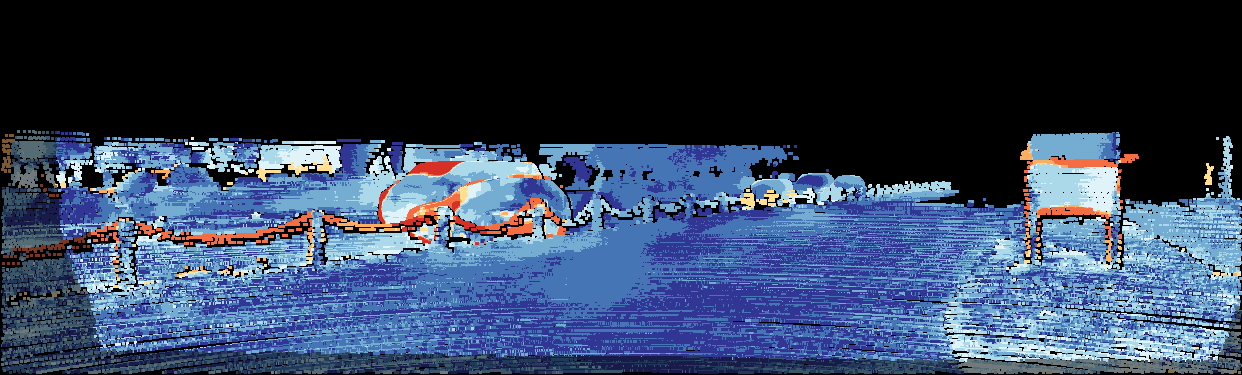

Flow Error


Test Image 2

Error Fl-bg Fl-fg Fl-all
All / All 3.64 21.60 4.52
All / Est 3.64 21.60 4.52
Noc / All 2.78 21.60 3.88
Noc / Est 2.78 21.60 3.88
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 3

Error Fl-bg Fl-fg Fl-all
All / All 6.91 33.93 9.41
All / Est 6.91 33.93 9.41
Noc / All 4.66 12.45 5.33
Noc / Est 4.66 12.45 5.33
This table as LaTeX

Input Image

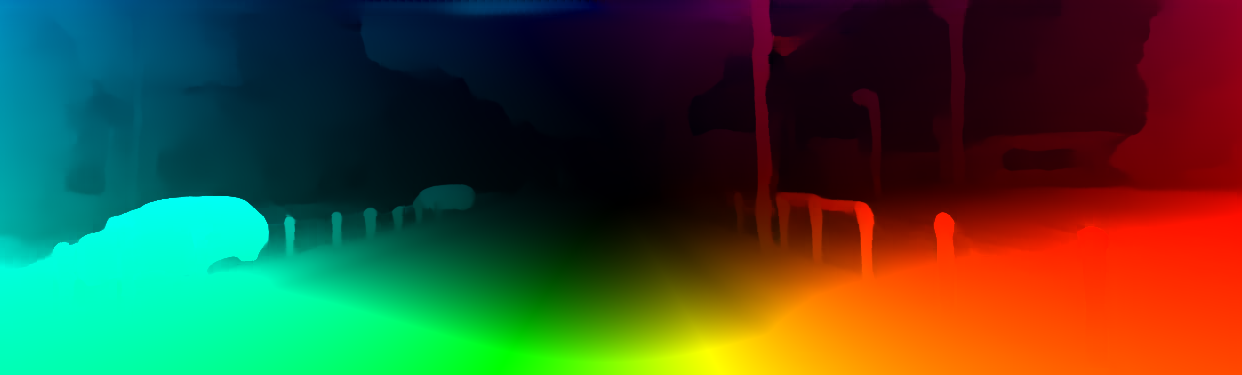

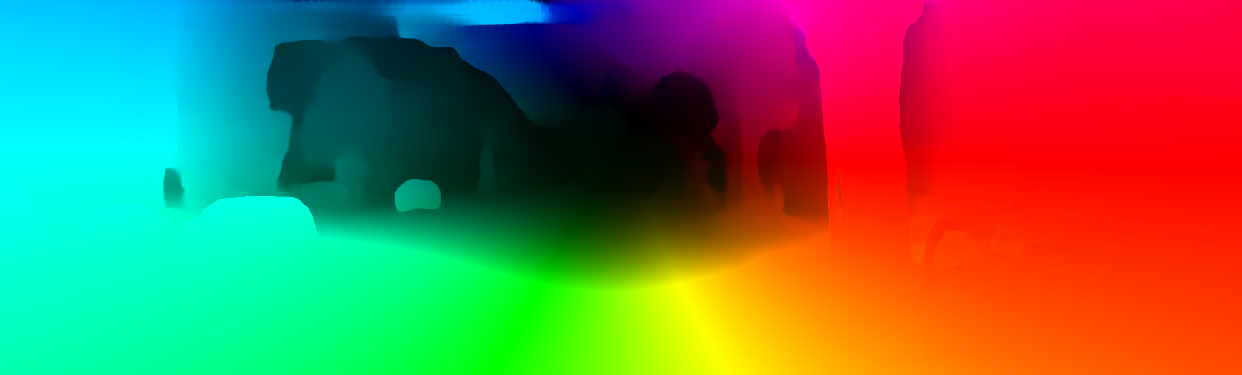

Flow Result

Flow Error


Test Image 4

Error Fl-bg Fl-fg Fl-all
All / All 4.51 7.74 5.05
All / Est 4.51 7.74 5.05
Noc / All 4.67 6.55 5.02
Noc / Est 4.67 6.55 5.02
This table as LaTeX

Input Image

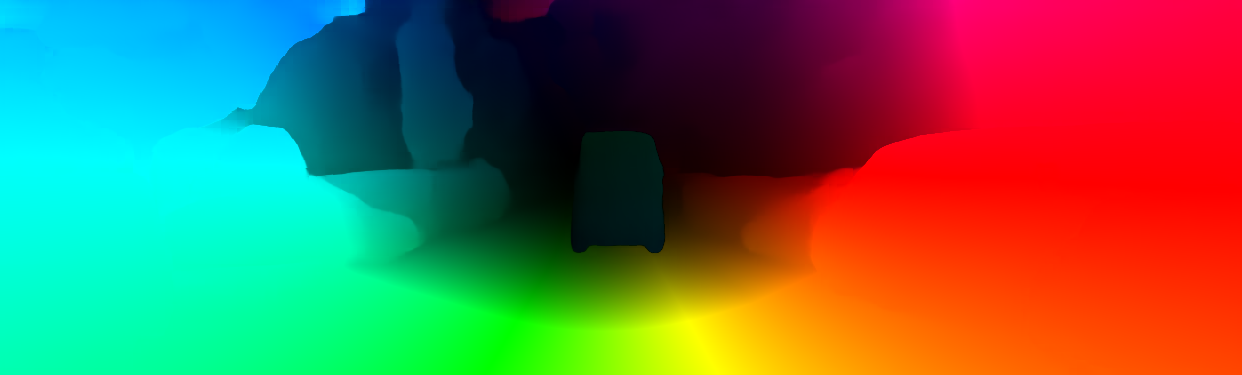

Flow Result

Flow Error


Test Image 5

Error Fl-bg Fl-fg Fl-all
All / All 1.86 0.02 1.69
All / Est 1.86 0.02 1.69
Noc / All 1.83 0.02 1.64
Noc / Est 1.83 0.02 1.64
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 6

Error Fl-bg Fl-fg Fl-all
All / All 4.20 0.73 3.83
All / Est 4.20 0.73 3.83
Noc / All 2.17 0.73 2.00
Noc / Est 2.17 0.73 2.00
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 7

Error Fl-bg Fl-fg Fl-all
All / All 1.16 3.32 1.59
All / Est 1.16 3.32 1.59
Noc / All 1.16 3.39 1.58
Noc / Est 1.16 3.39 1.58
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 8

Error Fl-bg Fl-fg Fl-all
All / All 0.11 3.02 0.65
All / Est 0.11 3.02 0.65
Noc / All 0.11 3.02 0.65
Noc / Est 0.11 3.02 0.65
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 9

Error Fl-bg Fl-fg Fl-all
All / All 0.29 2.88 0.95
All / Est 0.29 2.88 0.95
Noc / All 0.29 2.88 0.95
Noc / Est 0.29 2.88 0.95
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 10

Error Fl-bg Fl-fg Fl-all
All / All 0.93 3.70 1.56
All / Est 0.93 3.70 1.56
Noc / All 1.03 3.70 1.72
Noc / Est 1.03 3.70 1.72
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 11

Error Fl-bg Fl-fg Fl-all
All / All 1.70 1.28 1.63
All / Est 1.70 1.28 1.63
Noc / All 1.70 1.28 1.61
Noc / Est 1.70 1.28 1.61
This table as LaTeX

Input Image

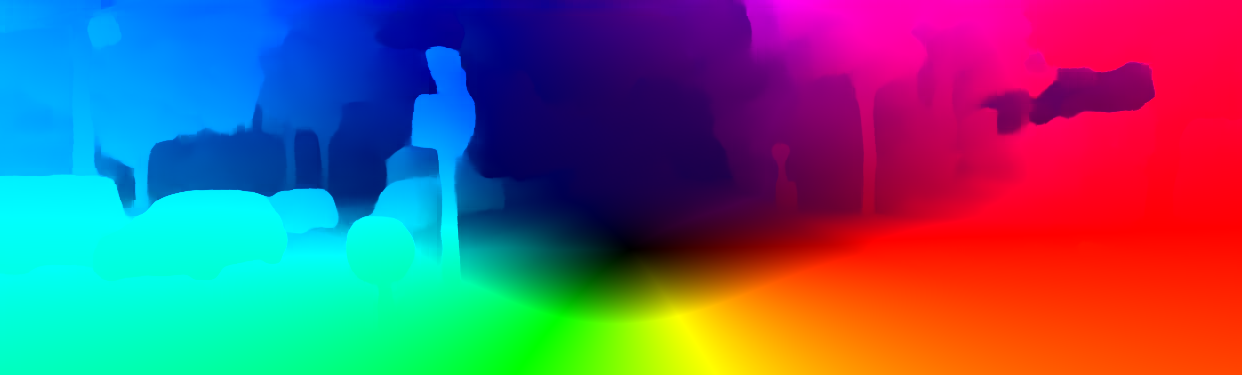

Flow Result

Flow Error


Test Image 12

Error Fl-bg Fl-fg Fl-all
All / All 1.71 0.92 1.66
All / Est 1.71 0.92 1.66
Noc / All 1.12 0.92 1.10
Noc / Est 1.12 0.92 1.10
This table as LaTeX

Input Image

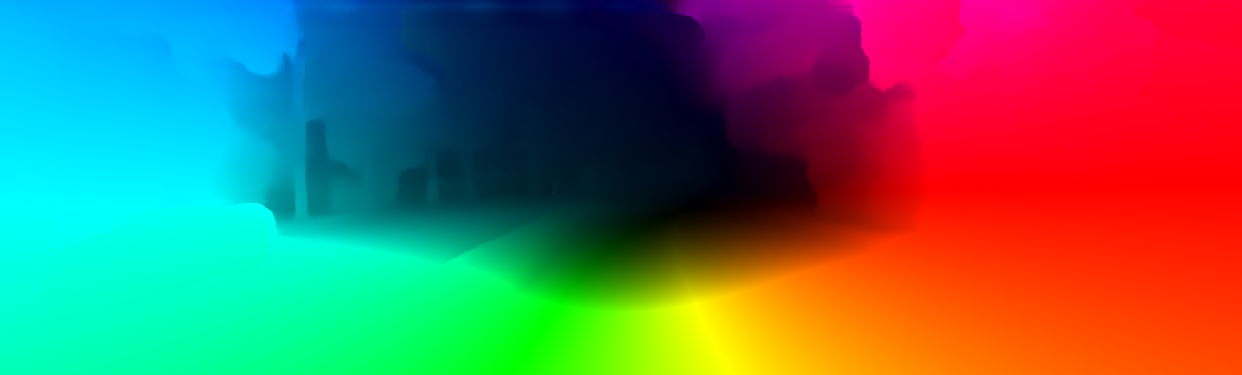

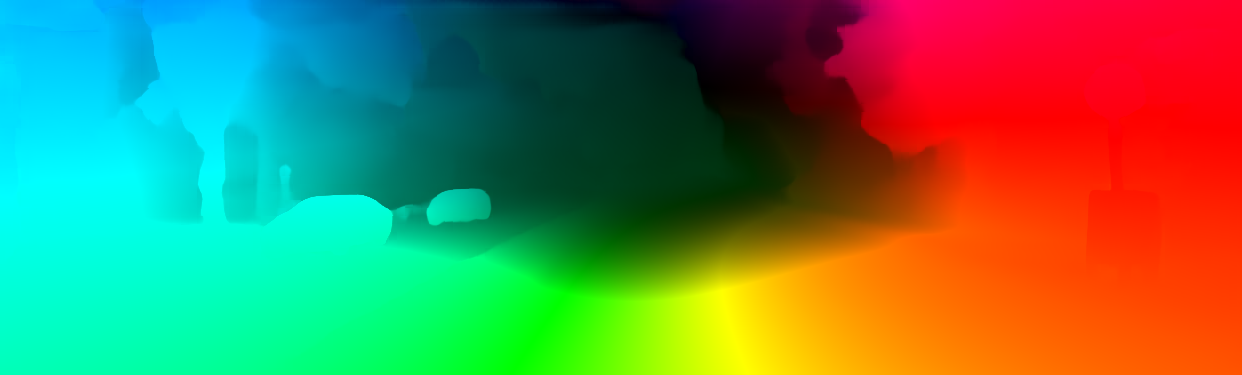

Flow Result

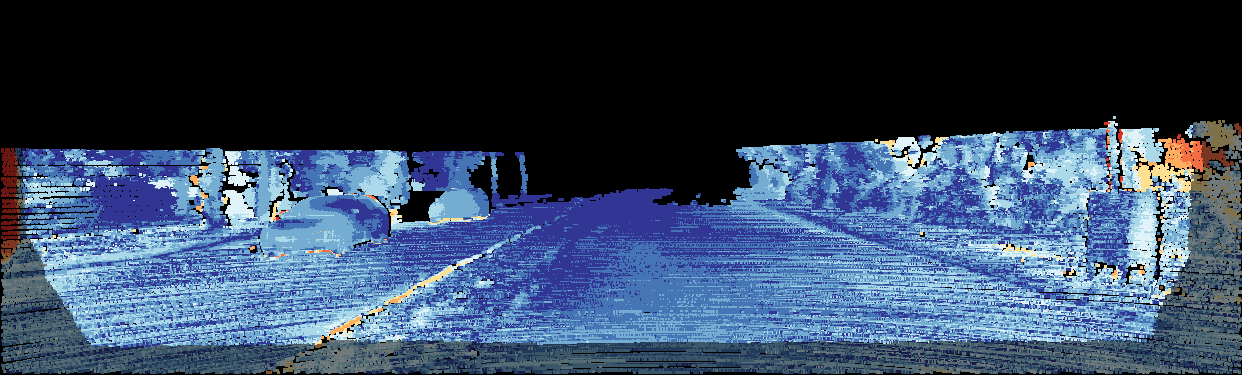

Flow Error


Test Image 13

Error Fl-bg Fl-fg Fl-all
All / All 2.91 1.35 2.72
All / Est 2.91 1.35 2.72
Noc / All 1.33 0.76 1.26
Noc / Est 1.33 0.76 1.26
This table as LaTeX

Input Image

Flow Result

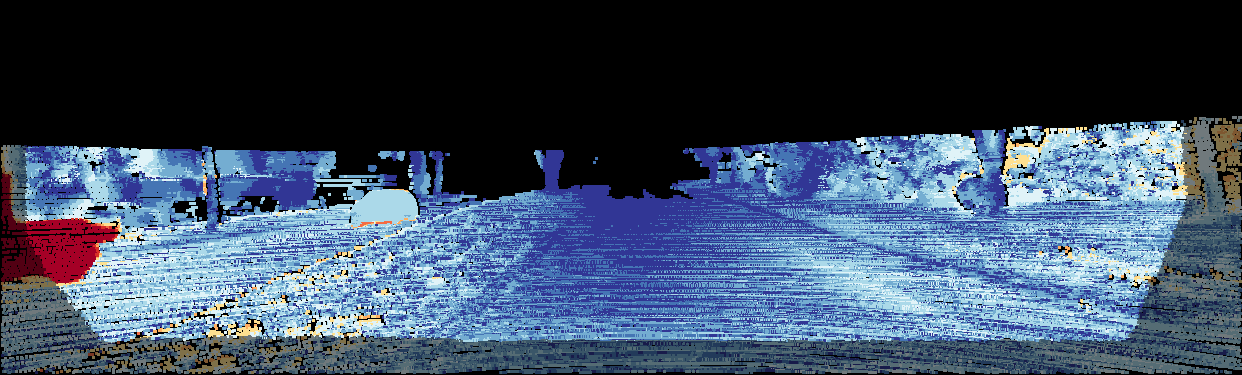

Flow Error


Test Image 14

Error Fl-bg Fl-fg Fl-all
All / All 2.87 1.91 2.85
All / Est 2.87 1.91 2.85
Noc / All 1.85 1.91 1.85
Noc / Est 1.85 1.91 1.85
This table as LaTeX

Input Image

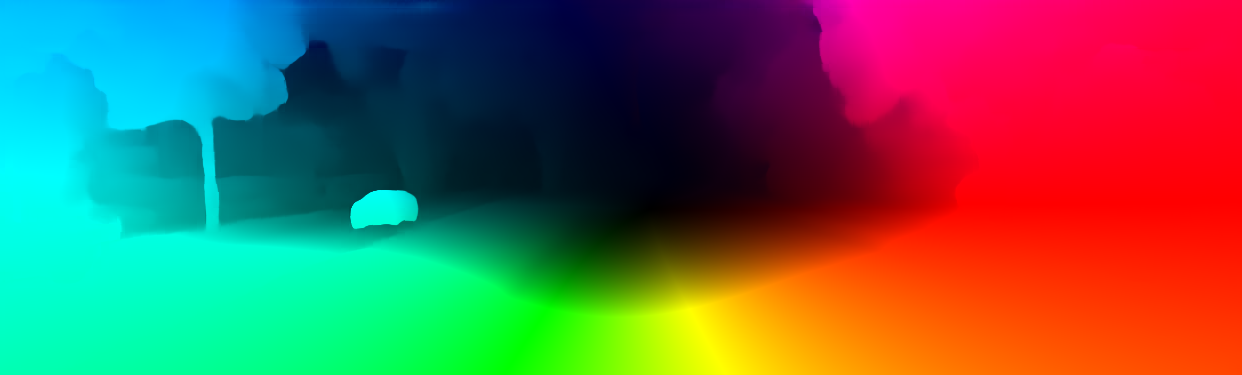

Flow Result

Flow Error


Test Image 15

Error Fl-bg Fl-fg Fl-all
All / All 9.56 2.79 8.95
All / Est 9.56 2.79 8.95
Noc / All 7.70 2.79 7.14
Noc / Est 7.70 2.79 7.14
This table as LaTeX

Input Image

Flow Result

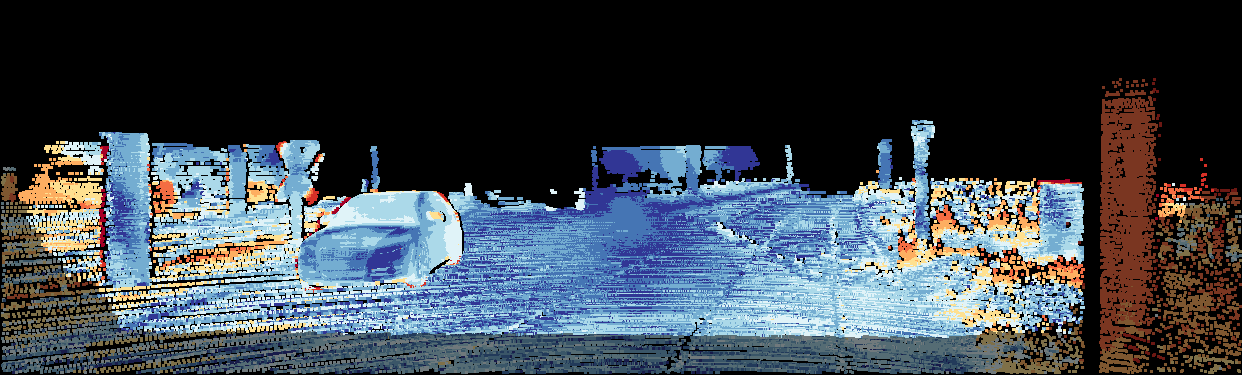

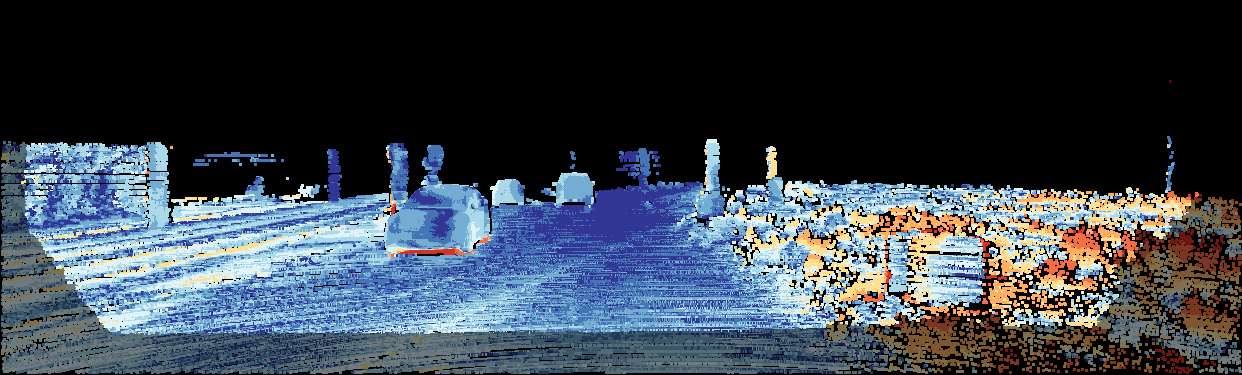

Flow Error


Test Image 16

Error Fl-bg Fl-fg Fl-all
All / All 12.89 1.97 11.29
All / Est 12.89 1.97 11.29
Noc / All 6.72 1.97 5.87
Noc / Est 6.72 1.97 5.87
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 17

Error Fl-bg Fl-fg Fl-all
All / All 5.29 1.77 4.92
All / Est 5.29 1.77 4.92
Noc / All 4.42 1.77 4.08
Noc / Est 4.42 1.77 4.08
This table as LaTeX

Input Image

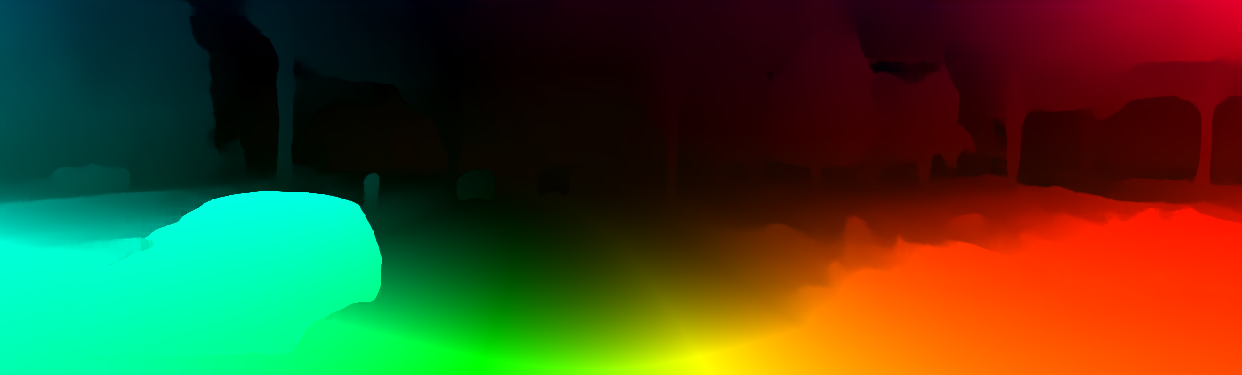

Flow Result

Flow Error


Test Image 18

Error Fl-bg Fl-fg Fl-all
All / All 16.22 99.95 56.00
All / Est 16.22 99.95 56.00
Noc / All 10.08 99.84 34.83
Noc / Est 10.08 99.84 34.83
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 19

Error Fl-bg Fl-fg Fl-all
All / All 3.24 2.01 3.10
All / Est 3.24 2.01 3.10
Noc / All 3.00 2.01 2.86
Noc / Est 3.00 2.01 2.86
This table as LaTeX

Input Image

Flow Result

Flow Error
